4-2 User Interface Overview
4-2-2 Datalink Component

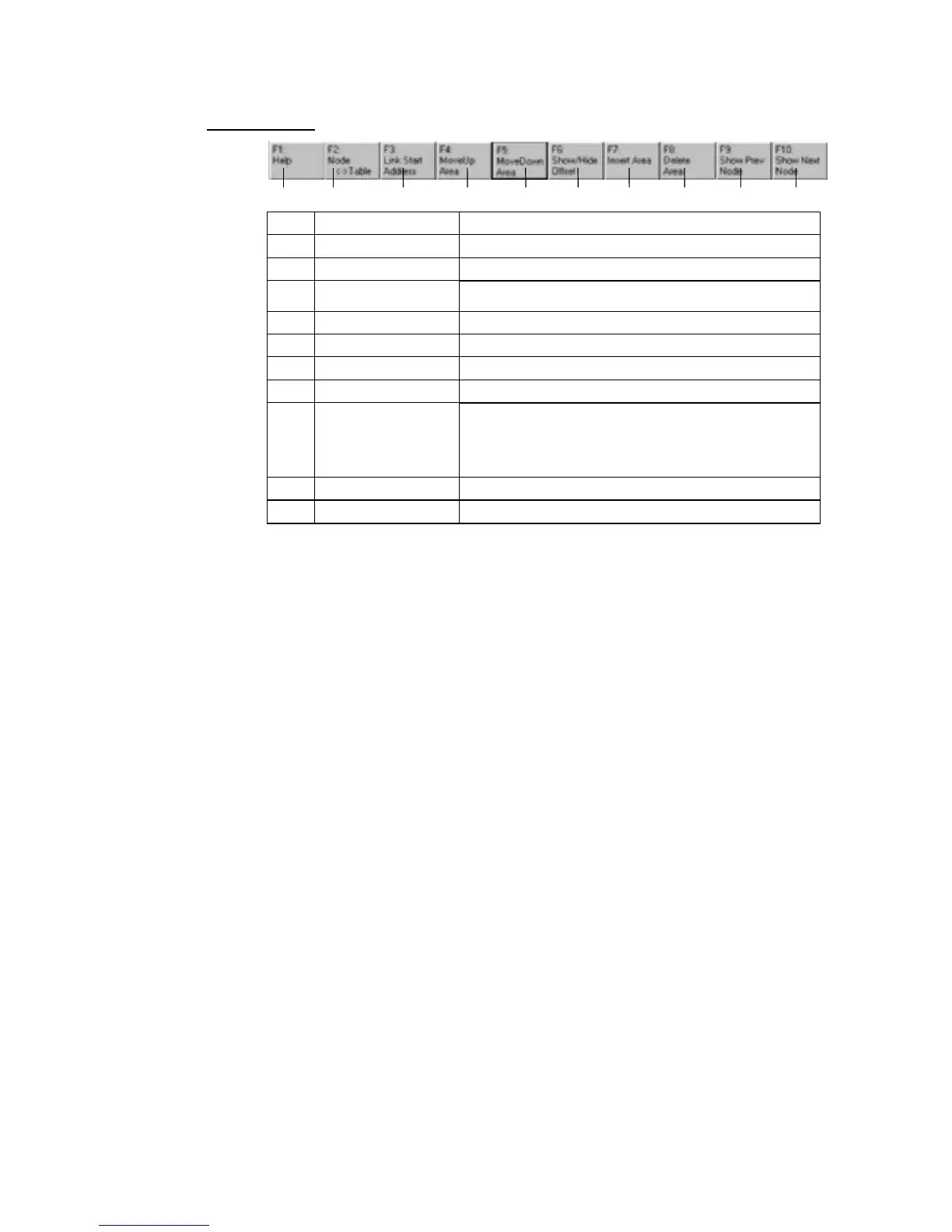

Function Bar
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
No. Icon Function
(1) F1: Help Displays help.
(2) F2: Node<->Table Moves the focus between nodes and tables.
(3) F3: Link Start Address Moves the focus between settings for the link start addresses
(status, Area 1, Area 2).
(4) F4: Move Up Area Moves a node up the node refresh sequence.
(5) F5: Move Down Area Moves a node down the node refresh sequence.
(6) F6: Show/Hide Offset Shows or hides the offset for the node being displayed.
(7) F7: Insert Area Inserts a new receive area (new node).
(8) F8: Delete Node Deletes a node or communications area.
To delete a node or link area from a node list, select the item
from the list and then click F8: Delete Node.
To delete a node or link area from a table, select the item from
the table and then click F8: Delete Node.
(9) F9: Show Prev Node Shows the previous node.
(10) F10: Show Next Node Shows the next node.
4-7
