4-3 Manually Setting Data Links
4-3-4 Creating Data Link Tables Offline

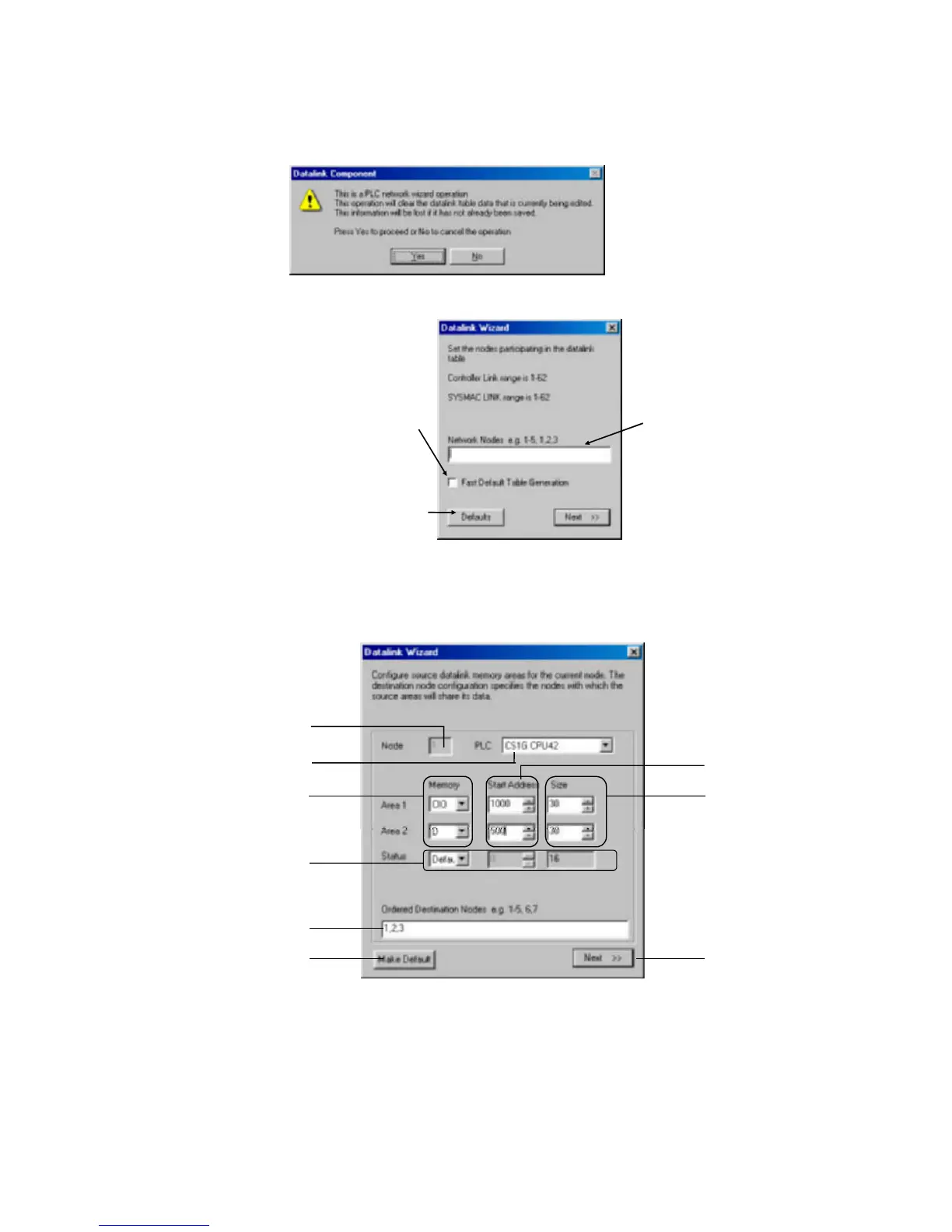

3 Select Table - Wizard. If data link tables have already been input, the following
dialog box will be displayed. (It will not be displayed if these are the first data link
tables being created.)
4 Click the Yes Button. The Datalink Wizard Dialog Box will be displayed for setting
the participating data link nodes.
Addresses of nodes to
participate in the data links.
If this box is selected, fast
default table generation will
be set when the Defaults
button is clicked. In that case,
all nodes will be set as a
group, using the initial values
that have been set.
Clicking the Defaults button
sets the initial values used for
fast default table generation.
5 Set the addresses of the nodes that are to participate in the data links. In this case,
input 1-3 to set node addresses 01 to 03. (To set node addresses 01, 02, and 04,
for example, input 1,2,4.)
6 Click the Next Button or press the Enter key. The following dialog box will be
displayed.
(1)
(2)
(3)
(6)
(4)
(5)
(7)
(8) (9)
4-13
To Next Page
