6-2 Setting Slave Parameters
6-2-2 Checking and Setting I/O Size
6-2-2 Checking and Setting I/O Size
Checking I/O Size

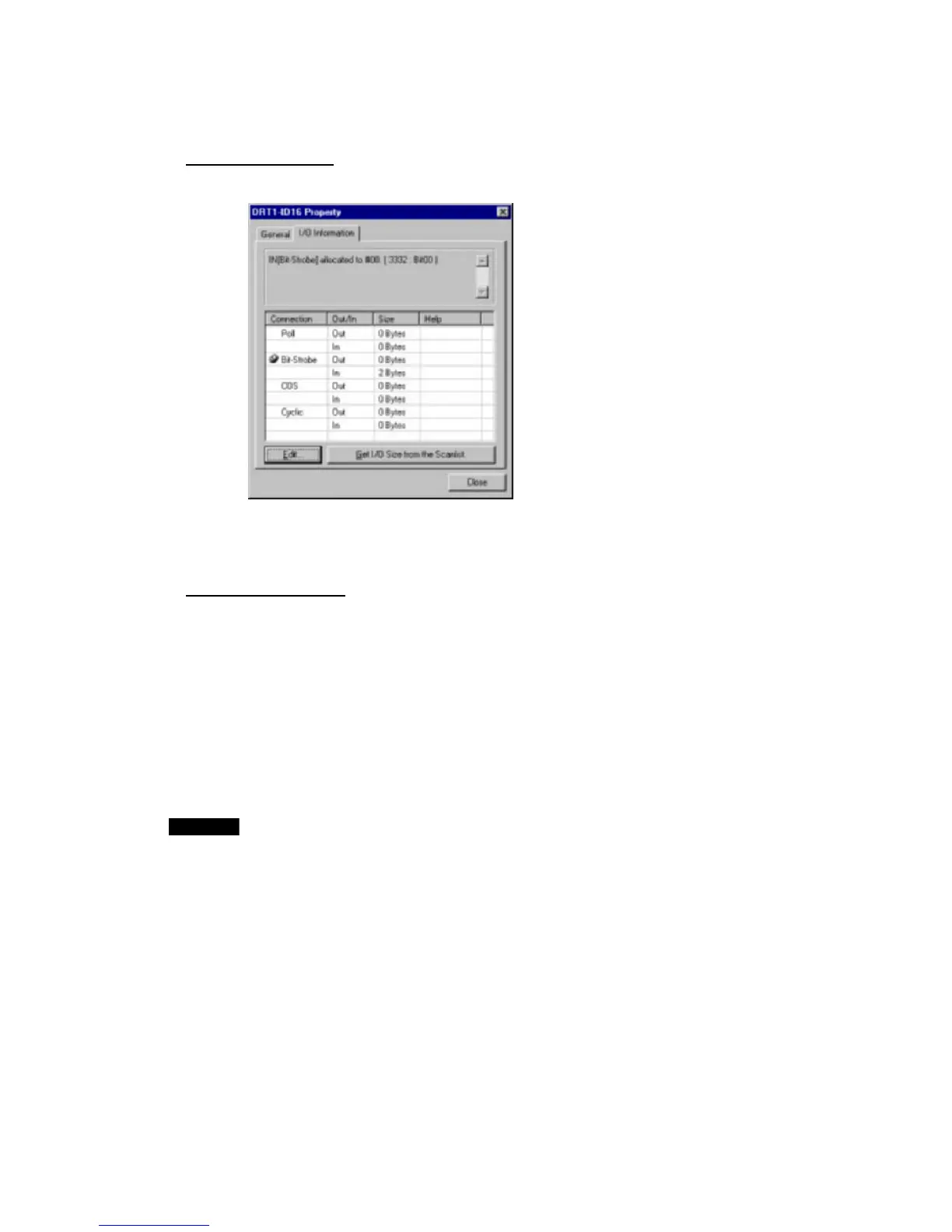

View - Property - I/O Information
The I/O size of this slave can be checked with the I/O Information Tab Page of the
Property Window. Check to make sure that the I/O size listed is correct. To change it,
use the following procedure.
Setting the I/O Size
For slaves in which the I/O size can be changed by switches, or by tools other than the
CX-Integrator, the CX-Integrator cannot be used to confirm that the I/O size is correct.
For these slaves, use the following procedure to directly input the I/O size.
1. Select the desired slave, then select View - Property.
2. Click the I/O Information Tab.
3. Click the Edit Button. The Edit I/O Size Dialog Box will be displayed.
4. Input the correct I/O size for each connection. If the connection is not known, input
the correct I/O size in the Poll settings.
5. Click the OK Button.
Note
The following are OMRON slaves.
• DRT1-AD04 Analog Input Terminal
Input (4-word/2-word) can be changed by DIP switch.
• GT1-AD08MX Analog Input Unit for MULTIPLE I/O TERMINAL.
Input (8-word/4-word) can be changed by DIP switch.
• NT-DRT21 Programmable Terminal DeviceNet Interface Unit
The I/O data area can be set from 1 to 64 words with the PT system menu.
• E3X-DRT21 Fiber Amplifier Communications Unit
Status and light levels can be added to input data.
Use the same kind of input procedure for slaves of other manufacturers that allow the
I/O size to be changed.
