6-9 Advanced Settings (Connection, Communication Cycle Time, Slave Function
Settings, Etc.)
6-9-4 Slave Function Settings
6-9-4 Slave Function Settings
Component - Parameter - Edit - Slave Function Tab
Note: This procedure is supported for the CS1W-DRM21(-V1) and CJ1W-DRM21 only.
The slave function is enabled through settings made in the Slave Function Tab Page.
Note
To enable the slave function with the CS1W-DRM21(-V1) or CJ1W-DRM21, select the
device first, and then select Device – Property, and select Enable slave Function in
the CS1W-DRM21(-V1) or CJ1W-DRM21 Properties Dialog Box.
To set the slave function, use the following procedure.
1. Click the Slave Function Tab.

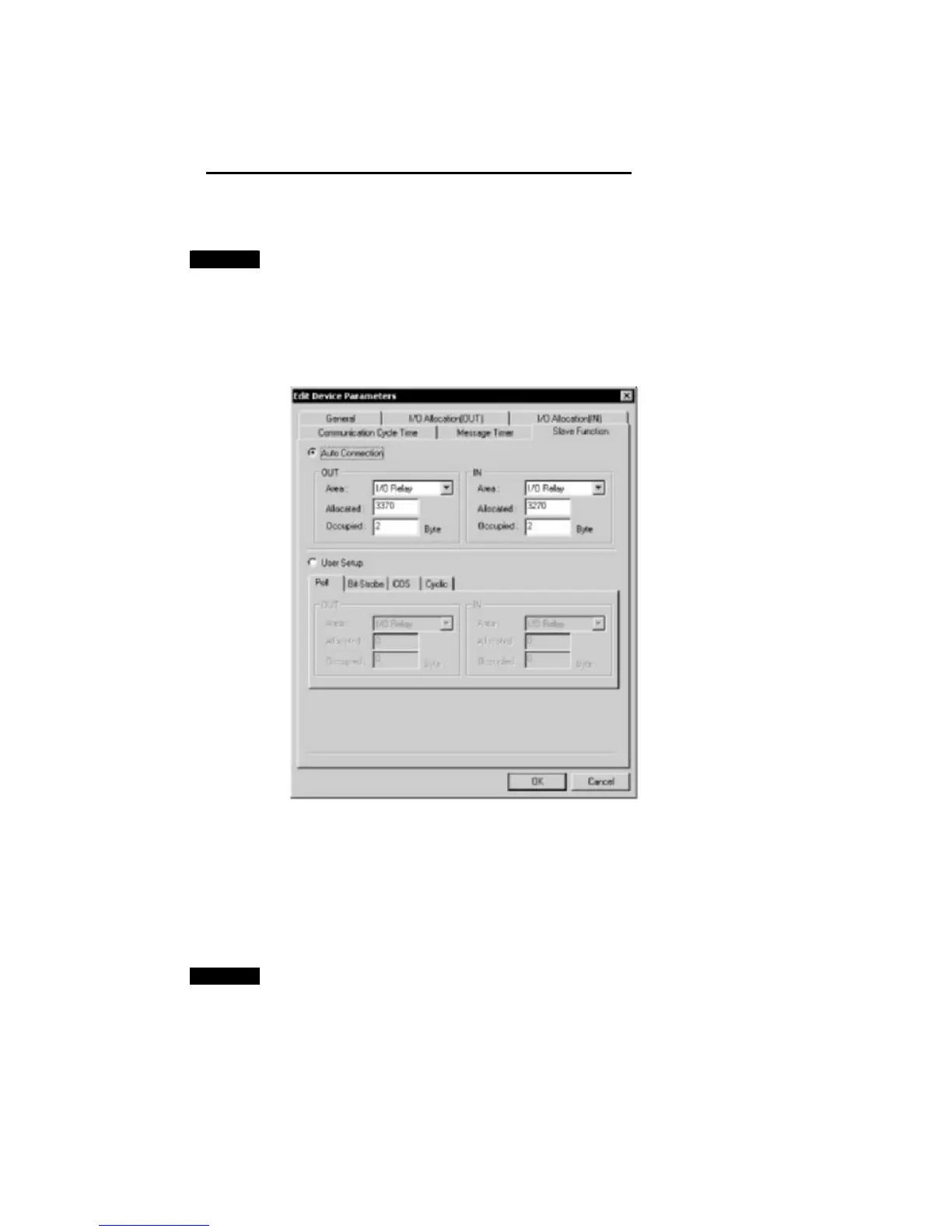

The following dialog box will be displayed.
2. Specify the connections.
Automatic settings are by default set. If the user specifies the connections, click the
User Setup Button.
3. Set the output and input areas used for remote I/O communications.
Set each area type for IN (the slave to the master) and OUT (the master to the
slave), start words, and allocated sizes.
If the user’s connections settings are used, make all connections settings.
Up to two connections can be set.
Note
• Both COS and Cyclic settings cannot be made at the same time.
• If Poll and COS settings or Poll and Cyclic settings are used in combination, check
that the OUT settings of the both connections are the same.
6-41
