6-13 Uploading and Verifying Device Parameters
6-13-2 Uploading Device Parameters

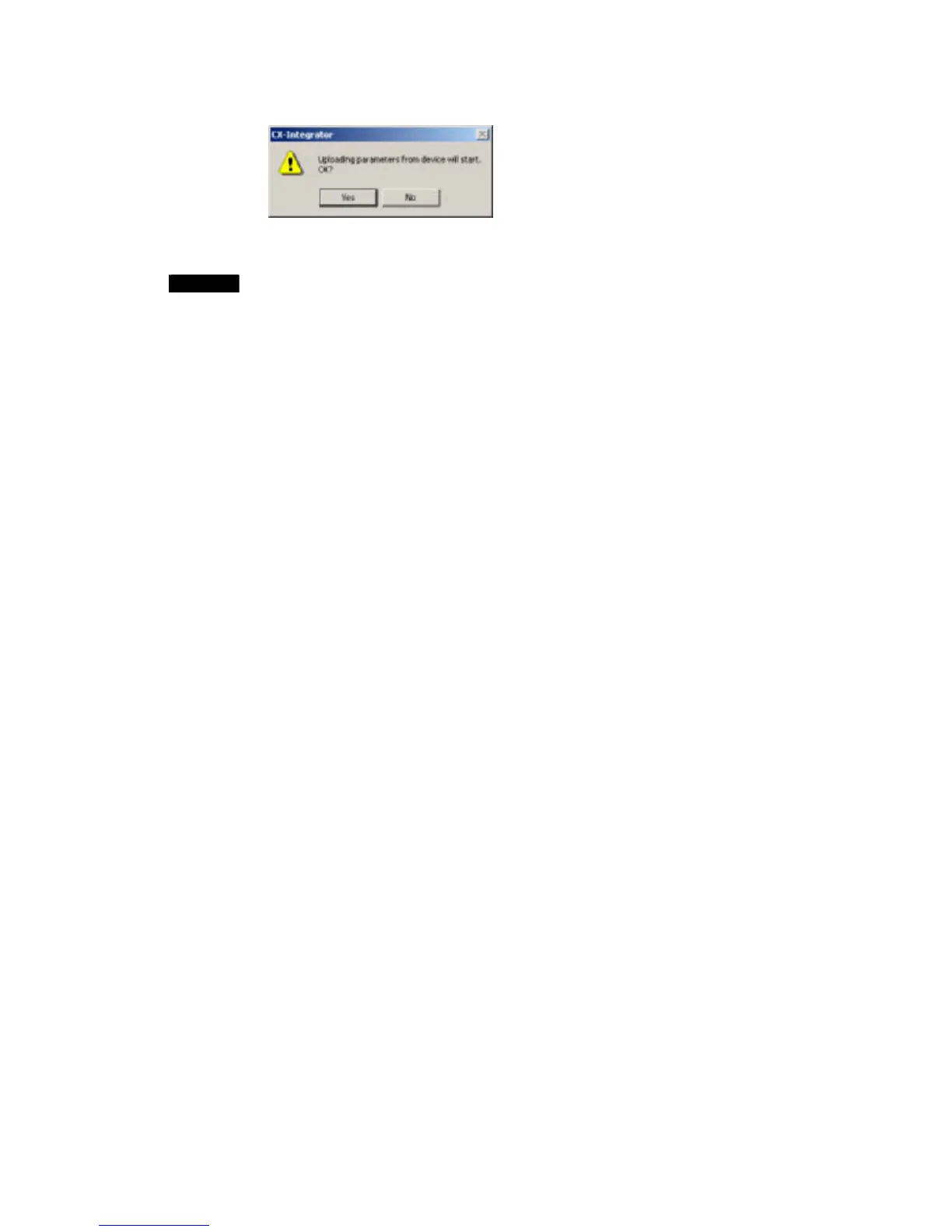

The following confirmation dialog box will be displayed.
4. Click the Yes Button.
The progress dialog box will be displayed and the parameters will be uploaded.
Note
•The uploaded parameters will be discarded if the No Button is clicked to quit the Edit
Device Parameters Dialog Box after the parameters have been uploaded.
•When parameters are uploaded from the Network Configuration Window, an asterisk
may be display to the lower left of some devices. This indicates that the I/O size of the
device is not consistent with the I/O size in the scan list in the Master Unit. Either
select View - Property, click the I/O Information Tab, click the Edit Button, and
correct the I/O size, or click the Get from Scan List Button and correct the I/O size. If
the I/O size registered in the scan list is incorrect, correct the I/O size for the device in
the Edit Device Parameter Dialog Box.
6-58
