6-13 Uploading and Verifying Device Parameters
6-13-3 Verifying the Network Configuration
6-13-3 Verifying the Network Configuration
Use the following procedure to compare the actual network configuration with the
network configuration created on the CX-Integrator.
1. Select the Network Configuration Window to be verified.
2. Select Network - Compare.
The progress window will be displayed and the comparison will begin.

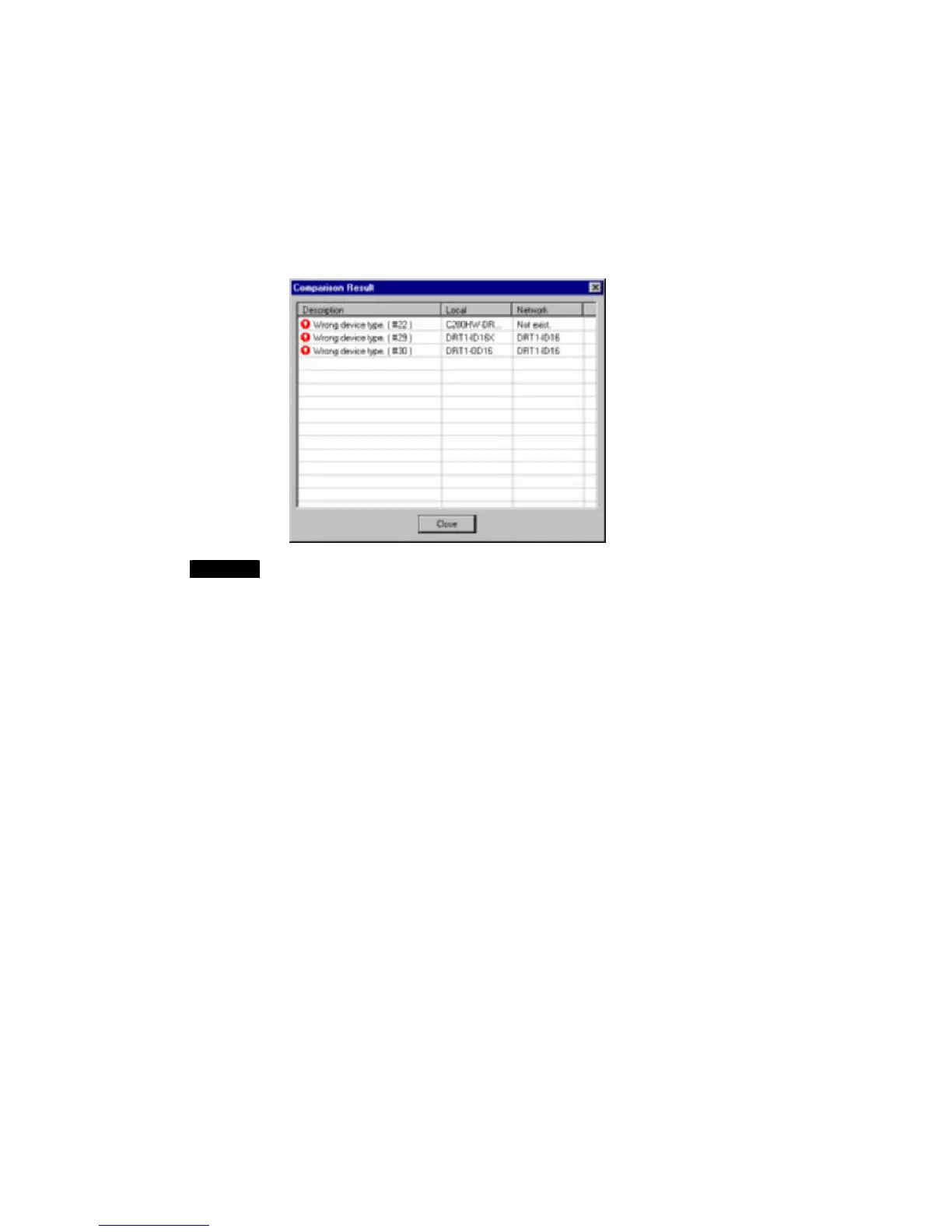

3. If there are any comparison errors, the following dialog box with the details of the
errors will be displayed.
Note
This function compares only the network configurations. It does not compare the
parameters of each device.
6-59
