6-14 Monitoring Devices
6-14-2 Monitoring Devices
Status Tab Page

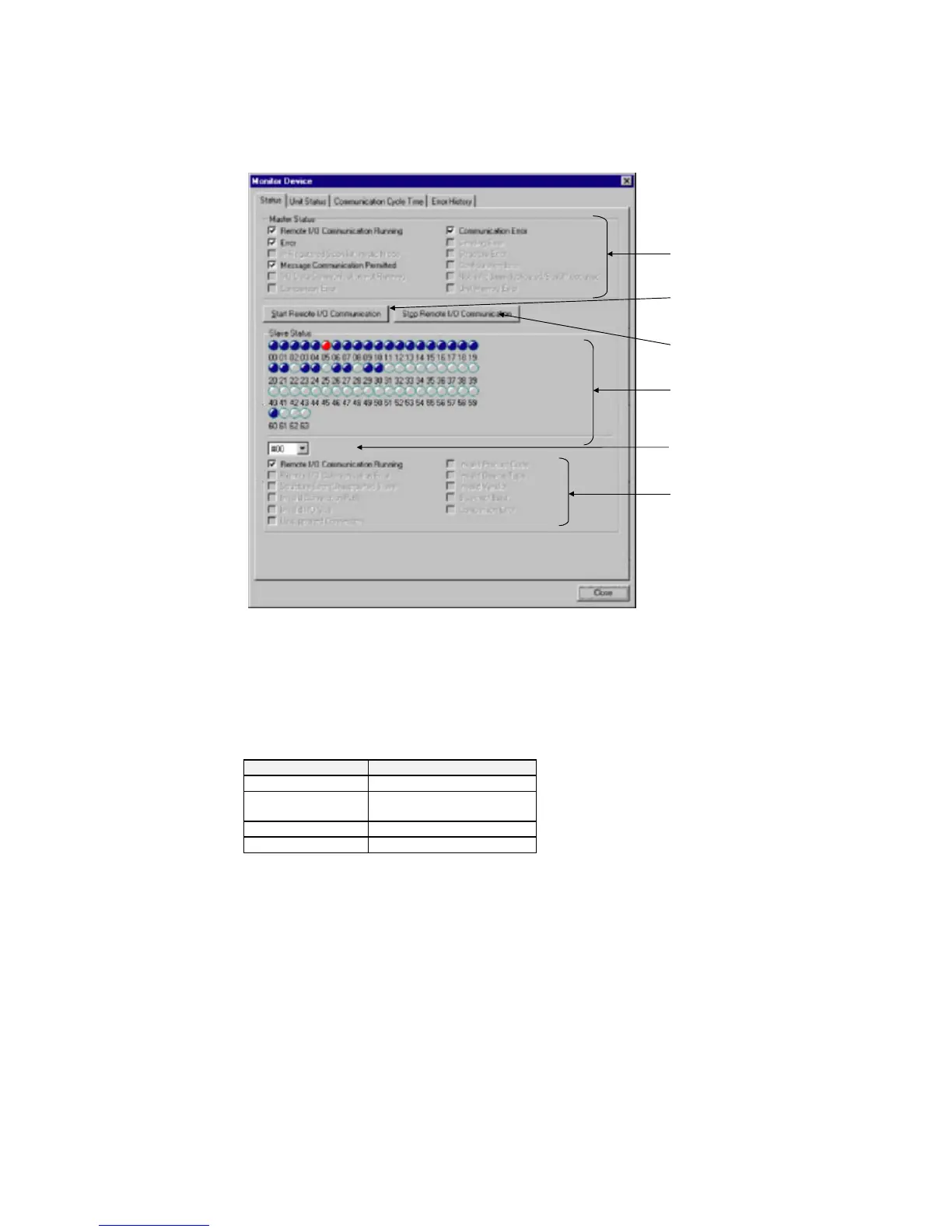

The Status Tab Page displays the status of the master and slaves in remote I/O
communications.
Master status
Starts remote I/O
Stops remote I/O
communications.
Slave status
Detailed slave status
Node address for detailed
slave status
Remote I/O communications between the master and slaves can be started or stopped
by clicking the Start Remote I/O Communication or Stop Remote I/O
Communication Button.
The slave status indicators change according to the status of the slaves as shown
below.
Indicator Status
Gray Device not registered
Green I/O communications
stopped
Blue In normal communications
Red Communications error
To monitor the detailed status of another slave device, select the corresponding node
address.
