7-2 CompoWay/F Slaves Connected to a PLC
7-2-2 Setting the CompoWay/F Slave’s Parameters
7-2-2 Setting the CompoWay/F Slave’s Parameters
The following procedure applies to a CompoWay/F Slave that is connected to a PLC.
Use this procedure to set the parameters of the CompoWay/F Slave after the node’s
parameters have been uploaded to the computer (CX-Integrator).
Temperature Controller

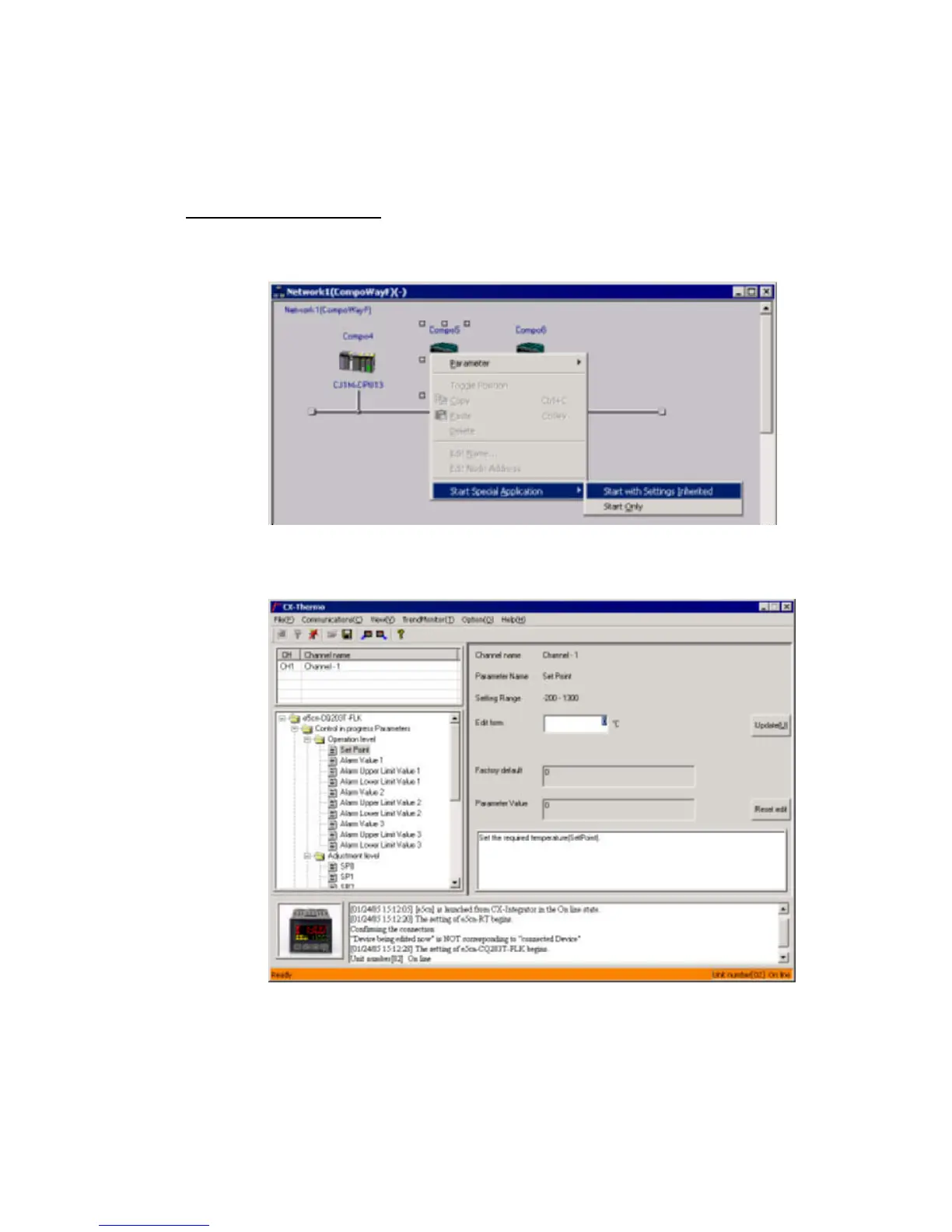

1. Right-click the icon of the Temperature Controller (an E5CN in this example) in the
Network Configuration Window and select Start Special Application – Start with
Settings Inherited.
2. The CX-Thermo application will receive the Temperature Controller model number
and start.
After the parameter settings are completed, download the set values to the E5CN.
7-8
