7-2 CompoWay/F Slaves Connected to a PLC
7-2-2 Setting the CompoWay/F Slave’s Parameters
Note

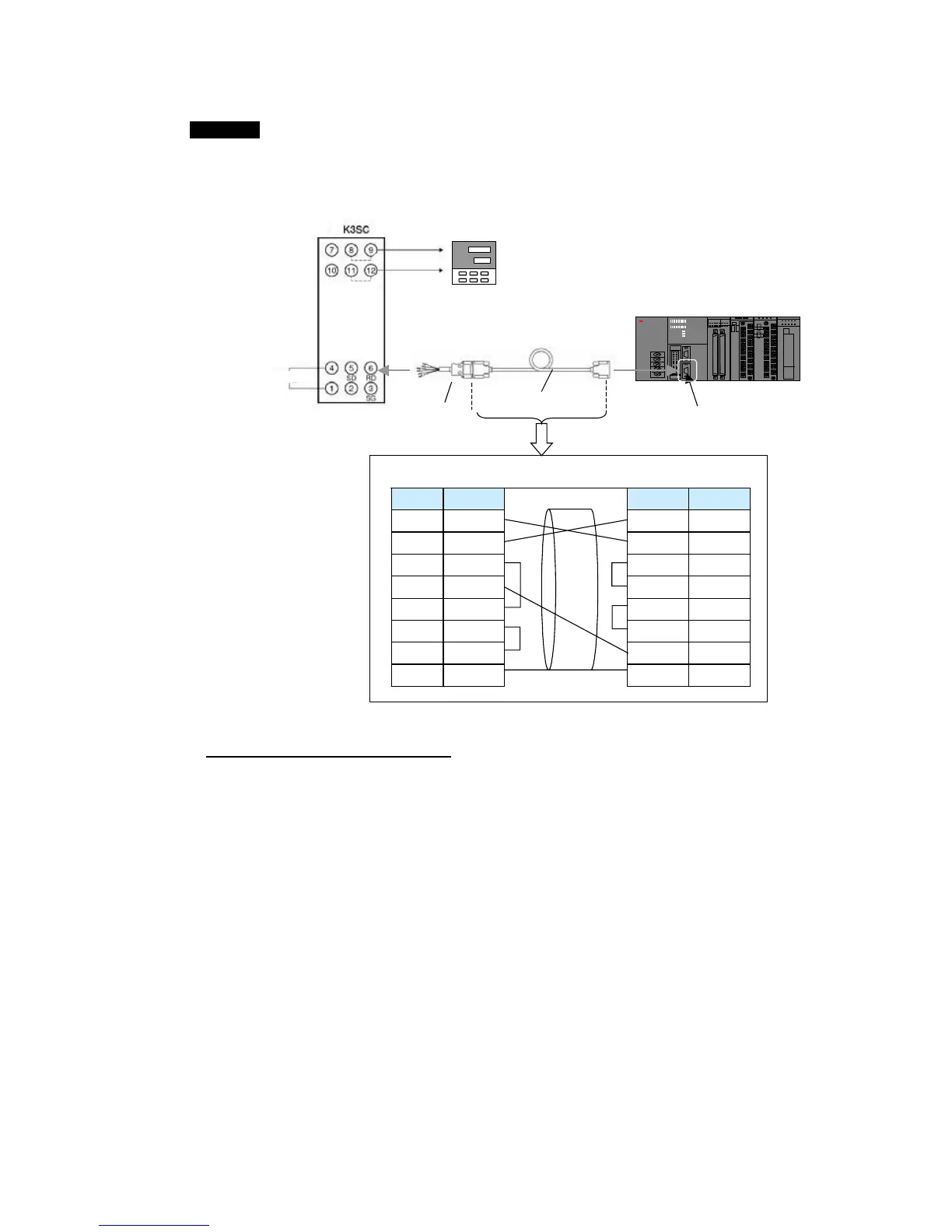

When a K3SC Serial Converter is connected to the PLC’s RS-232C port and a
Temperature Controller is connected to the K3SC by RS-485, make an RS-232C cable
with the following wiring to connect the PLC’s RS-232C port to the K32-23209
Attachment Adapter.
RS-485
RS-232C Port
RS-232C Cable
Attachment
adapter
K32-23209
CS/CJ Series PLC
Temperature Controller
To attachment adapter To PLC
In
ut Power
Signal Pin No. Signal Pin No.
RD 2 2 SD
SD 3 3 RD
ER 4 4 RS
SG 5 5 CS
DR 6 7 DR
RS 7 8 ER
CS 8 9 SG
FG - - FG
Procedure for Smart Sensors
1. Right-click Smart Sensor in the Network Configuration Window and select
Parameter – Edit.
2. The Edit Parameters Dialog Box will be displayed.
After setting the parameters, select Transfer [PC to Unit] to download the settings
to the Smart Sensor.
7-9
