8-1 NT Link Connection Auto-detect Function
8-1-2 Procedure

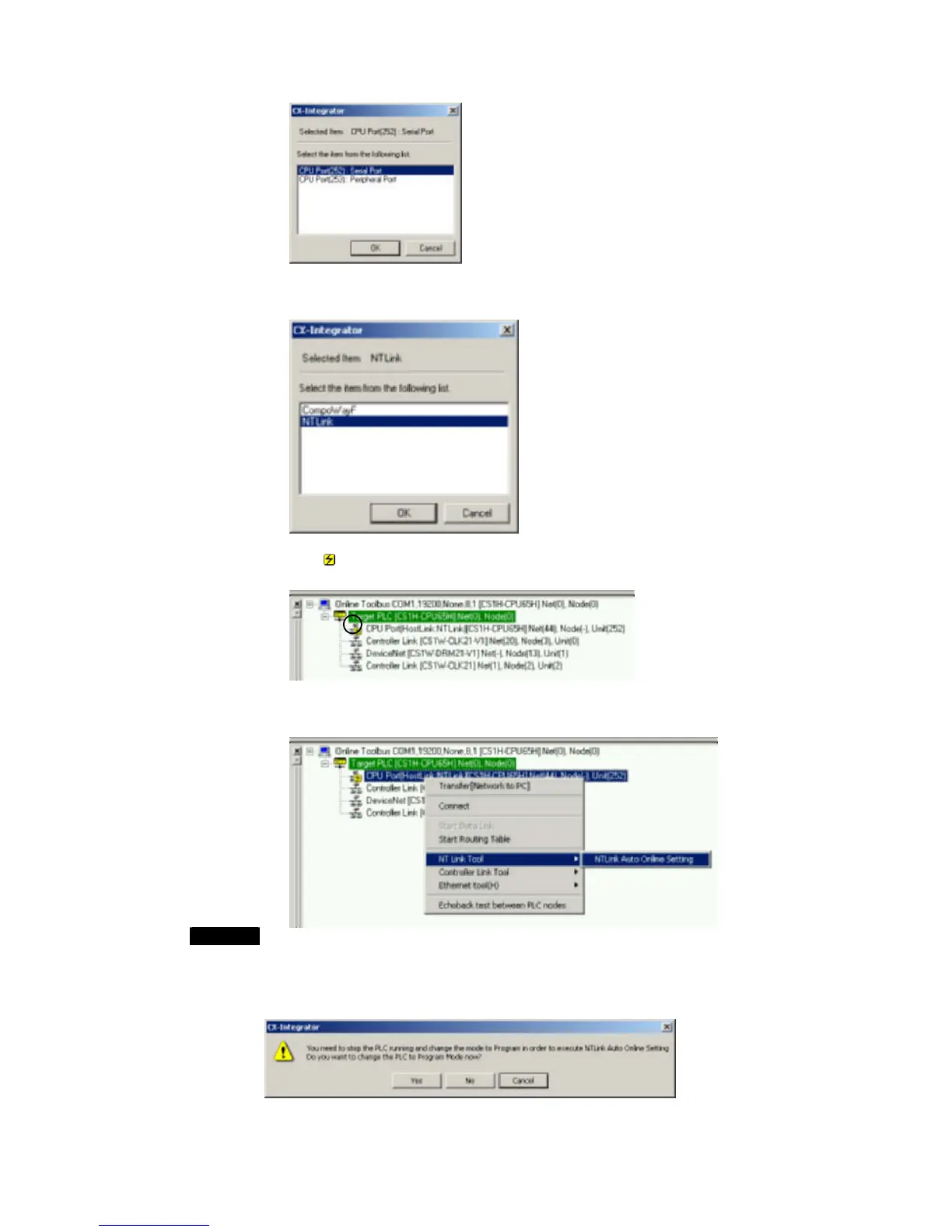

3. A dialog box will be displayed to select the communications protocol.
Select NTLink and click the OK Button.
4. The
icon will be displayed next to the CPU Unit’s RS-232C port to indicate that
the port can be accessed with NT Link protocol.
5. Right-click the CPU Unit in the Online Information Window and select NT Link
Tool – NTLink Auto Online Setting.
Note
If the PLC is operating, the following warning dialog box will be displayed.
Check the system to be sure that it is safe to change the PLC’s operating mode to
PROGRAM mode and click the Yes Button.
If the mode is changed to PROGRAM mode, the PLC will stop operating so be sure
that it is all right for the PLC to stop operating.
8-3
