9-1 Controller Link Network Diagnostic Tool
9-1-2 Diagnosing Network Status
Diagnosing Network Status

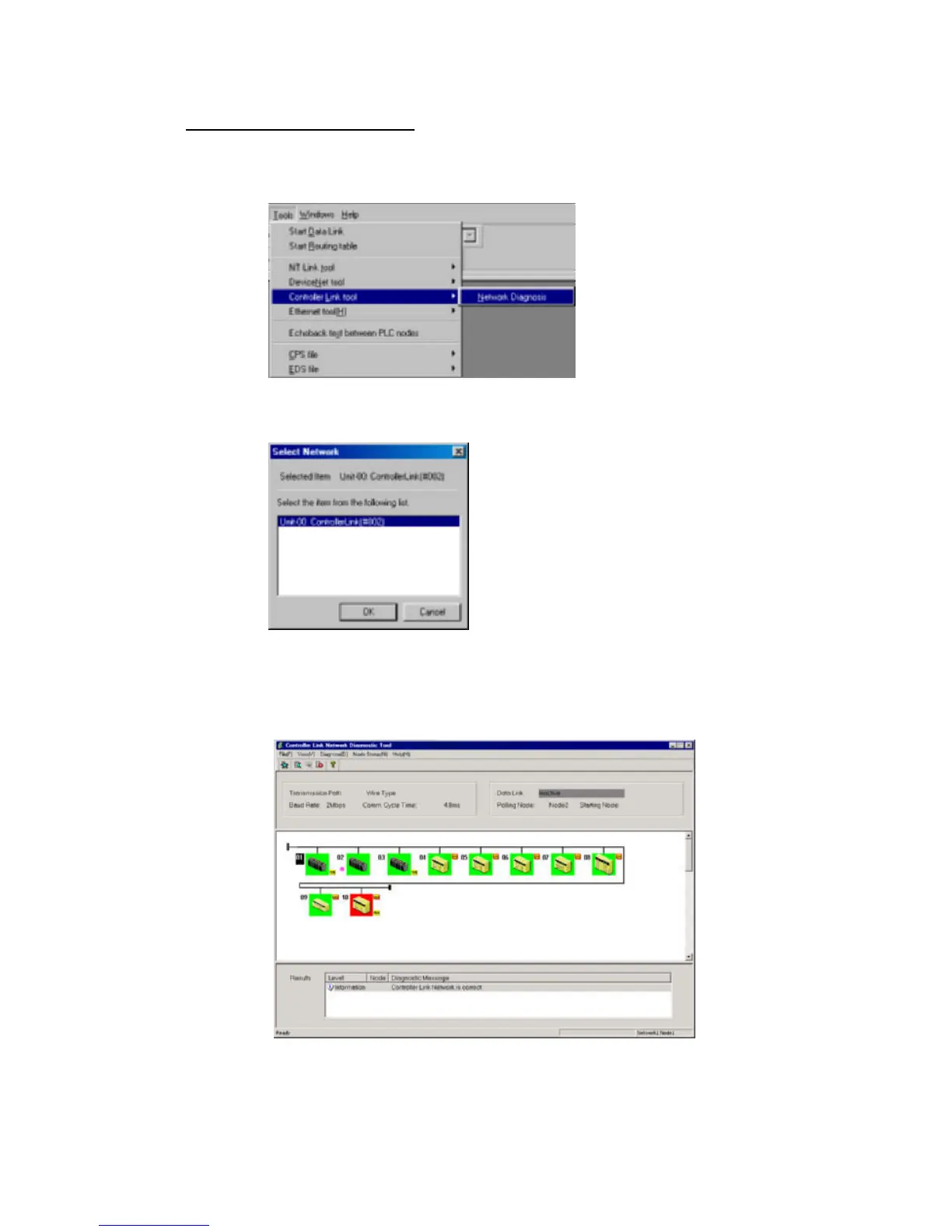

1. Check that the CX-Integrator is online with the PLC connected through Controller
Link ad select Tools – Controller Link tool – Network Diagnosis.
2. The Select Network Dialog Box will be displayed.
Select the desired network in the list and click the OK Button.
3. Network diagnosis will begin on the selected network.
The Controller Link Network Diagnosis Software will start and the network nodes
and diagnostic results will be displayed.
If the relevant network exists in the project workspace, the node configuration
information (network name, node name, branching) will be inherited.
