9-1 Controller Link Network Diagnostic Tool
9-1-7 Collecting Error Logs
Displaying Model Numbers
Displaying Model Numbers
Select Node Status – Unit Profile from the Main Menu.

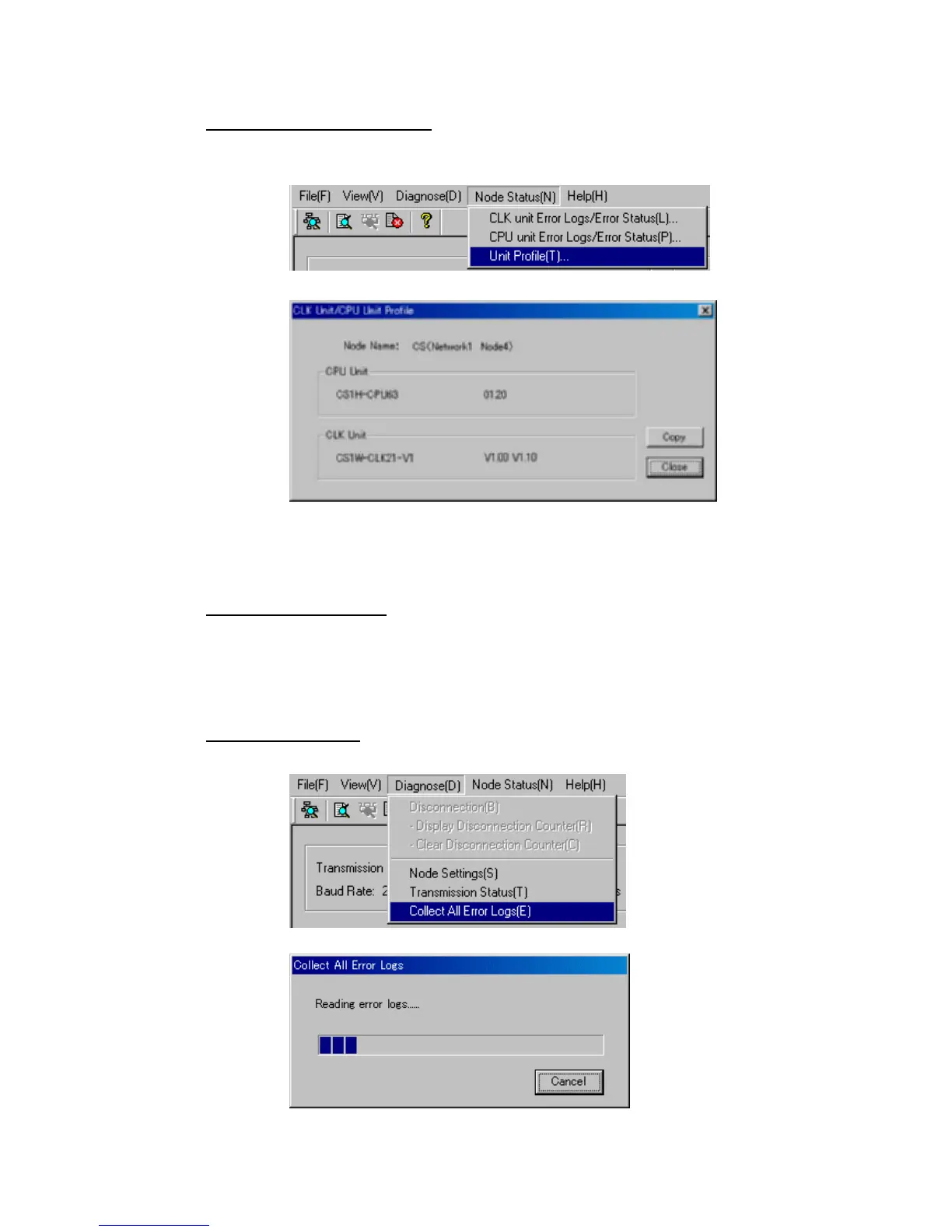

Model Display Example
Click the Copy Button to copy the model number data to the clipboard. The data on
the clipboard will be in CSV (text) format.
9-1-7 Collecting Error Logs
Collecting Error Logs
• The error status and error logs for all nodes on the specified network can be
collected and stored in one file.
• This function enables sending files collected on remote systems as email
attachments for later analysis.
Collect Error Logs
Select Diagnose – Collect All Error Logs from the Main Menu, or click the icon.
The following display will appear while data is being collected.
The data in the file will be in CSV (text) format. The data can be edited using an editor,
word processor, or spreadsheet software.
