9-1 Controller Link Network Diagnostic Tool
9-1-6 Node Status
CPU Unit
Displaying Error Status/Error Log
Select Node Status – CPU Unit Error Log/Error Status from the Main Menu.

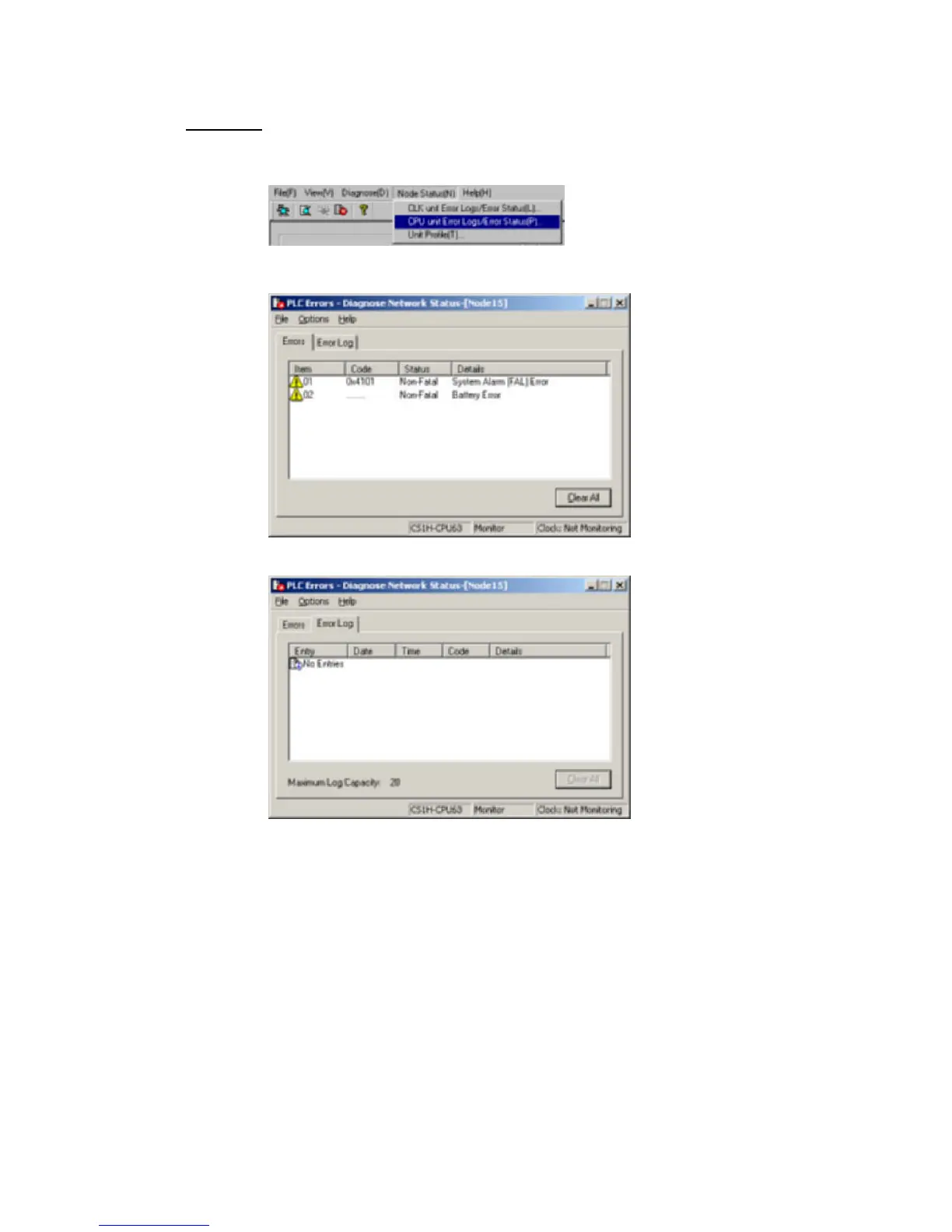

Error Status/Error Log Display Example
• Click the Error Tab to display the current errors.
• Click the Error Log Tab to display a log of the errors that occurred in the past.
• Click the Clear All Button to clear the error log from the CPU Unit.
9-20
