Omron CX-INTEGRATOR - V1.1 User Manual

1-4 PLC Connecting Cables

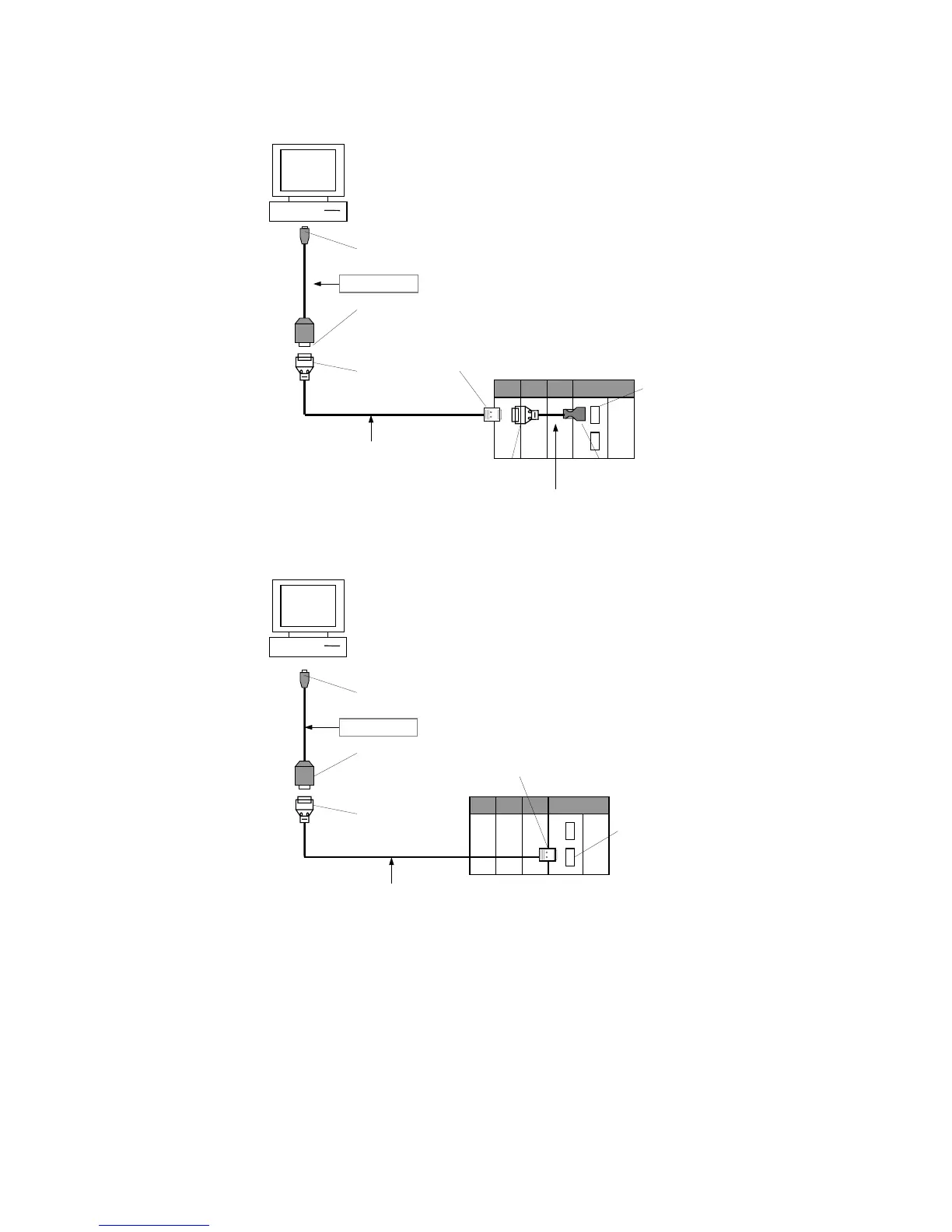

1-4-1 Direct Serial Connections to a PLC
-Using the XW2Z-200S-CV/500S-CV or XW2Z-200S-V/500S-V Connecting Cable for
RS-232C
Peripheral port
D-sub connector
(9-pin female)
XW2Z-200S-CV/500S-CV
or
XW2Z-200S-V/500S-V (See note.)
D-sub connector
(9-pin male)
D-sub connector (9-pin male)
D-sub connector
(9-pin female)
CS/CJ peripheral
connector
CS1W-CN118
CS/CJ-series PLCs
CS1W-CIF31
USB A-plug connector,
male
Note: Only a Host Link connection is possible for CS/CJ-series PLCs.
-Using the XW2Z-200S-CV/500S-CV or XW2Z-200S-V/500S-V Connecting Cable for
RS-232C
RS-232C port
D-sub connector
(9-pin female)
D-sub connector
(9-pin female)
Recommended cable:
XW2Z-200S-CV/500S-CV
or
XW2Z-200S-V/500S-V (See note.)
D-sub connector
(9-pin male)
D-sub connector
(9-pin male)
CS/CJ-series PLCs
CS1W-CIF31
USB A-plug connector,
male
Note: Only a Host Link connection is possible for CS/CJ-series PLCs.
1-19
