1-4 PLC Connecting Cables
1-4-1 Direct Serial Connections to a PLC

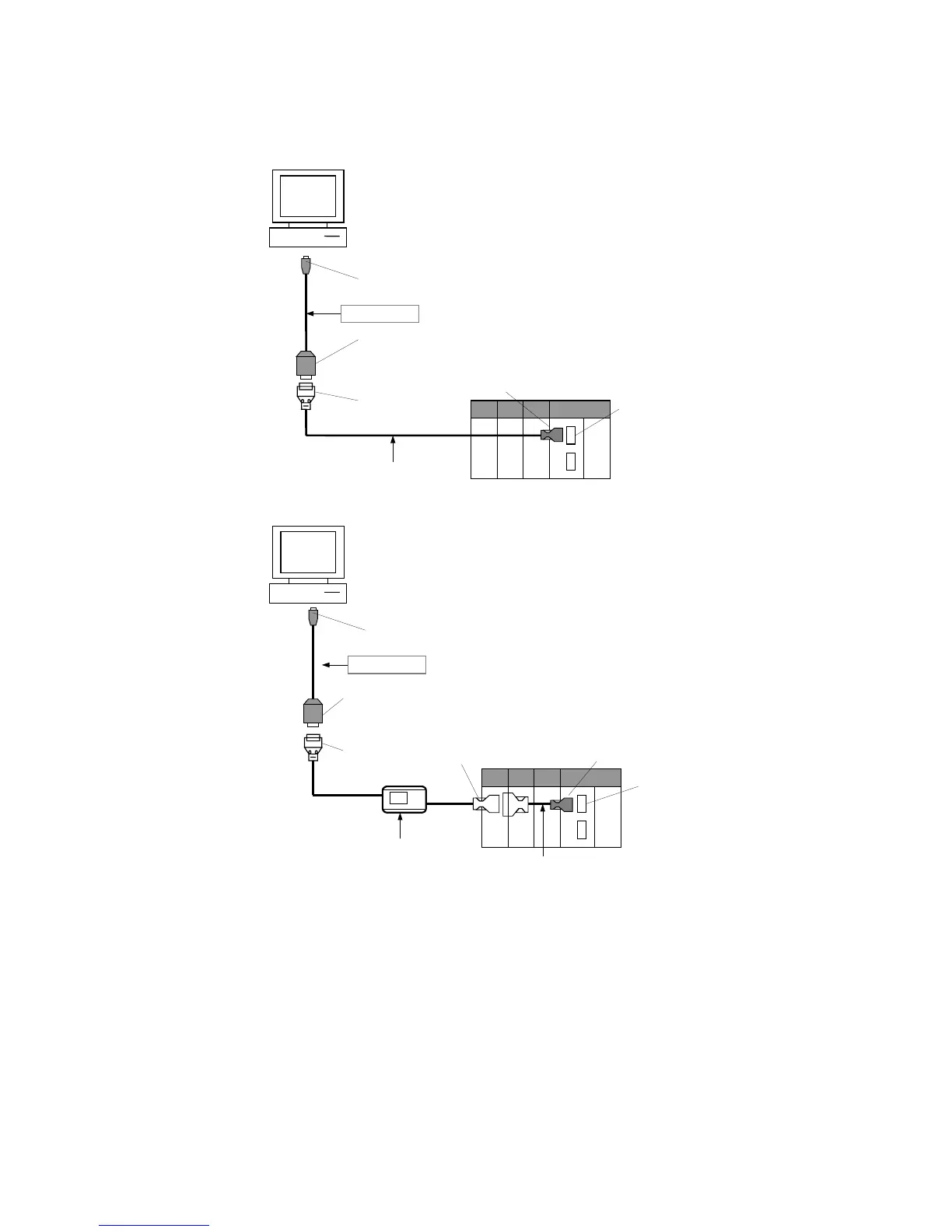

Connection diagrams are shown below.
Connecting to the Peripheral Port
-Using the CS1W-CN226/626 Connecting Cable
D-sub connector
(9-pin male)
Recommended cable:
CS1W-CN226/626
D-sub connector
(9-pin female)
Peripheral port
USB A-plug connector,
male
CS1W-CIF31
CS/CJ peripheral connector
●
CS/CJ-series PLCs
●
Customizable Counter Units
-Using the CQM1-CIF02 Connecting Cable
Peripheral port
D-sub connector
(9-pin female)
Recommended cable:
CQM1-CIF02
D-sub connector
(9-pin male)
C peripheral connector
CS1W-CN114
CS/CJ peripheral connector
●
CS/CJ-series PLCs (See note.)
CS1W-CIF31
USB A-plug connector,
male
Note: Only a Host Link connection is possible for CS/CJ-series PLCs.
