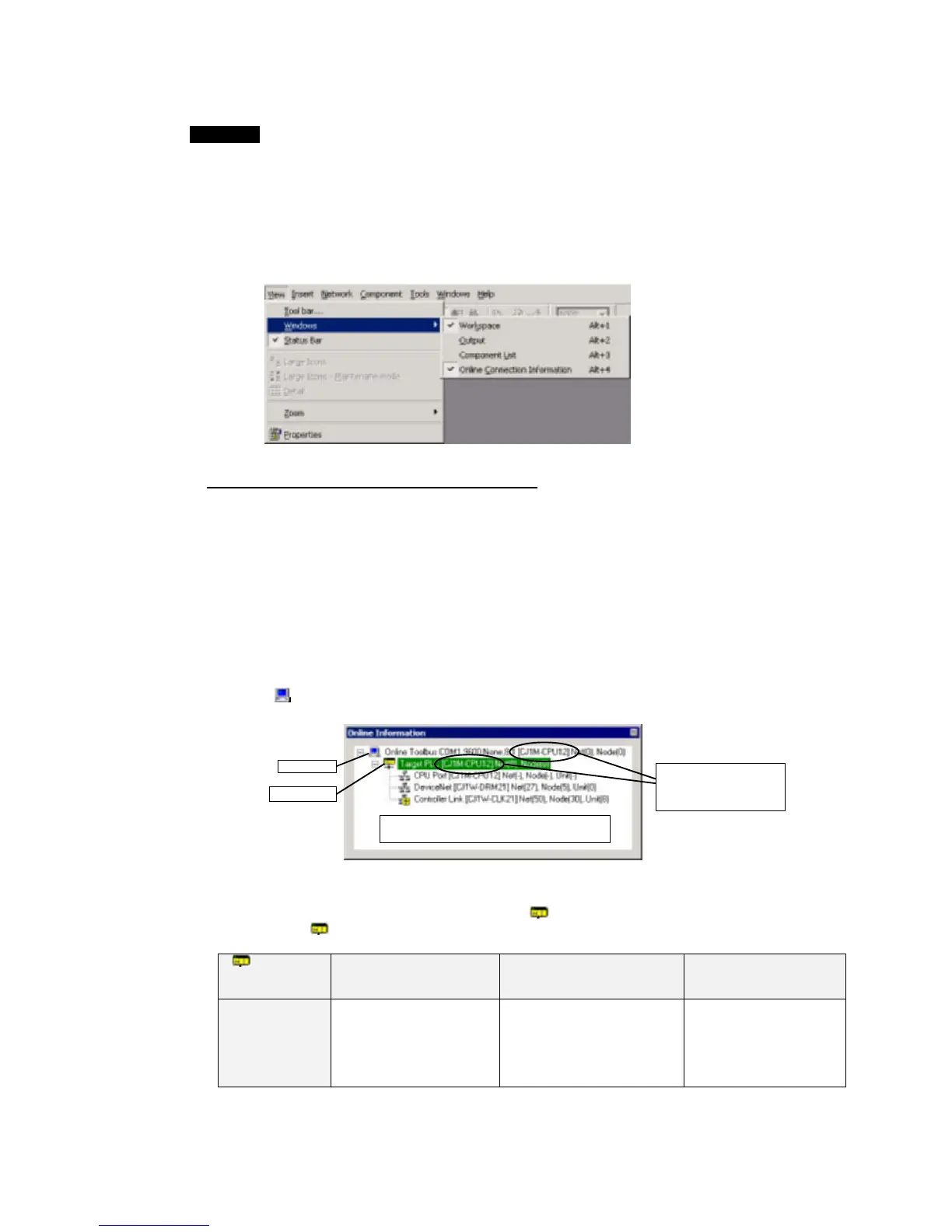

1-5 Window Descriptions
1-5-2 Main Window
Note
The following operations can be performed on the Workspace Window, Output
Window, Component List Window, and Outline Window.
Moving a Window and Displaying the Window Separately
Drag the window by its top border to move it.
Closing a Window
Click the X Button (Close Button) at the upper-right corner of the window.
Displaying a Window
Select the desired window from the View
−
Windows Menu. (A check mark appears
next to the windows that are displayed.)
Online Connection Information Window
The Online Connection Information Window displays the online/offline status and the Relay
PLC’s communications settings.
When online, the target PLC will be displayed in a tree structure with all of the
Communications Units and ports that belong to it.
Online Operation
The target PLC and Communication Units/ports mounted to the target PLC will be listed
below the relay PLC.
Relay PLC Communications Settings
The relay PLC’s communications settings will be displayed to the right of the Online icon
(
Online).
Relay PLC
Target PLC
When the computer is directly
connected to a PLC, the same
PLC will be both the relay PLC
and the target PLC.
After Connecting Online
The target PLC is displayed in green.
Target PLC Information
The target PLC’s CPU Unit model, Net (network address), and Node (node address) will be
displayed to the right of the Target icon (
Target PLC).
Display format: Target PLC [Target PLC’s CPU Unit model] Net (network address) Node (node address)
Description:
In brackets
[ ] to the right of
TargetPLC
[Target PLC’s CPU Unit
model]
Net (Network address) Node (Node address)
Target PLC’s
CPU Unit model
Target PLC’s CPU Unit
model
Network address (1 to 127,
decimal)
Note: This is the network
address registered when this
PLC is registered as the target
PLC via the relay PLC.
Node address (decimal)
Note: This is the node
address on the network
registered when this PLC
is registered as the target
PLC via the relay PLC.
1-23
