1-5 Window Descriptions
1-5-2 Main Window

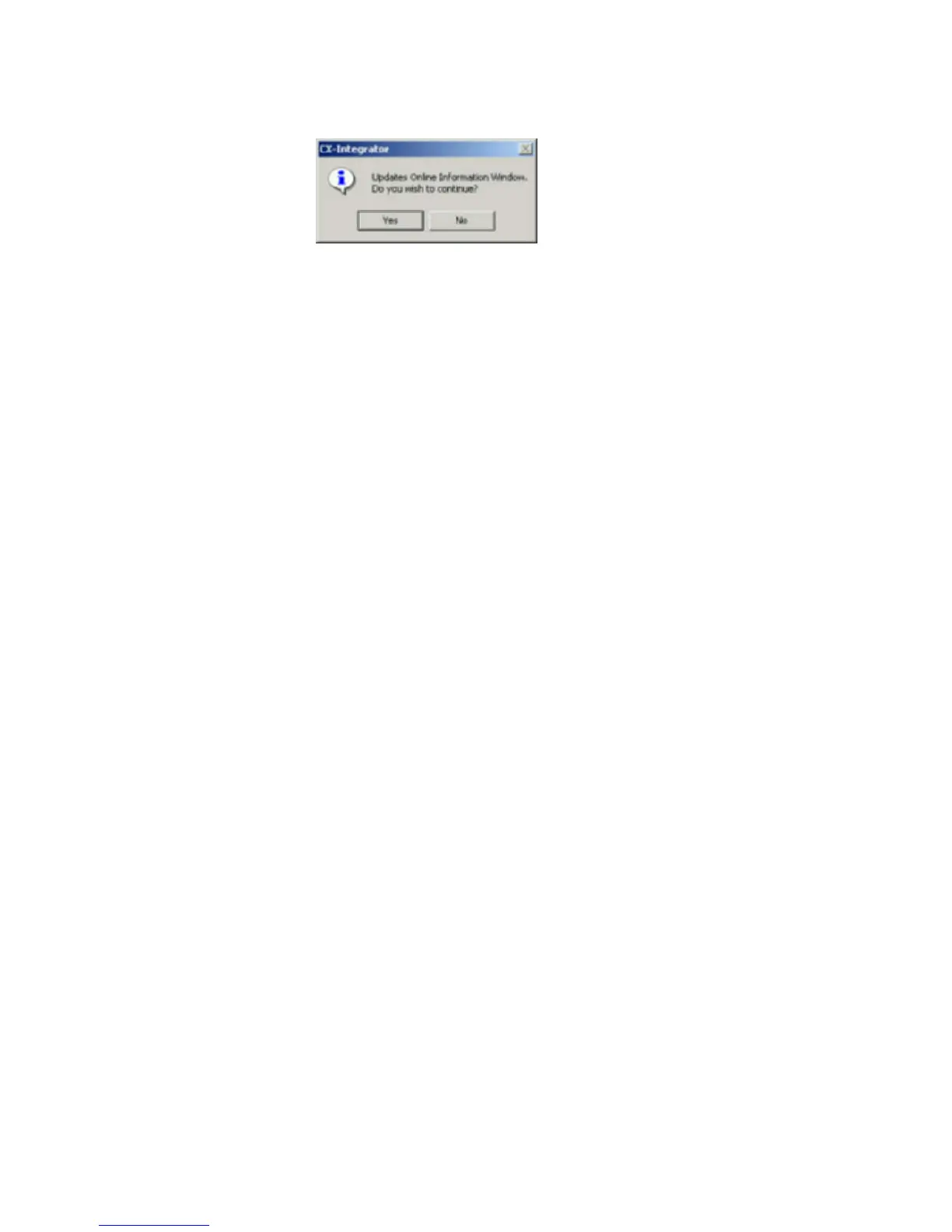

2. The following dialog box will be displayed for confirmation. To execute the update,
click the Yes Button.
3. The display contents of the Online Connection Information Window will be updated.
4. After the display has been updated, operations can be executed with respect to the
Units and Components that are displayed.
Precautions for Online Operations After a Routing Table has been Changed or
Removed
After a routing table has been changed or removed, observe the following precautions
regarding the windows from which to execute online operations such as connections,
network transfers, and starting of special applications.
1. Executing online operations in the Network Configuration Window:
The actual network status may be different from what is being displayed in the Online
Connection Information Window. Be sure to select Display – Change Online
Connection Information Window and update the Online Connection Information
Window.
2. Executing online operations except for “connect” (see note) in a window other
than the Network Configuration Window:
A dialog box will be displayed to notify of a display update. Click the OK Button to
update the Online Connection Information Window display. Then execute the online
operation again.
Note: When the “connect” operation is executed, the connection is made after the Online
Connection Information Window display has been automatically updated, without any
dialog box displayed for updating the window display.
1-28
