Omron CX-INTEGRATOR - V1.1 User Manual

1-6 Menus
1-6-3 Toolbars
1-6-3 Toolbars

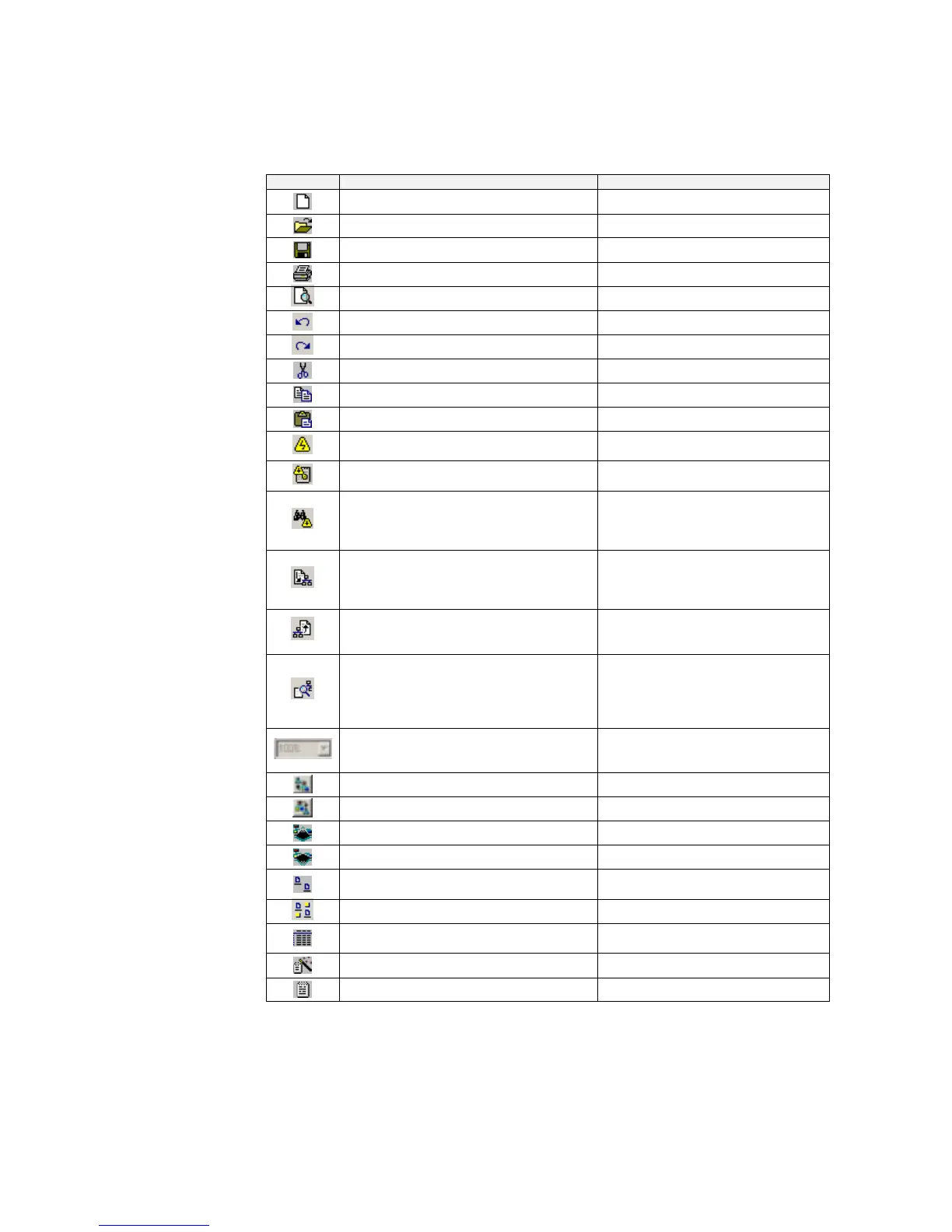

The most commonly used functions are provided as icons on toolbars.
The following menu commands are allocated to these icons.
Icon Description Actual menu command
Creates a new project. File - New
Opens a project file. File - Open
Saves a project. File - Save
Print. File - Print
Print Preview. File - Print Preview
Undo. Edit - Undo
Redo. Edit - Redo
Cuts devices. Edit - Cut
Copies devices. Edit - Copy
Pastes devices. Edit - Paste
Switches between working offline and online
with the device type setting in the computer.
Network - Work Online
Enables changing device type settings on the
computer.
Network - Communication Settings
Automatically connects to the relay PLC
using the communications settings of the
PLC (supported for serial communications
only).
Network - Auto Online
Downloads a network configuration created
offline in the Network Configuration Window
to the Communications Unit selected in the
Online Connection Information Window.
Network - Transfer [PC to Network]
Uploads the network configuration of the
Communications Unit selected in the Online
Connection Information Window.
Network - Transfer [Network to PC]
Compares a network configuration created
offline in the Network Configuration Window
with network configuration of the
Communications Unit selected in the Online
Connection Information Window.
Network - Compare
Increases or decreases the magnification of
the components displayed in the Network
Configuration Window.
View - Zoom
Displays the next higher network layer. Network - Move to upper network
Displays the next lower network layer. Network - Move to Lower network
Uploads network device information. Network - Transfer [Network to PC]
Downloads network device information. Network - Transfer [PC to Network]
Displays the windows in network
configuration mode.
View - Large Icons
Maintenance mode View - Large Icons Maintenance Mode
Displays the windows in detailed report
mode.
View - Detail
Device parameter wizard. Component - Parameter - Wizard
Edits device parameters. Component - Parameter - Edit
