2-2 Connecting Online to the Relay PLC
2-2-2 Procedures

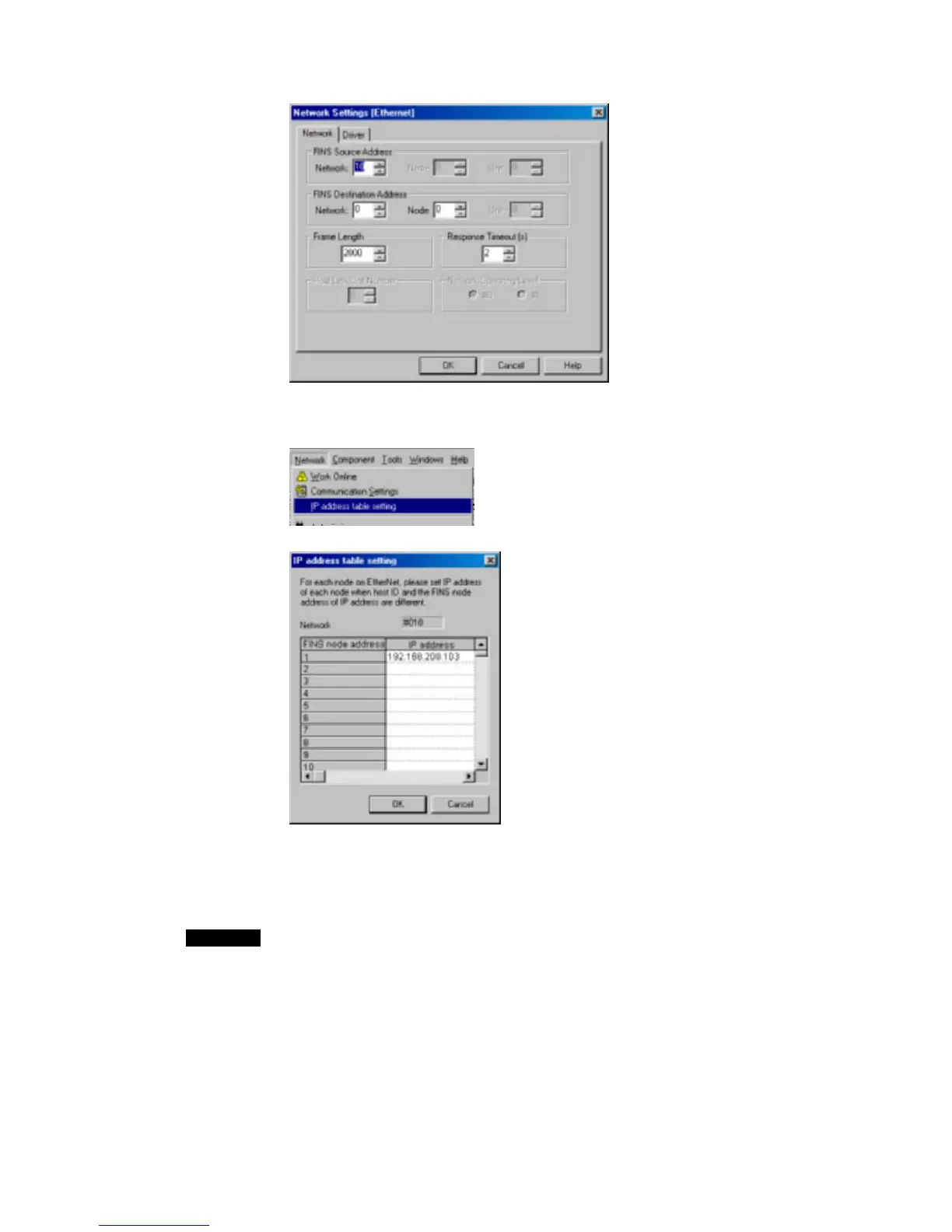

4. For Network, under FINS Destination Address, enter the network address of the
network to be connected, and then click the OK Button.
5. Select IP address table setting from the Network Menu.
6. The IP address table setting Dialog Box will be displayed.
In the IP address column, enter the IP address corresponding to the FINS node
address. Enter the IP address for all nodes for which the conversion is set for either
the IP address table method or the combined method, and click the OK Button to
complete the setting. It need not be input for nodes for which the conversion is set
for automatic generation (either dynamic or static).
Note
If the IP address table is not set correctly, the target node may not be displayed when
network uploads are executed.
2-19
