Omron CX-INTEGRATOR - V1.1 User Manual

2-3 Uploading Network Configurations and Checking for Communications
Unit Errors
2-3-2 Procedure

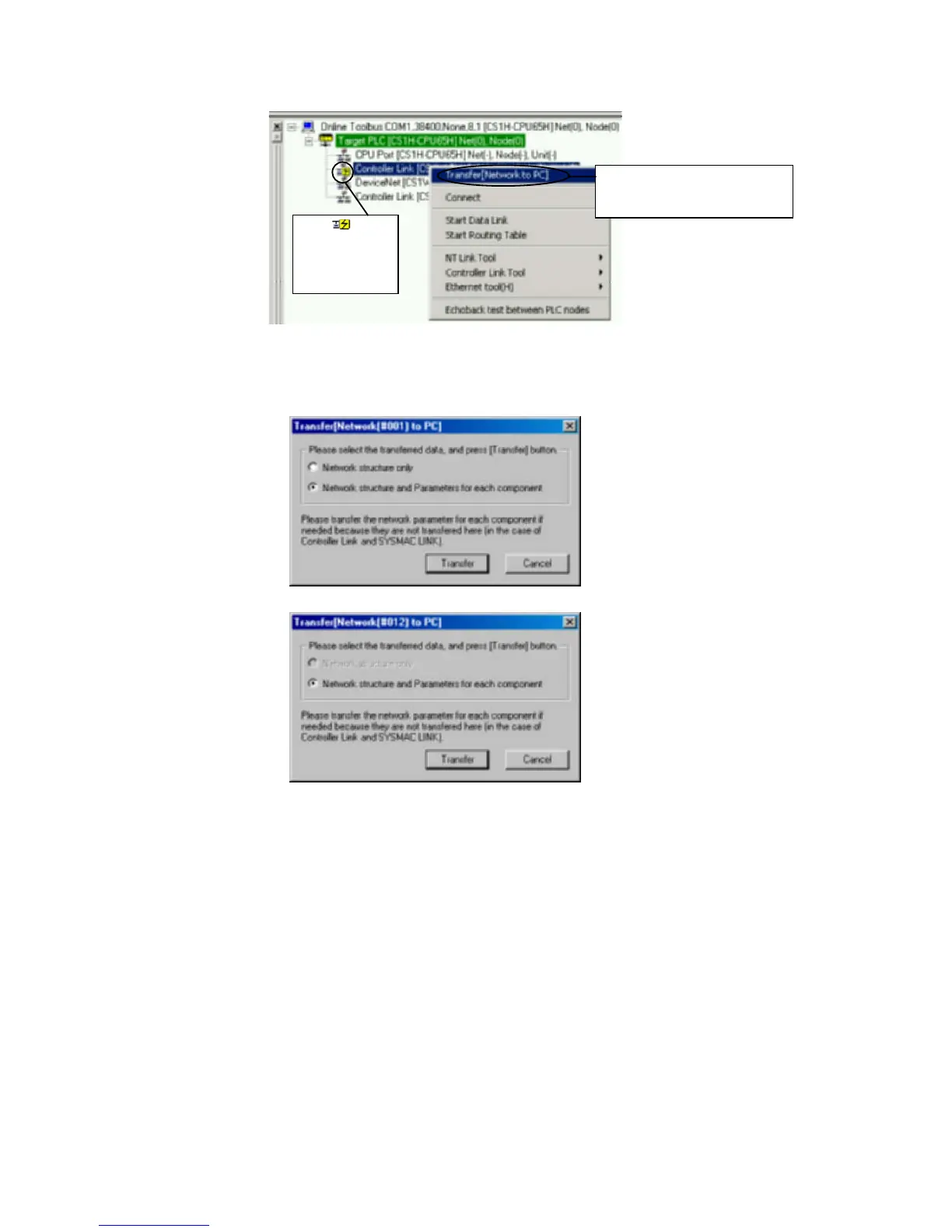

Select the desired Communications
Unit, right-click, and select Transfe
r
[Network to PC].
The icon
indicates that the
network structure
can be uploaded.
3.
1) For networks other than Ethernet:
The dialog box for selecting the data to be transferred will be displayed.
The selection is fixed for DeviceNet.
Clicking the Transfer Button is will start the transfer. Clicking the Cancel Button
will cancel it.
2-23
