2-5 Creating Virtual Network Configurations Offline
2-5-2 Procedure

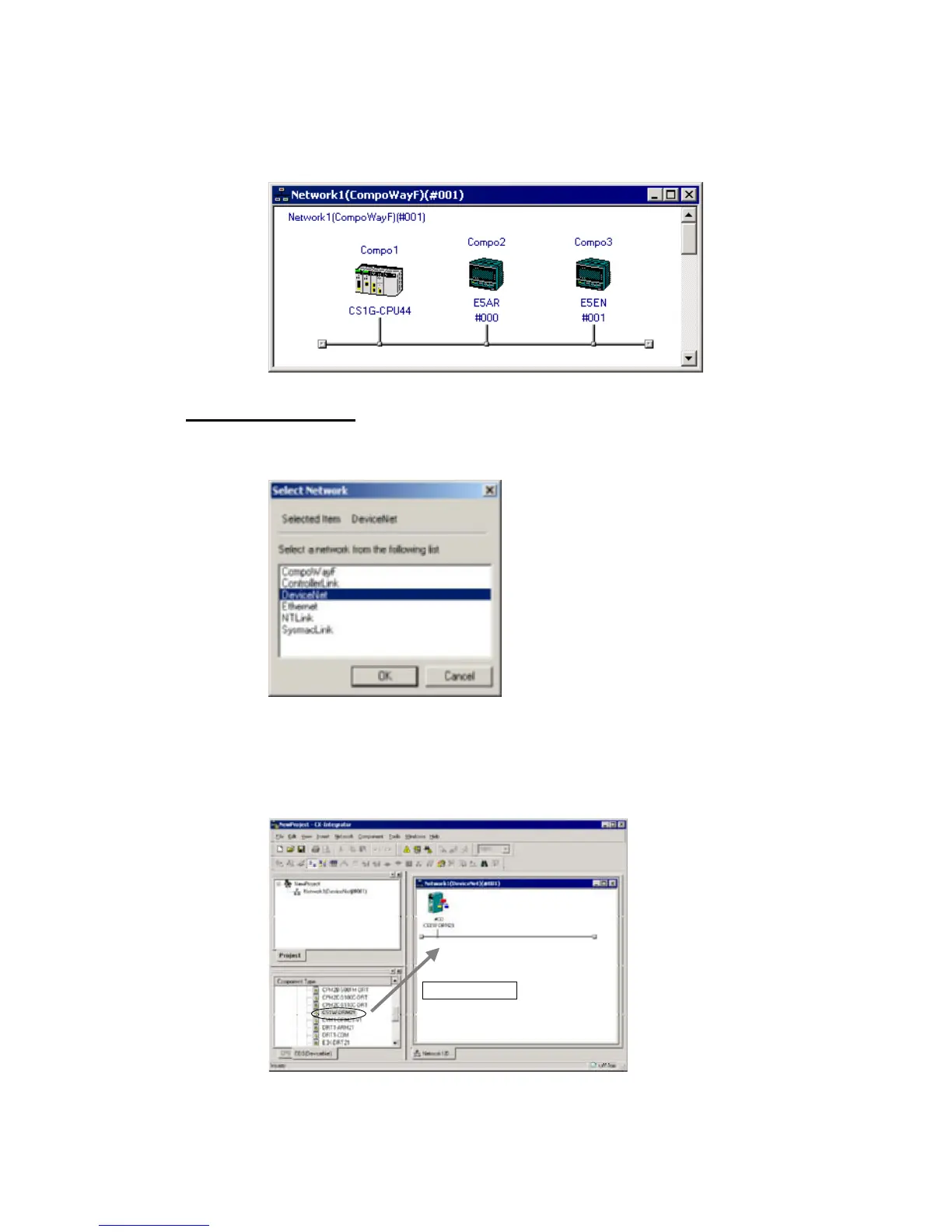

5. The component will be registered in the Network Configuration Window as shown
below.
In this example, a PLC CPU Unit and two Temperature Controllers have been
dragged and dropped:
DeviceNet Networks
Adding the Master
1. Offline, select Insert
−
Network. The Select Network Dialog Box will be displayed.
2. Select DeviceNet and click the OK Button.
3. Select a device (component) from the EDS (DeviceNet) Tab Page in the
Component List Window and drag and drop it in the Network Configuration
Window.
4. The device will be registered in the Network Configuration Window as shown
below.
Dra
To Next Page
