2-5 Creating Virtual Network Configurations Offline
2-5-2 Procedure
Connecting CompoWay/F to a Serial Port on a Serial Communications Unit

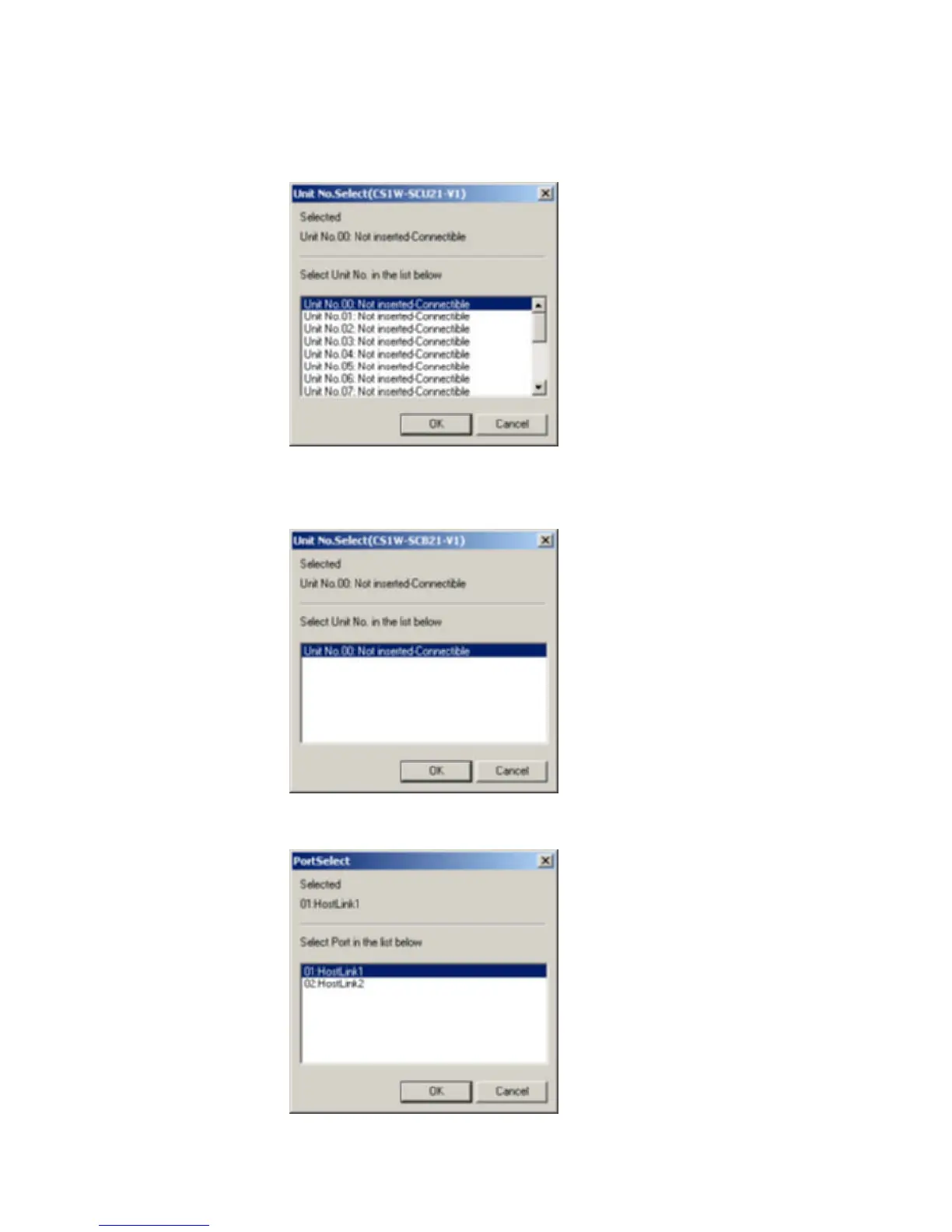

Select the model number of the Serial Communications Unit and click the OK Button.
The Unit Number Select Dialog Box will be displayed. Select a unit number between
00 and 15 and click the OK Button.
Connecting CompoWay/F to a Serial Port on a Serial Communications Board
• Select the model number of the Serial Communications Board and click the OK
Button.
• The Unit Number Select Dialog Box will be displayed. Click the OK Button.
• The Port Select Dialog Box will be displayed. Select the serial port to which to
connect CompoWay/F and click the OK Button. Select 01: Host Link 1 for port 1 or
02: Host Link 2 for port 2.
2-31
To Next Page
