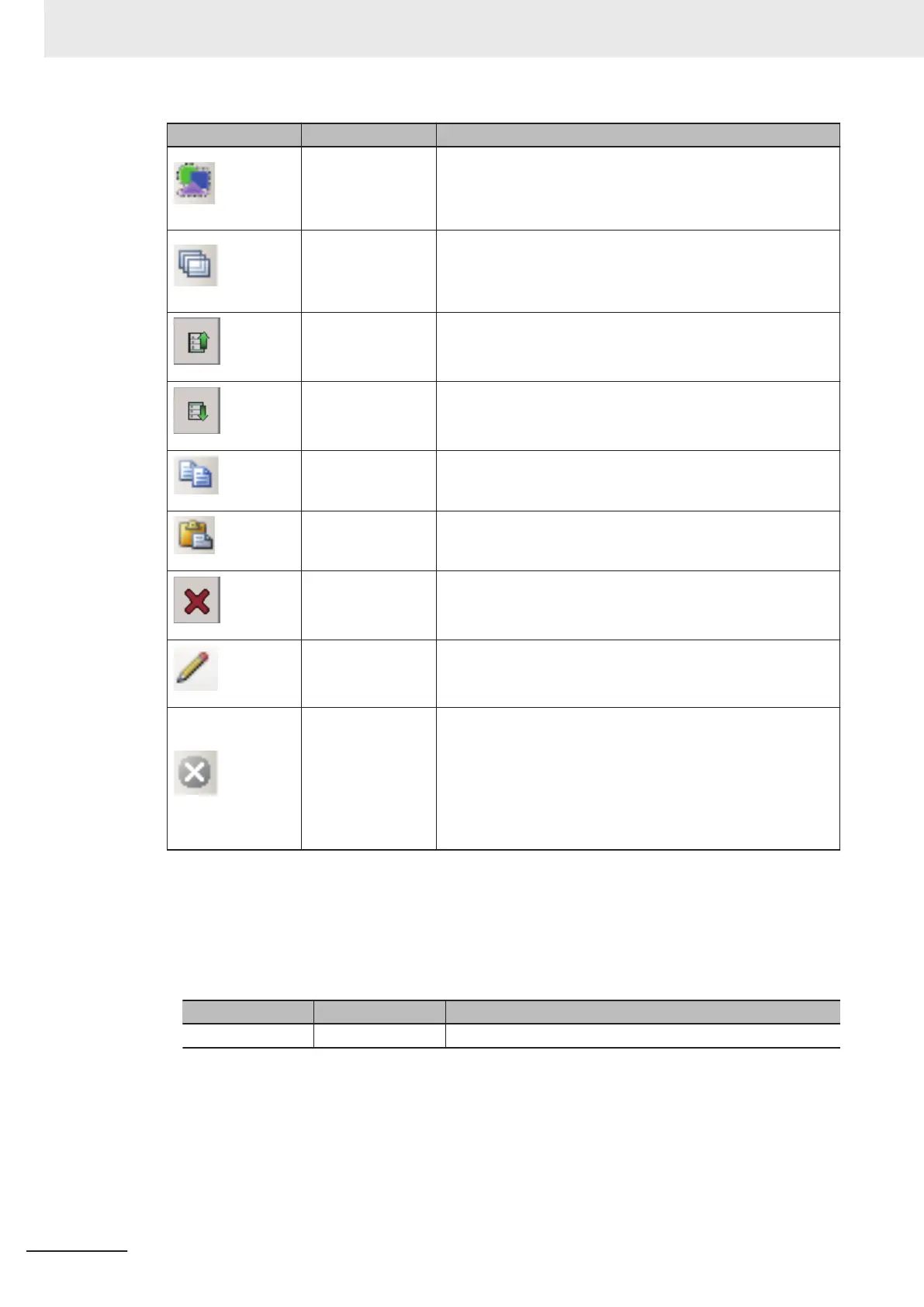

Icon Function Description
Shift area
Performs batch conversion for the related figure data.
The settings are made in the Shift area dialog.
Refer to 6-4-5 Changing Regions as a Batch [Shift area] on
page 6 - 32.
Multiple selection
Uses when copying or deleting processing units at once.
If you click Multiple selection, a check box will be added to the
right of each processing unit in the Unit list (Flow). The opera-
tion will be applied to the checked units.
Move up
Moves the selected processing unit UP one position on the
Unit list (Flow).
Move down
Moves the selected processing unit DOWN one position on the
Unit list (Flow).
Copy
Copies a processing unit selected on the Unit list (Flow), while
holding the settings data and the variables being used.
Paste
Inserts the copied processing unit to the position selected on
the Unit list (Flow).
Delete Deletes a processing unit selected on the Unit list (Flow).
Rename
Renames a processing unit name selected on the Unit
list(Flow).
The name change is made in the displayed Rename dialog.
Measure ON/OFF
Enables or disables the measurement execution for a selected
processing unit on the Unit list (Flow). Clicking Measure
ON/OFF toggles between enabling and disabling the measure-
ment execution.
When disabling the measurement execution, an X mark is dis-
played on the property setting button of each processing unit
on the Unit list (flow).
(c)
Menu bar:
This is a list of functions provided in the Edit flow tab screen.
The Scene variable and System variable menus are not available for the flow editing process-
ing.
Clicking the menu item displays available functions with a shortcut menu.
• File:
Icon
Function Description
(None) Close Closes the screen and exits the TDM editor.
• Editing:
5 Creating Measurement Scenes
5 - 16
FH/FHV Series Vision System User’s Manual (Z365-E1)
