In the case of Open the unit setting UI, the Editing dialog box is displayed.
In the case of Open the unit setting old UI, the usual property setting screen is displayed.
4 Set the conditions on the Editing dialog.
The displayed contents depend on a processing item.
For more details, refer to Vision System FH/ FHV Series Processing Item Function Reference
Manual (Cat. No. Z341).
5
After completing the condition settings, click OK.
Return to the Edit flow tab screen while holding the set contents. When clicking Cancel, then
dispose of the set contents and return to the Edit flow tab screen.

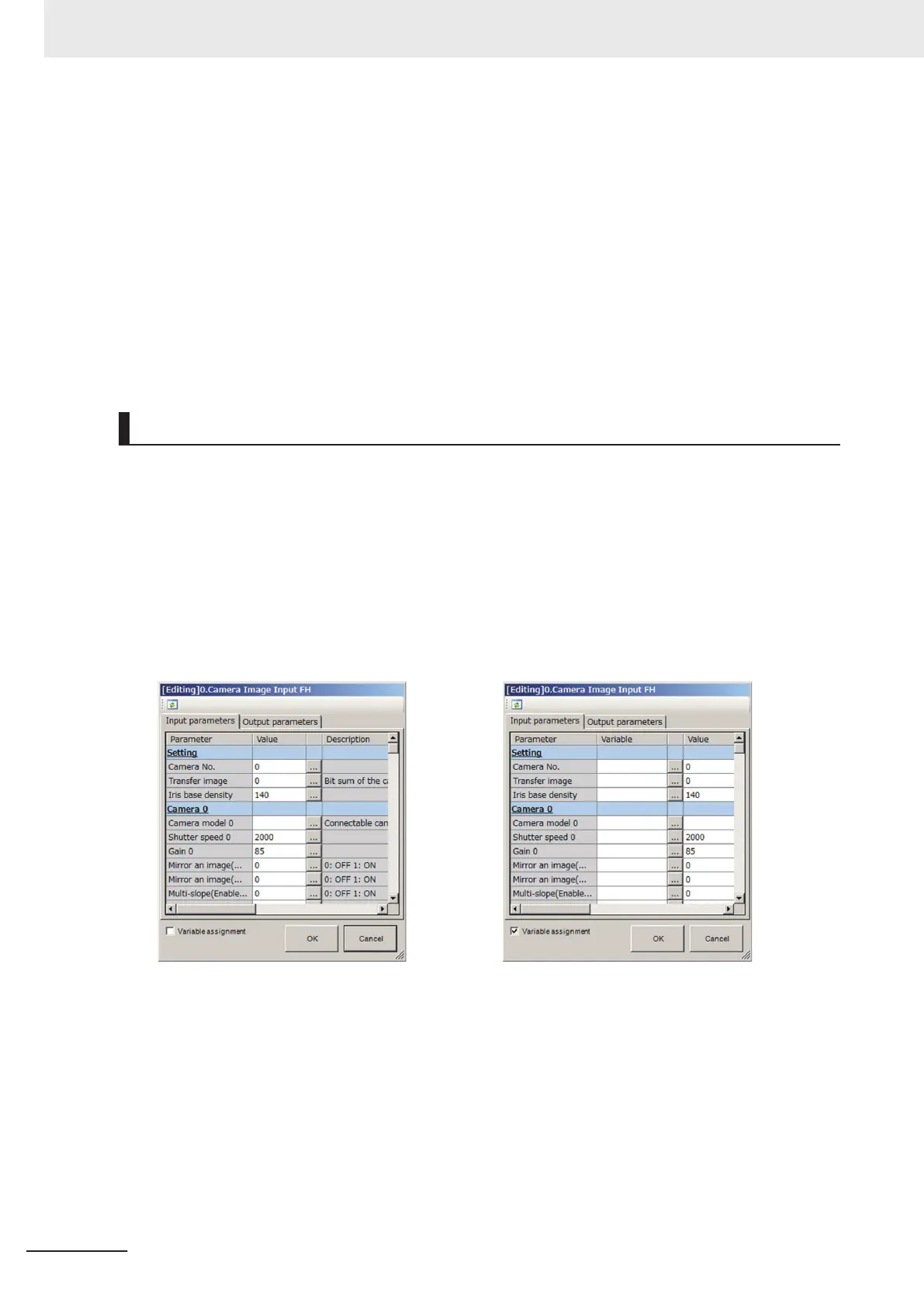

Open the Unit Setting UI (Editing Dialog)
Sets conditions such as measurement parameters and judgment conditions for processing items as
processing units registered on the measurement flow. A test measurement can be performed on the
unit area of the Edit flow tab screen even with a state that this window is opened.
Furthermore, variables can be assigned to parameters. In order to assign variables to parameters,
check the check box of the Variable assignment at the lower-left.
For more details, refer to Vision System FH/ FHV Series Processing Item Function Reference Manual
(Cat. No. Z341).
• Input parameter tab:
Display a list of input parameters for a processing unit selected on the Unit list (flow).
• Output parameter tab:
Displays a list of Output parameters for the processing unit selected in the flow.
5 Creating Measurement Scenes
5 - 26
FH/FHV Series Vision System User’s Manual (Z365-E1)
