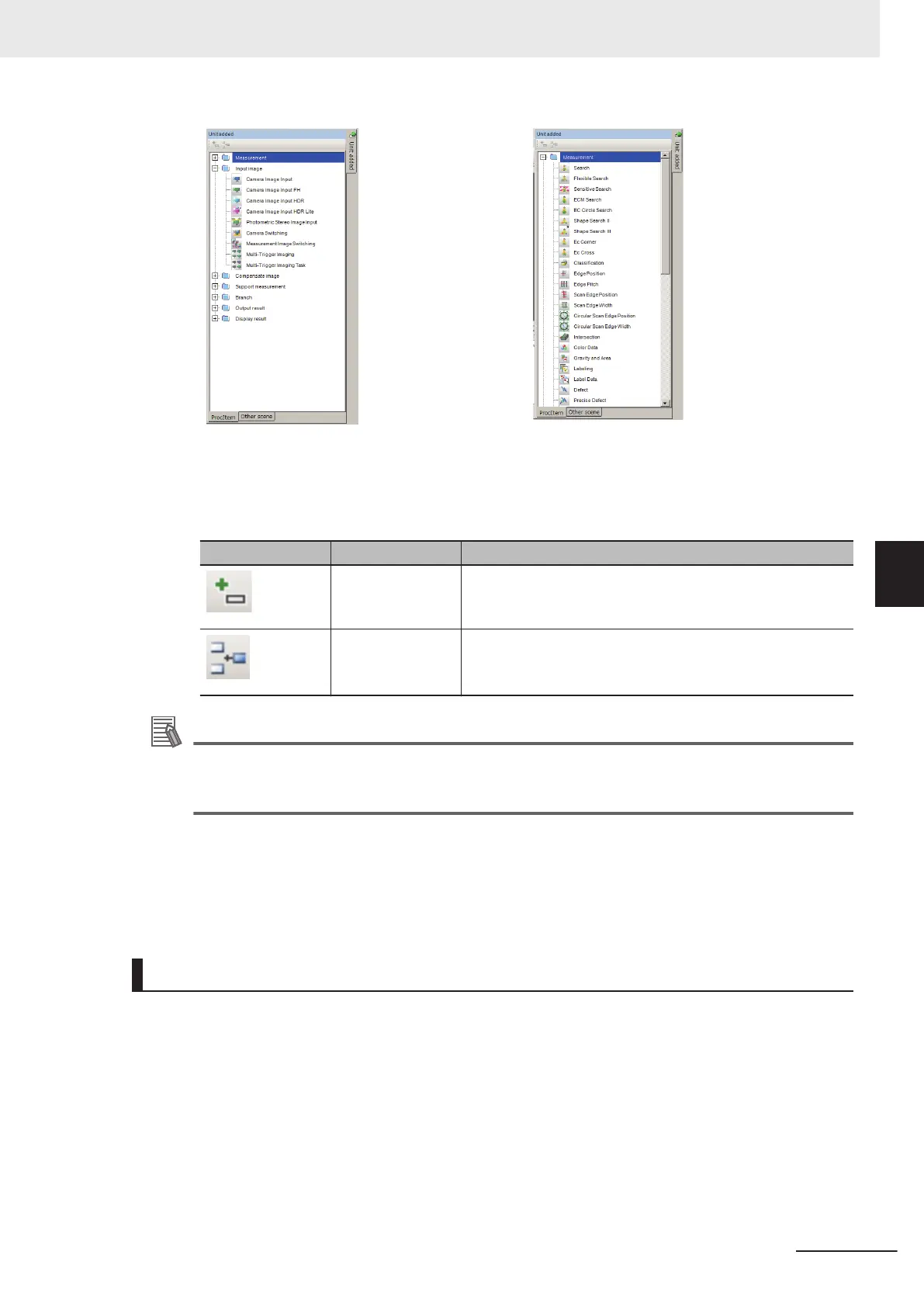

3 Select a processing item to add from the list of processing items on the Unit added tab.
4 Click Append icon or Insert icon at the upper side of the Unit added tab.
Icon Function Description
Append Adds a processing item selected on the processing item list
to the bottom of the Unit list (flow).
Insert Inserts a processing item selected on the processing item list
to the specified position on the Unit list (flow).
Additional Information
The following operation also enables processing items to be added to the Unit list (flow).
• Drag a processing item selected on the processing item list and drop it on the Unit list (flow).
• Right-click a processing item selected on the processing item list and click or Insert.
The selected processing item is added to the bottom (Append) or the specified position (Insert)
on the Unit list (flow).
5
Repeat the step 3 to 4 to add more processing items.
Setting Properties for Processing Units
1 Click the Edit flow tab. Display the Edit flow tab screen.
For more details, refer to Edit Flow Tab Screen on page 5 - 15.
2
On the Unit list (flow), select a processing unit to set properties.
The selected processing unit name is displayed on the Unit area.
3
Click Set on the Unit area.
The drop down menu is displayed. Click Open the unit setting UI or Open the unit setting
old UI.
5 Creating Measurement Scenes
5 - 25
FH/FHV Series Vision System User’s Manual (Z365-E1)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-2 Editing Processing Units in a Scene [TDM Editor]
