Omron FHV7 series User Manual

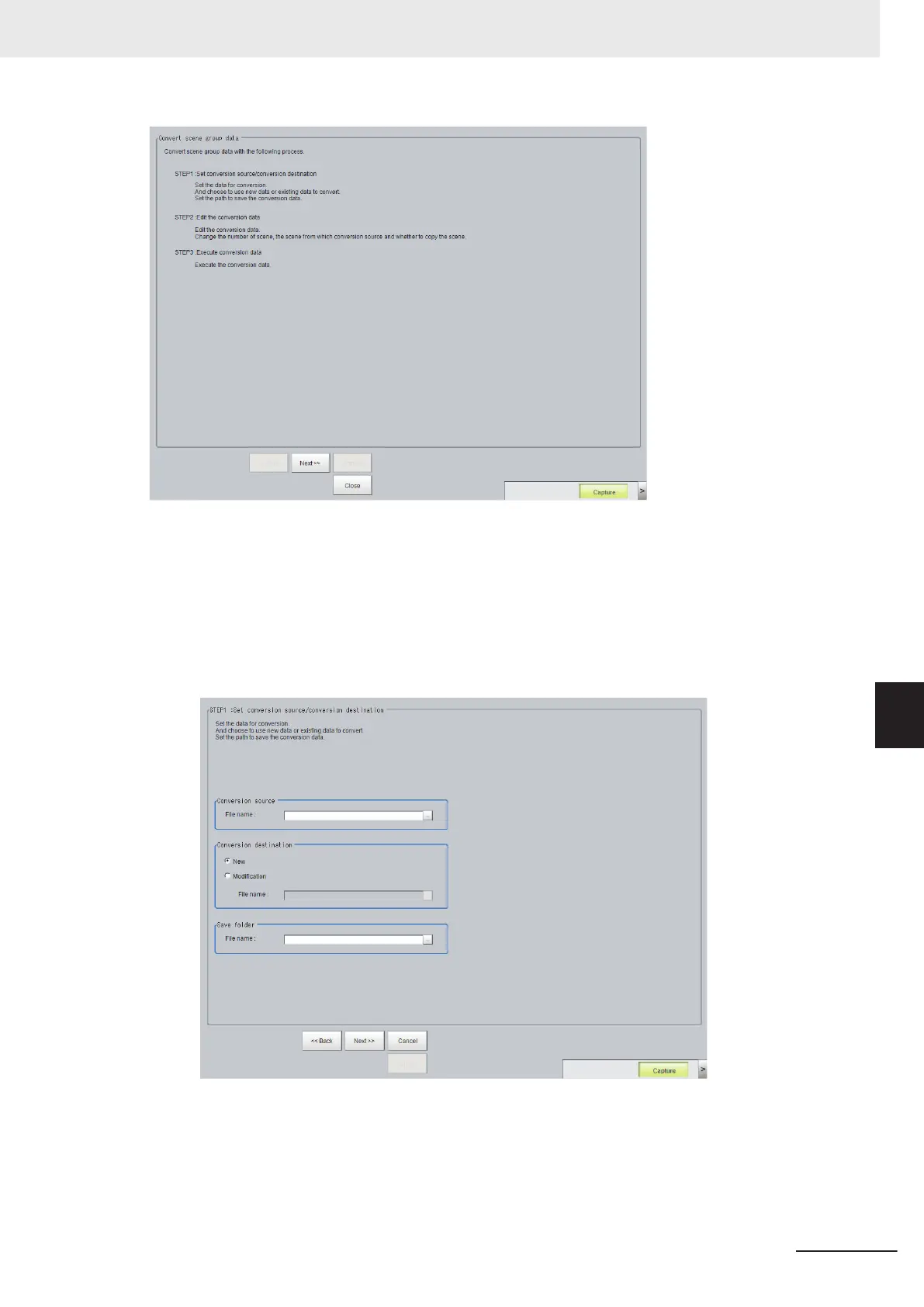

Use the following procedure and the guidance in the dialog boxes to perform the conversion process.
1
Select Conversion scene group data tool from the Tool menu.
The Conversion Scene Group Data Tool is started.
2 Click the Next >> button.
The STEP 1 dialog box is displayed.
3
Specify the target data file to convert, the destination data file, and the destination. Then click
the Next >> button.
The STEP 2 dialog box is displayed.
7 Increasing/Switching Measurement Scenes
7 - 15
FH/FHV Series Vision System User’s Manual (Z365-E1)
7-6 Increasing the Number of Scenes in a Group to more than 128 Scenes [Conversion scene group data
tool]
7
7-6-2 Operating Procedure for the Conversion Scene Group Data Tool
