Click the button for any processing item that is set in the measurement flow, or click the Set button to
open the Properties Dialog Box.

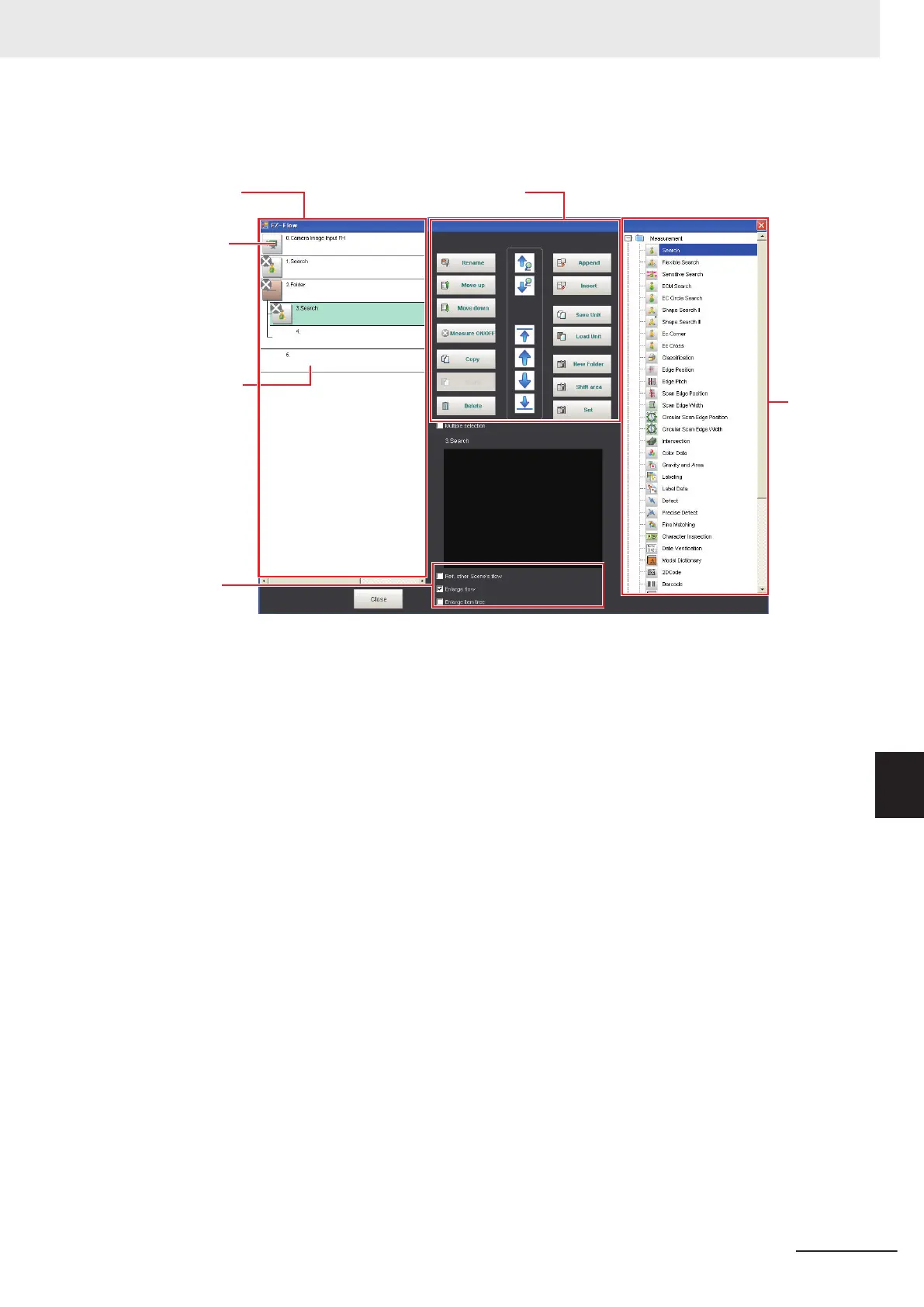

3. End marker
1. Unit List 4. Flow editing buttons
2. Property
setting buttons
6. Processing
items tree
5. Display
options
(1) Unit List
The processing units included in the flow are displayed in a list.
You can create a flow for a scene by adding processing items to the unit list.
(2) Property Setting Buttons
The Properties Dialog Box is displayed and allows you to make detailed settings.
(3) End Marker
This marker indicates the end of the flow.
(4) Flow Editing Buttons
You can use these buttons to change the order of processing units within the scene or to delete
processing units.
Refer to .
(5) Display Options
• Enlarge flow:
When this option is selected, the Unit list flow (1) is displayed with large icons.
• Enlarge item tree:
When this option is selected, the processing item tree (6) is displayed with large icons.
• Ref. other Scene's flow:
When this option is selected, other scene flows within the same scene group can be referred to.
(6) Processing Items Tree
This area allows you to select an item to add to the flow. The items are displayed in tree format
that is organized by type. Click the + button for each item to display the lower level items. Click
the- button for each item to hide the lower level items.
When Ref.other Scene’s flow is selected, the scene select box and other scene flows are dis-
played.
8 Setting Windows
8 - 7
FH/FHV Series Vision System User’s Manual (Z365-E1)
8-1 Windows
8
8-1-3 Main Window (Layout 0): Adjustment Window (Default)
