Dialog Box List
Display Area
Dialog Box Properties Display Area
for the List of Dialog Box Display Area.
Preview Area
• Edit and Control Buttons for the List of Dialog Box Display Area.

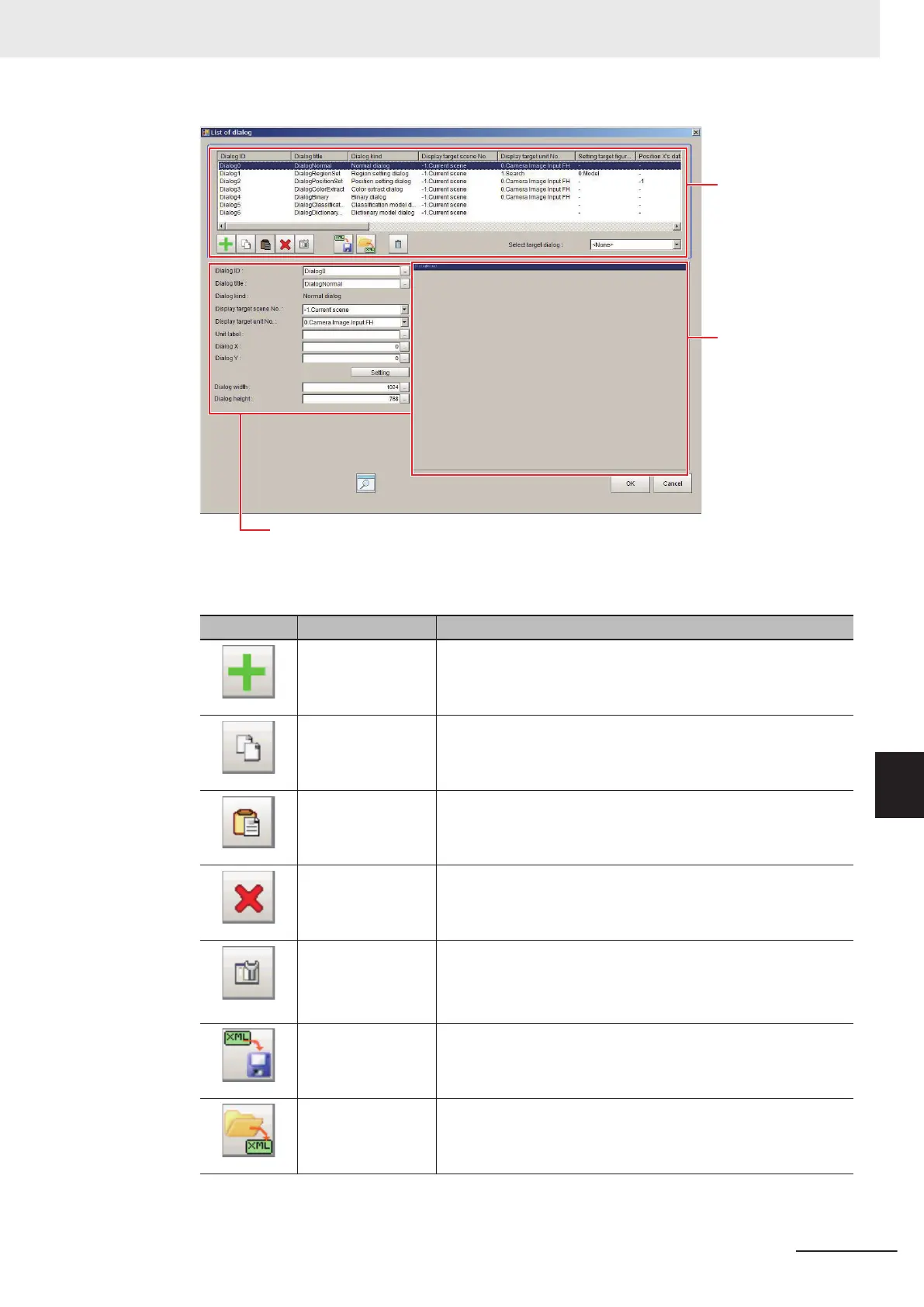

Icon Function Description
Add dialog Adds a dialog box. The Select dialog list is displayed.
Copy dialog Copies the selected dialog box.
Paste dialog Pastes the copied dialog box to the end of the list.
Delete dialog Deletes the selected dialog box.
Edit normal dialog
If the selected dialog box is a normal dialog box, this button al-
lows you to edit the contents that are displayed in the Edit Dialog
Box Area.
The Edit Dialog area is displayed.
Save to dialog set-
ting file
Saves the selected dialog box to a dialog box settings file (exten-
sion .xml).
Load from dialog
setting file
Loads the dialog box from the specified dialog box settings file
(extension.xml) into the list of dialog boxes.
8 Setting Windows
8 - 65
FH/FHV Series Vision System User’s Manual (Z365-E1)
8-4 Editing contents are not reflected when you confirm the Sensor Controller after edit a layout by remote control
[Custom Dialog Tool]
8
8-4-2 Custom Dialog Tool
