b
a
d
c

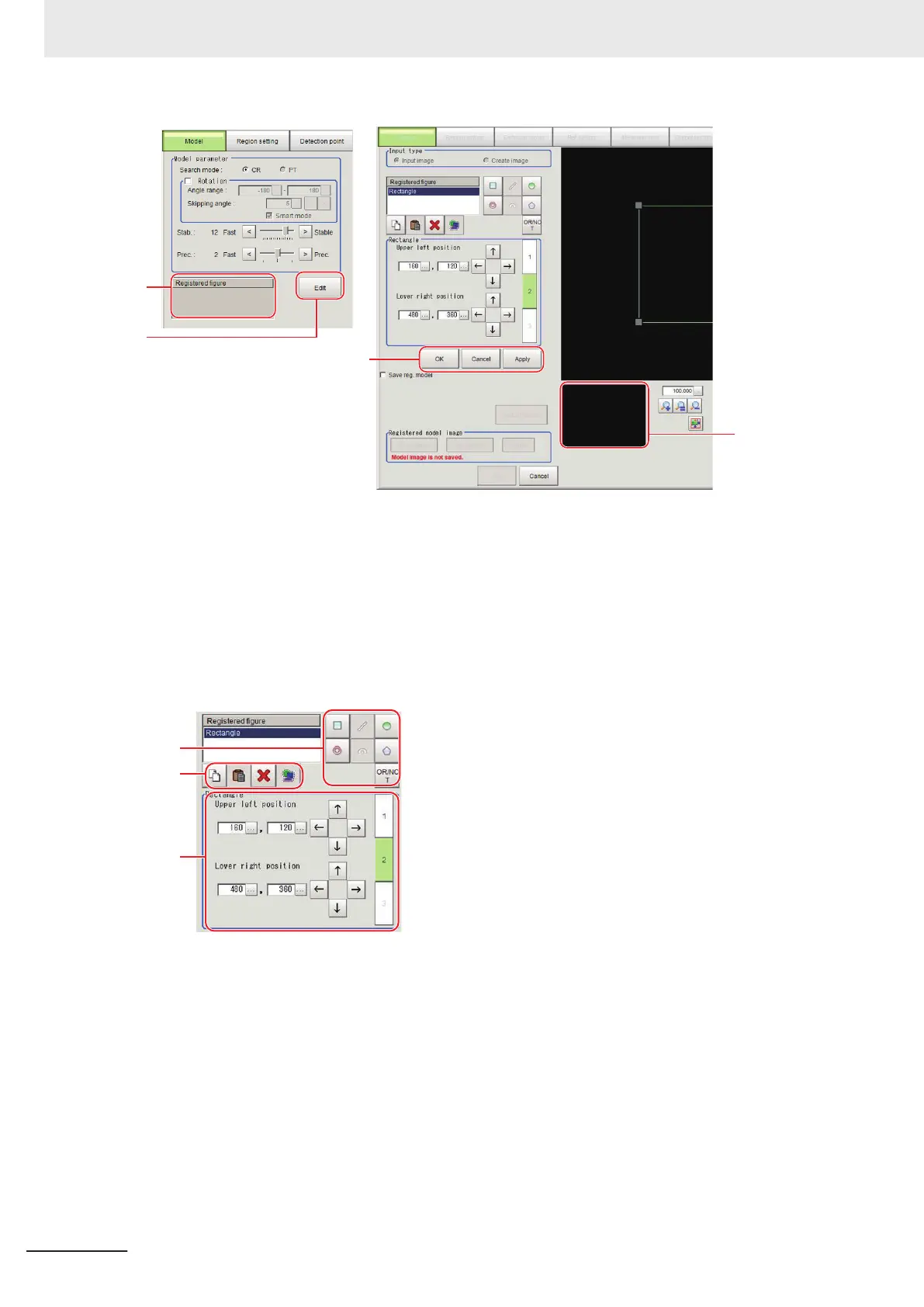

(a) Figures:
Displays a list of names of registered objects on the Properties Dialog Box when related figures
are set. The figure at the bottom of the list is the nearest object in the foreground. The higher the
sequence position of the object, the further back in the background it is. When objects are drawn
overlapping, the settings for the object set last are valid.
(b) Edit:
You can edit on the Properties Dialog Box when related figures are set. By clicking Edit button,
the following figure editing tool will be displayed.
3
2
1
(1) Drawing tool buttons:
Sets up objects, such as figures and text. The number and type of objects available is differ-
ent depending on the applicable setting (ex. Result display, Model, Region setting).
(2) Object editing buttons:
Buttons for editing objects
(3) Details:
Shows the details of the selected figure. Specify the object coordinates or radius. Tapping ▲
or ▼ will display the items currently not displayed.
(c) Each buttons:
These button are displayed under the figure editing tools.
3 Basic Operations
3 - 14
FH/FHV Series Vision System User’s Manual (Z365-E1)
