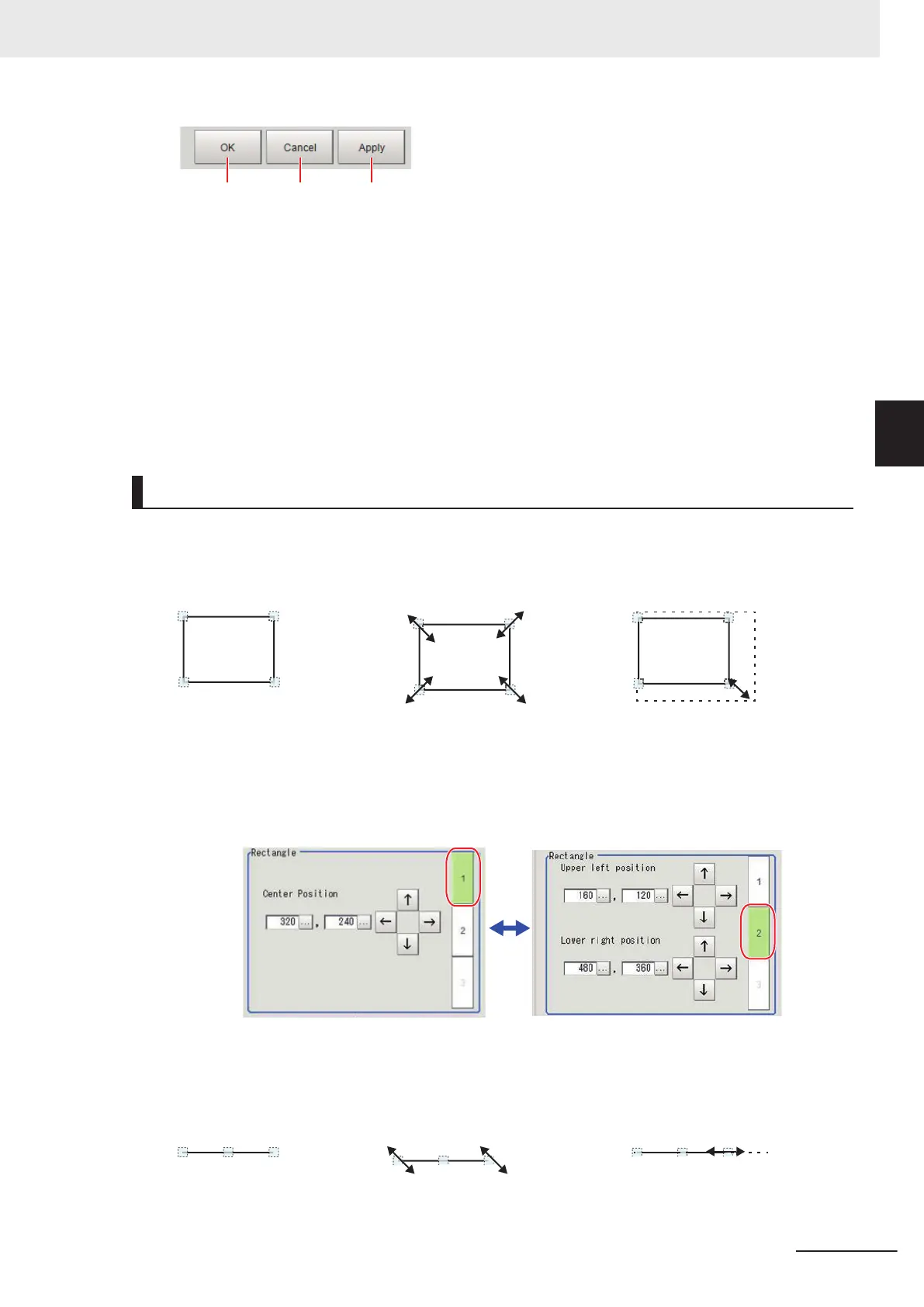

(1) OK:
The Model is registered. Returns to the previous menu.
(2) Cancel:
Changes are discarded. Returns to the previous menu.
(3) Apply:
Updates the figure without leaving edit window.
(d) Zoom Browser Area:
Magnifies the Image Display area by the selected magnification factor. Refer to 3-2-5 Using the
Zoom Function on page 3 - 13.
Setting Methods
l
Rectangle
• Image selection status • Dimension Adjustment • Example: When enlarging
Points are displayed at each of the
four corners.
Drag the lower right point down in
a diagonal direction.
• Using numbers for setting
The setting area consists of two windows below. Click the 1 or 2 on the right side of the window
to select the setting item.
l
Line
• Image selection status • Dimension Adjustment • Example: When changing the
length of a line
3 Basic Operations
3 - 15
FH/FHV Series Vision System User’s Manual (Z365-E1)
3-2 Basic Knowledge about Operations
3
3-2-6 Setting Figures
