Points are displayed on
two lines at both ends of
the arcs, inside of the
two lines at both ends of
the arcs, on the inner
arc, on the outer arc, and
inside the closed arc
shape.

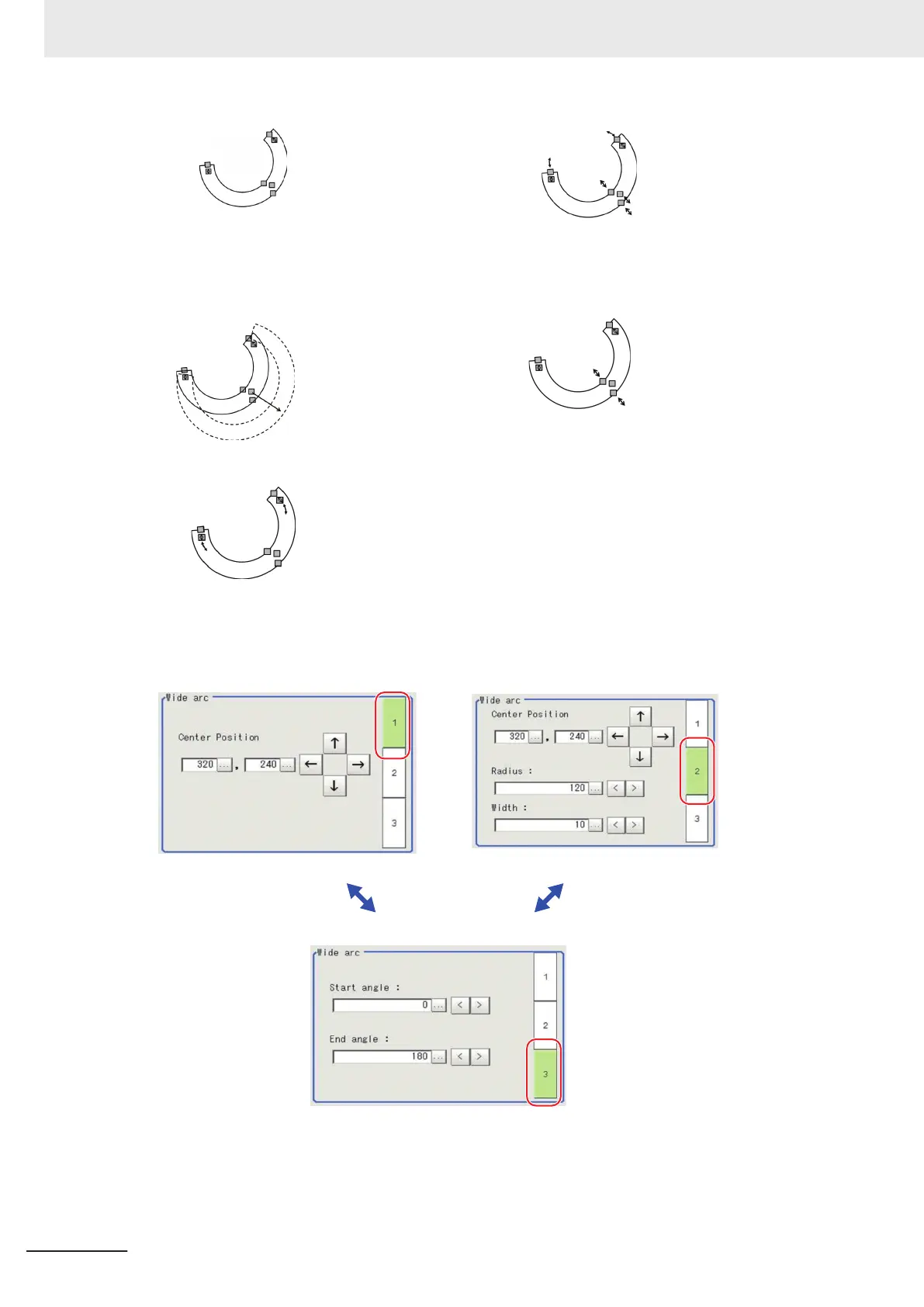

Drag the points.
• Example: When enlarging an arc • Example: When adjusting the width of an arc
Drag the point inside the
arc outward.
Drag a point on the inner
or outer arc inward or
outward.
• Example: When changing the angle of arc (part that is open)
Drag one of the points in-
side of the two lines at
both ends of the arcs.
• Using numbers for setting
The setting area consists of three windows below. Click the 1, 2, or 3 on the right side of the win-
dow to select the setting item.
l
Crosshair Cursor
• Image selection status
Entire image is selected.
3 Basic Operations
3 - 18
FH/FHV Series Vision System User’s Manual (Z365-E1)
