Wiring
48
FQ2 User’s Manual

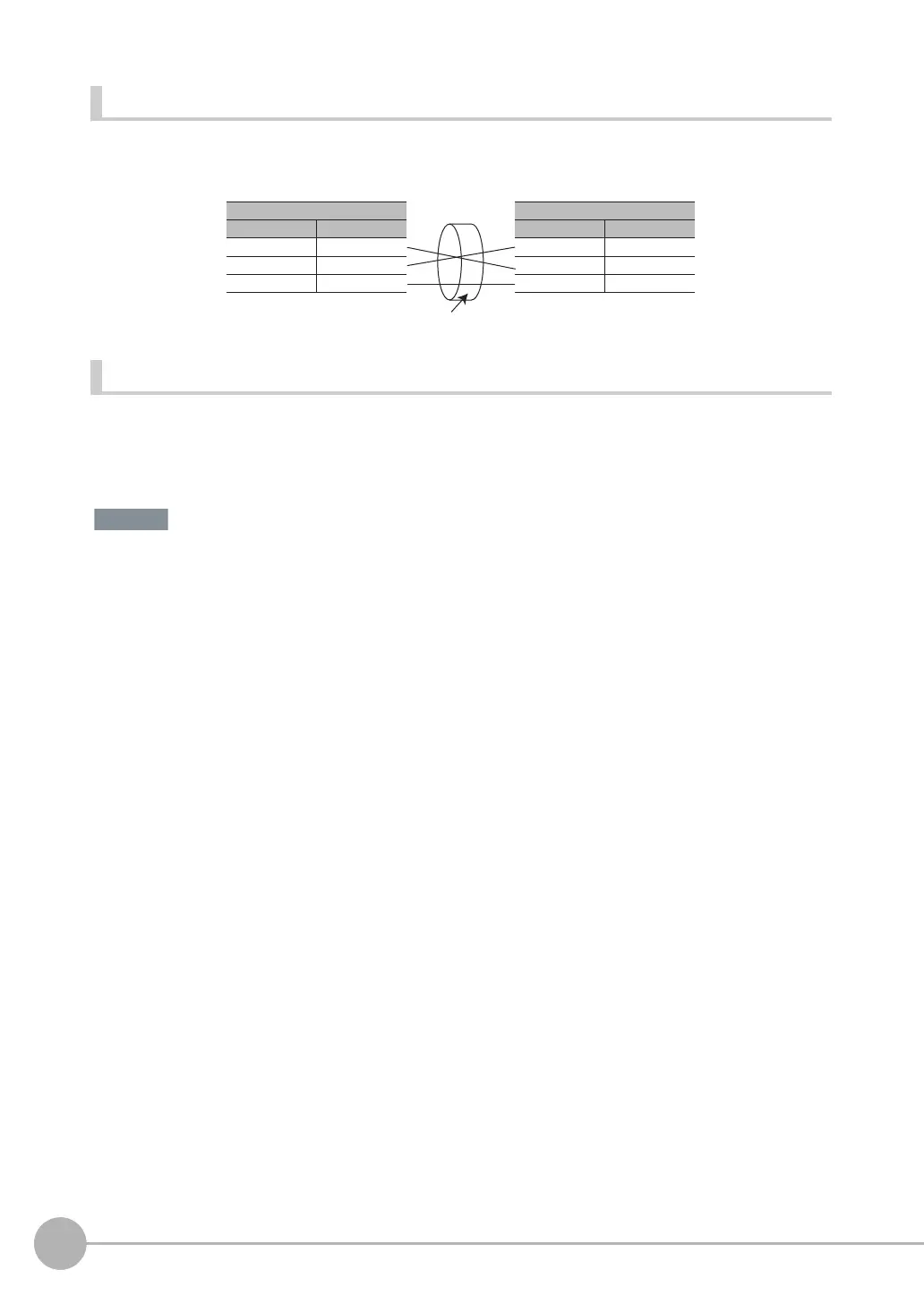

Wiring
The maximum cable length is 15m.
• RS-232C
Connection Method
Align the connector with the socket and press it straight into place, then fix it with the screws on both sides of
the connector.
Turn OFF the power supply before connecting or disconnecting a Cable. Peripheral devices may be damaged if the
cable is connected or disconnected with the power ON.
Use a shielded cable.
Controller
Pin No.
*
*
*
External device to be connected
RS/CS control cannot be used.
Pin No.
2
3
5
Signal name
RD
SD
GND
Signal name
RD
SD
GND
