Chapter 3: Setup
b.
Lift the wheel slightly to relieve pressure on the pin, then remove the pin by
pulling the attached ring. See the following figures.
Save these pins for later service of the drive assemblies.

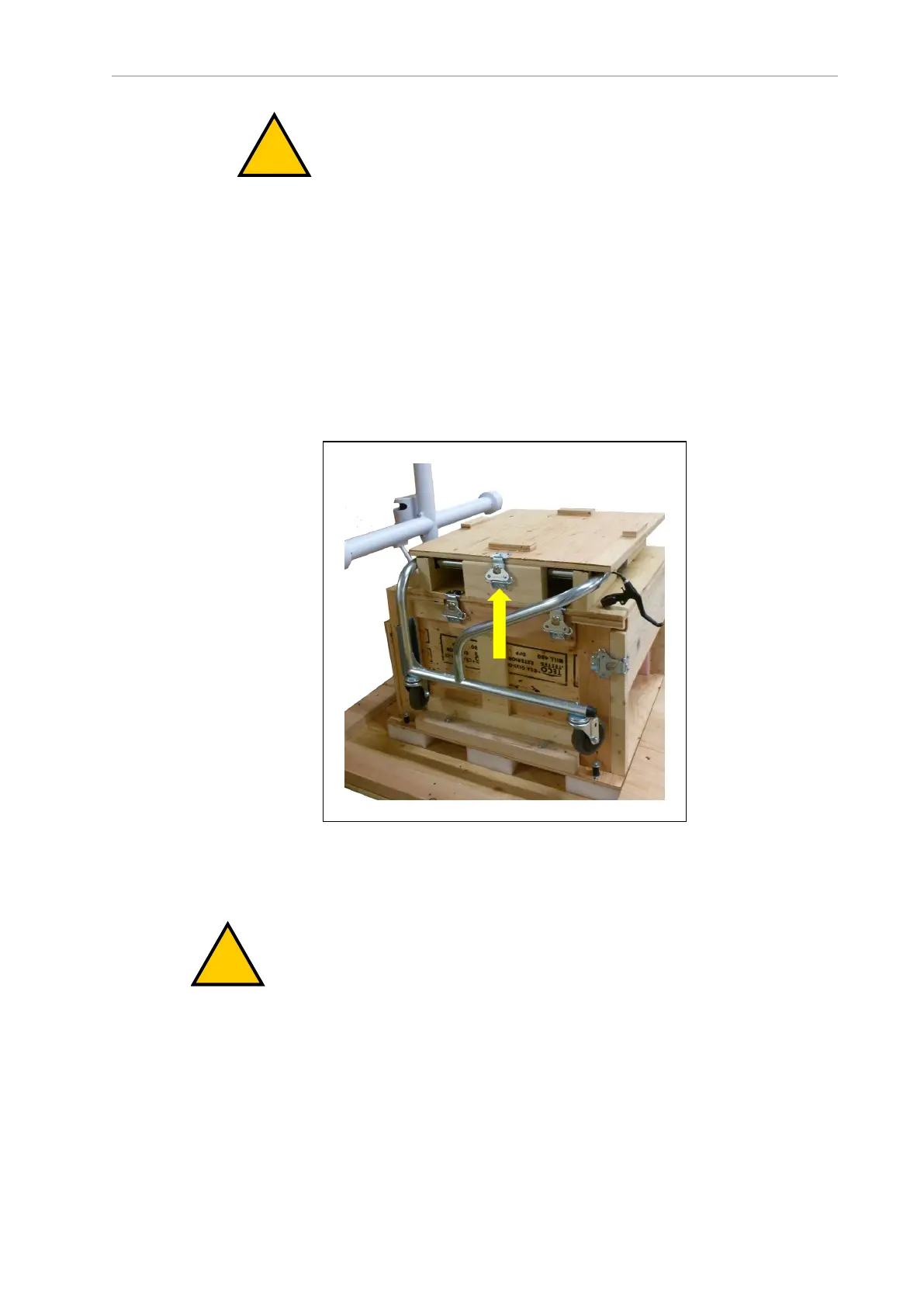

Figure 3-12. Wheel Pin Hole (Yellow Arrow)
Figure 3-13. Wheel Pin
c.
Reinstall the two side skins.
12.
Install the battery in the platform.
The platform brakes cannot be released until the battery is installed. Refer to Installing
the Battery on page 44.
11970-000 Rev M LD-60/90 Platform User's Manual 43
