Chapter 10: Technical Specifications
10.1 Dimension Drawings
190
500
50
379
383
699

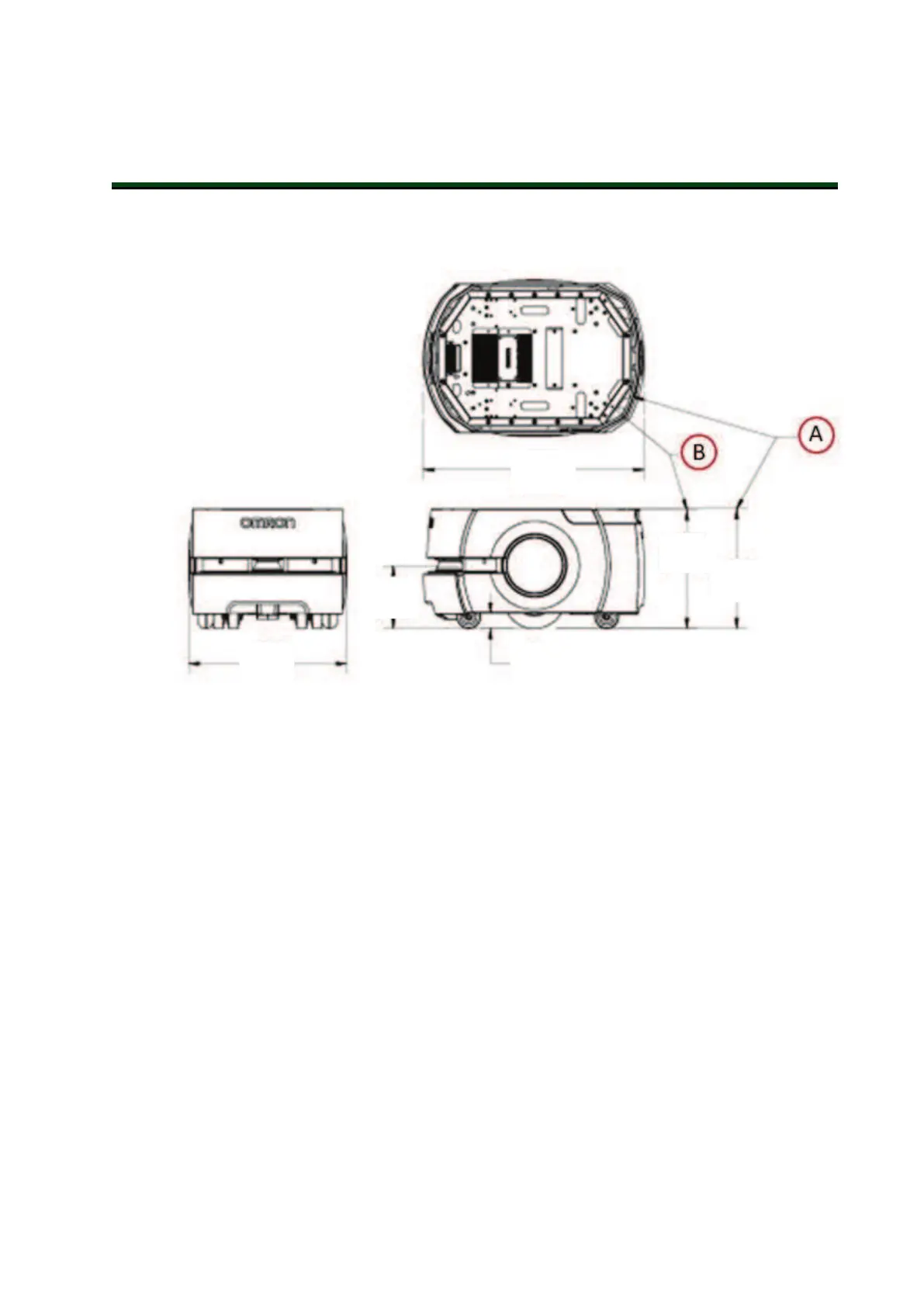

Figure 10-1. Platform Top, Side, and Front Dimensions Showing, (A) Top of Covers, and (B) Mounting
Surface (units are in mm )
NOTE: Refer also to Figure 5-2. and Figure 5-3. for mounting hole dimensions
for the payload structure.
