Chapter 3: Setup
All Mounting Methods
Install the power cord and turn the power switch to ON. The power switch is next to the
power plug. The blue power LED indicator should light.

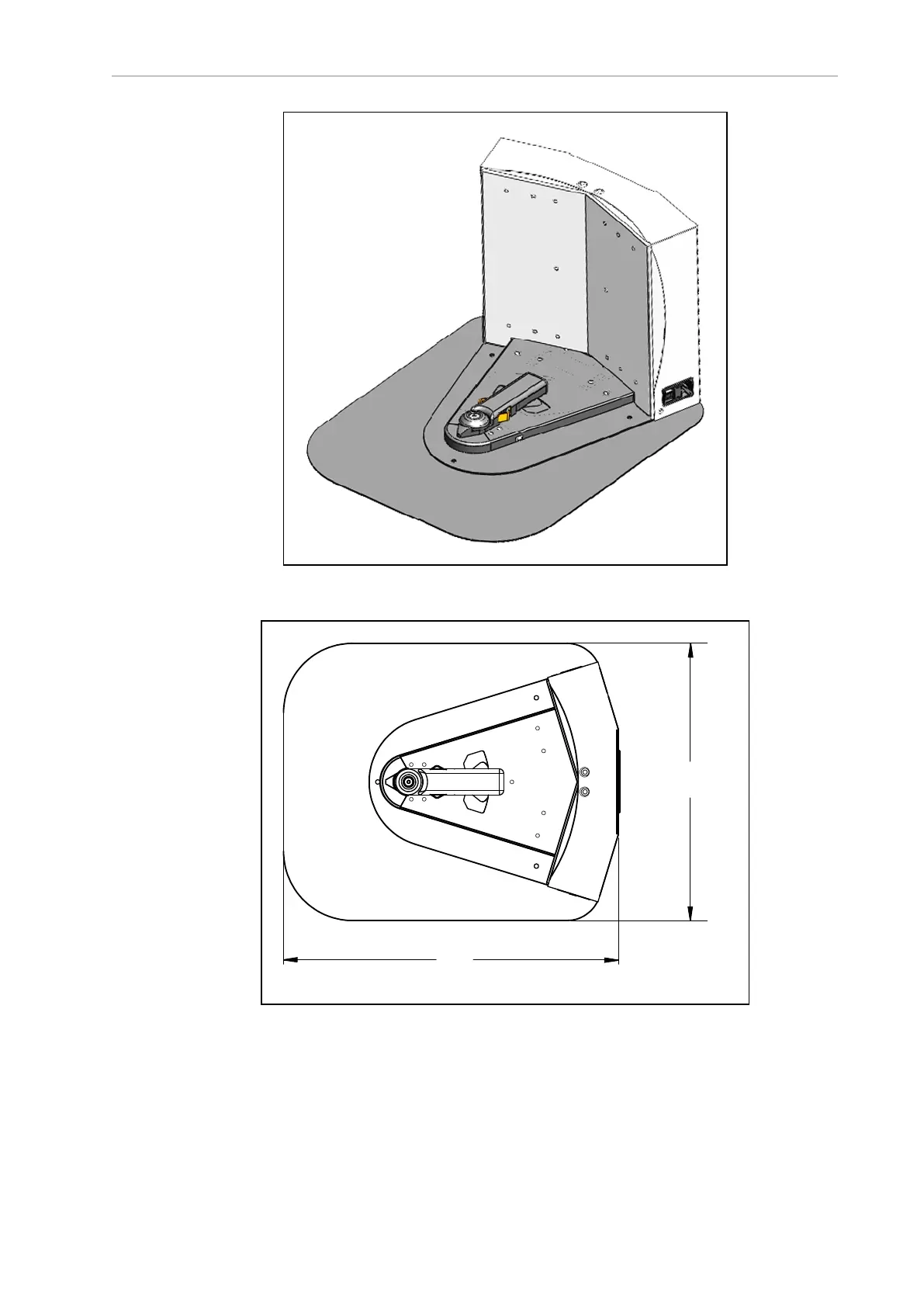

Docking Station Contact Adjustment
The contacts on the docking station have five height settings. The station ships with the height
in the highest setting. The height can be changed by tilting the station enough to see the bot-
tom of the base, making the adjustment accessible.
Additional Information: Squeeze and keep the docking station’s foot against the
base to make this adjustment easier.
Adjust the height of the contacts by using the pull-knob on the bottom of the dock. The height
changes by 4 mm for each notch. See the following figure.
Figure 3-25. Docking Station Contact Adjusting Pull-Knob
Set the height of the contacts so that the roller is high enough to stay in contact with the plat-
form as it is docking, but low enough so that the bi-level of the roller guides the paddle under
the platform.
11970-000 Rev M LD-60/90 Platform User's Manual 55
