3-29
3 Configuring Axes and Axes Groups
NJ/NX-series CPU Unit Motion Control User’s Manual (W507)
3-4 Setting Procedures for Axes Groups
3
3-4-2 Setting Procedure
6

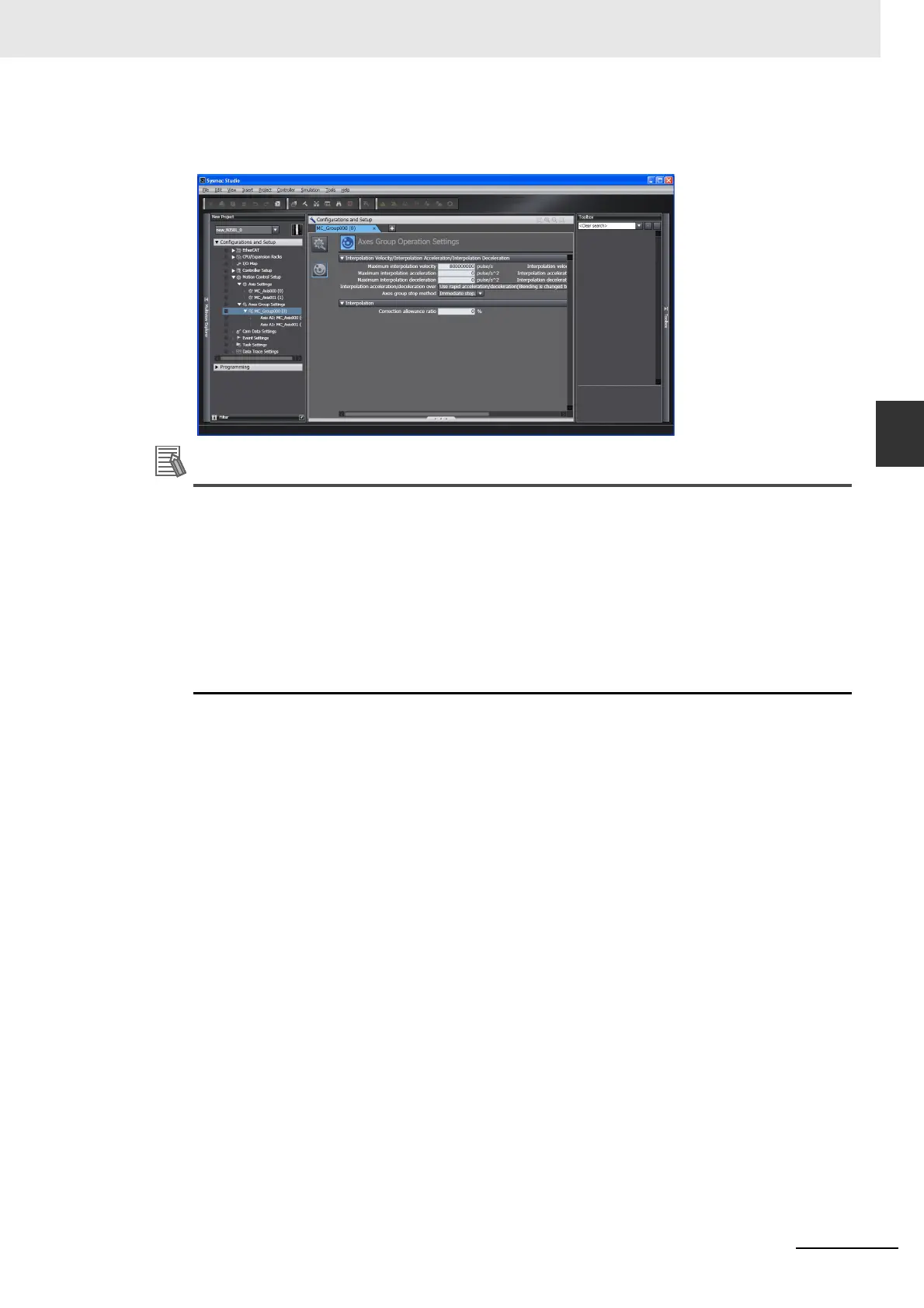

Click the bottom icon. The Axes Group Operation Settings Display is displayed.
Set appropriate values for the settings based on the operating conditions of the device.
Changing Axes Group Variable Names in the User Program
Perform the following two procedures to change Axes Group Variable names that are already
used.
• Change the Axes Group Variable name in the variable table in the variable declarations.
• Change the Axes Group Variable name in the user program.
Even if you change the Axes Group Variable names in the variable table, the Axes Group Vari-
able names in the user program do not change. An error will occur if you use a variable name
that is not declared in the variable table, in the user program. Always change the names in both
places.
To Next Page
