6 Motion Control Programming
6-38
NJ/NX-series CPU Unit Motion Control User’s Manual (W507)
If you edit or overwrite a cam data variable from the user program and then use the MC_SaveCam-
Table instruction to save the cam table to non-volatile memory, you cannot edit the data with the Cam
Editor of the Sysmac Studio. This section describes how to use spreadsheet software to edit the data
and then use it as a cam table.
* Use the Synchronization menu command of the Sysmac Studio to upload and download the project.
 Saving a Cam Table from Non-volatile Memory to a CSV File
• Right-click a cam profile that you edited in the Cam Data Settings of the Sysmac Studio and select
Transfer Cam Table [Controller to File] from the menu.
• The Save Dialog Box is displayed. Enter the file save location and file name, and then click the
Save Button.
 Editing CSV Files
• Use spreadsheet software or other CSV-compatible software to edit the CSV file.
 Transferring the CSV File to the CPU Unit
• Right-click the cam profile to download and select Transfer Cam Table [File to Controller] from
the menu.
• The Open File Dialog Box is displayed. Specify the file to transfer, and then click the OK Button.
• To enable the cam table that you transferred, reset the Controller or cycle the power supply to the
Controller after the cam table is transferred.
Precautions for Correct UsePrecautions for Correct Use
• Synchronize the data with the Controller before you transfer a cam table from a file to the Con-
troller.
• If you transfer the cam table to the Controller during a synchronization operation after you
transfer a cam table from a file to the Controller, the cam table in the Controller is replaced with
the data in the Cam Data Settings. Either transfer the cam data from the file to the Controller
again, or do not include the Cam Data Settings in the synchronization data.

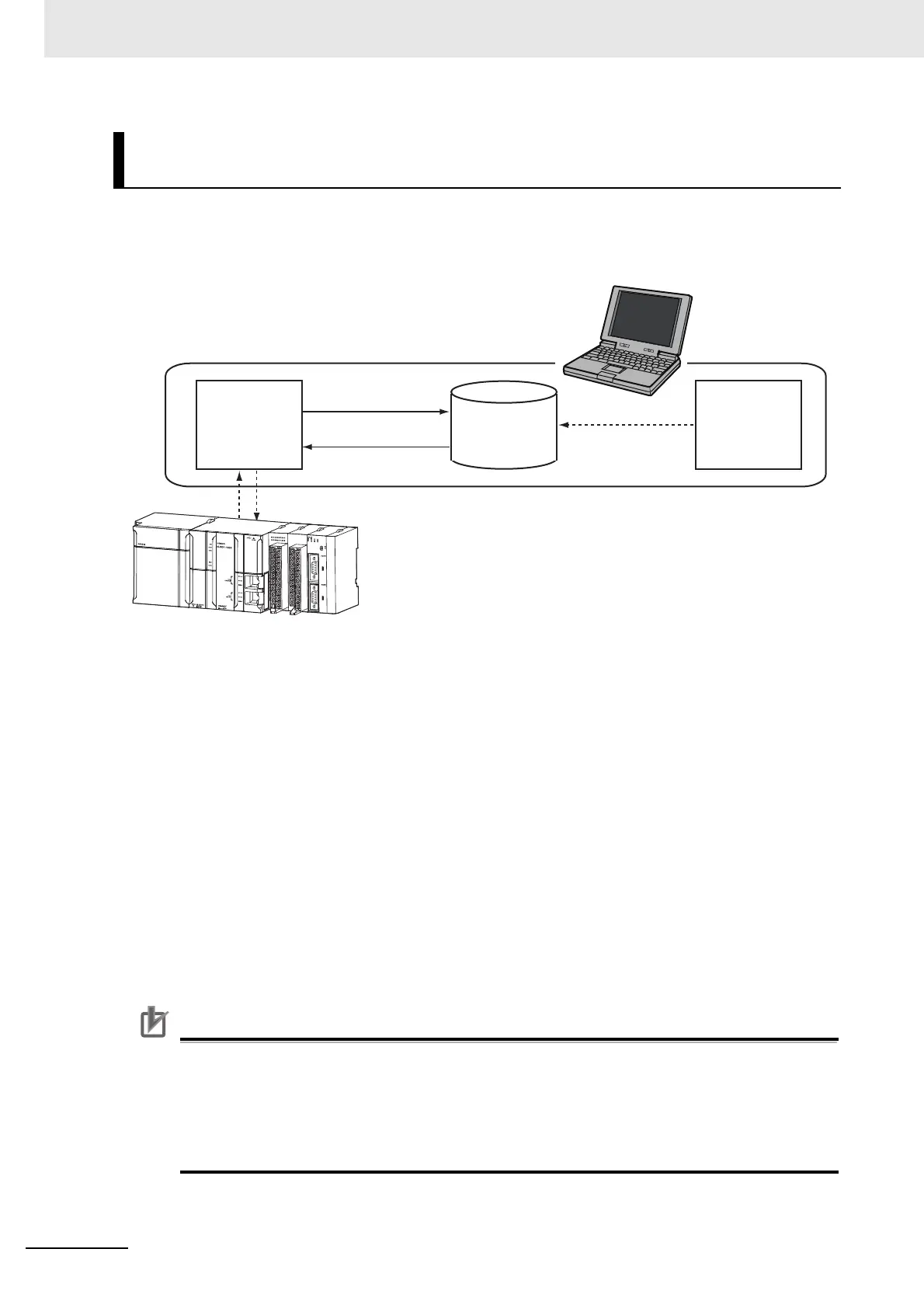

Editing a Cam Data Variable on the Computer after Editing It from
the User Program
Spreadsheet
software
Download
Transfer Cam Table [Controller to File]:
Uploads the cam table from the Controller and saves it in a CSV file.
Transfer Cam Table [File to Controller]:
Downloads the cam table from a CSV file to the Controller.
Save/Export
Read/Import
Edit
Upload
Sysmac Studio
ID211
0
1
3
2
4
5
7
6
8
9
11
10
12
13
14
15
DC24
V
7mA
COM
MAC
H
N
o
.
AD042
RUN
ERC
ERH
B1 A1
x1
0
1
x1
0
0
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
1 2 3
4 5 6
7
8
9
10
11
12 13
14 15
CSV file
