A-27
Appendices
NJ/NX-series CPU Unit Motion Control User’s Manual (W507)
A-3 Connecting to Encoder Input Terminals
A
A-3-2 Settings for Encoder Input Terminals

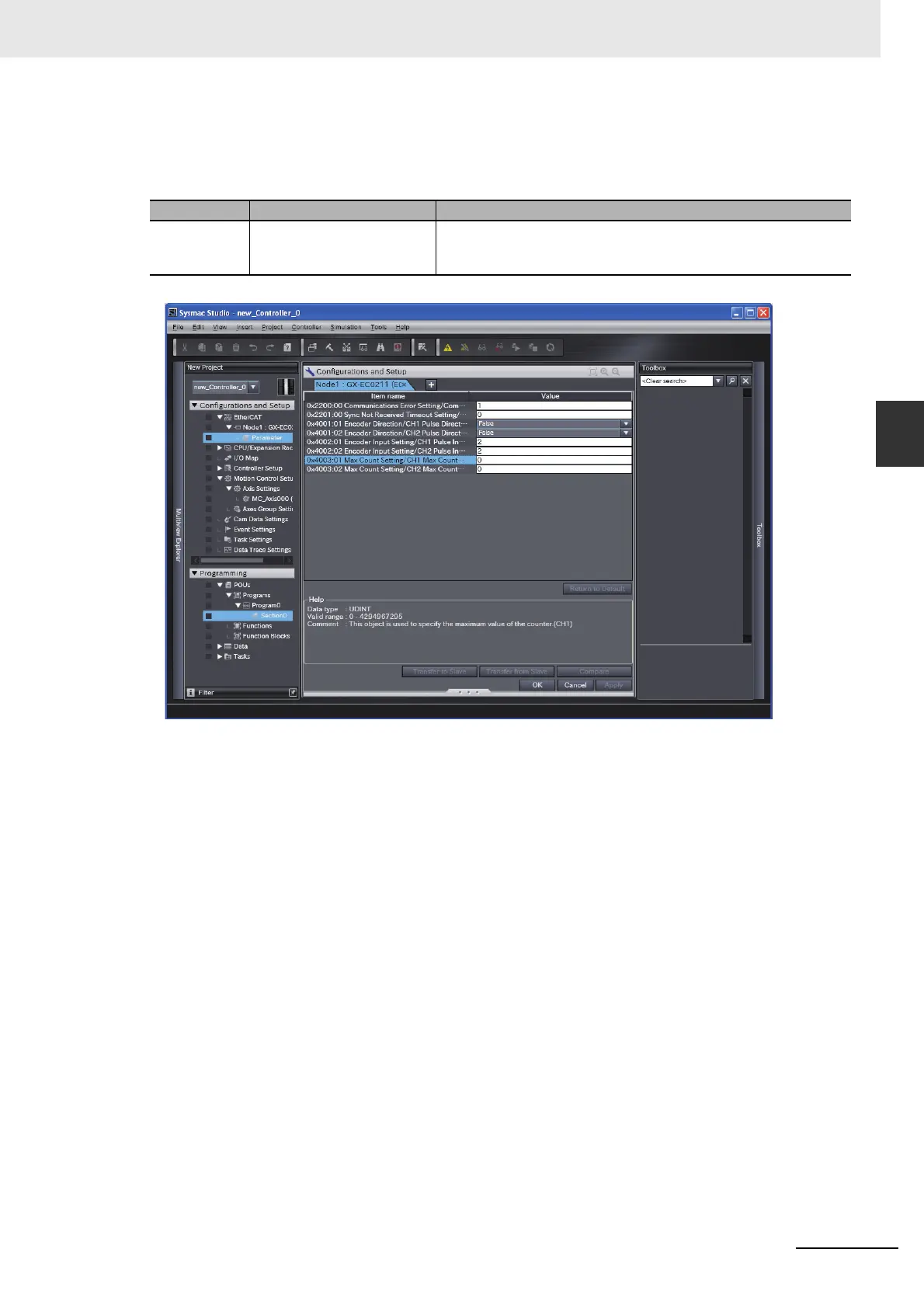

The maximum value of the ring counter for the Encoder Input Terminal is set on the EtherCAT Tab Page
in the Sysmac Studio.
The setting is as follows:
Index Object name Set value
0x4003 Max Count Setting (maxi-
mum value of the ring
counter)
Set this parameter to the same value as the Modulo Maximum
Position Setting Value in the Servo Drive Settings of the axis
parameters of the MC Function Module.
To Next Page
