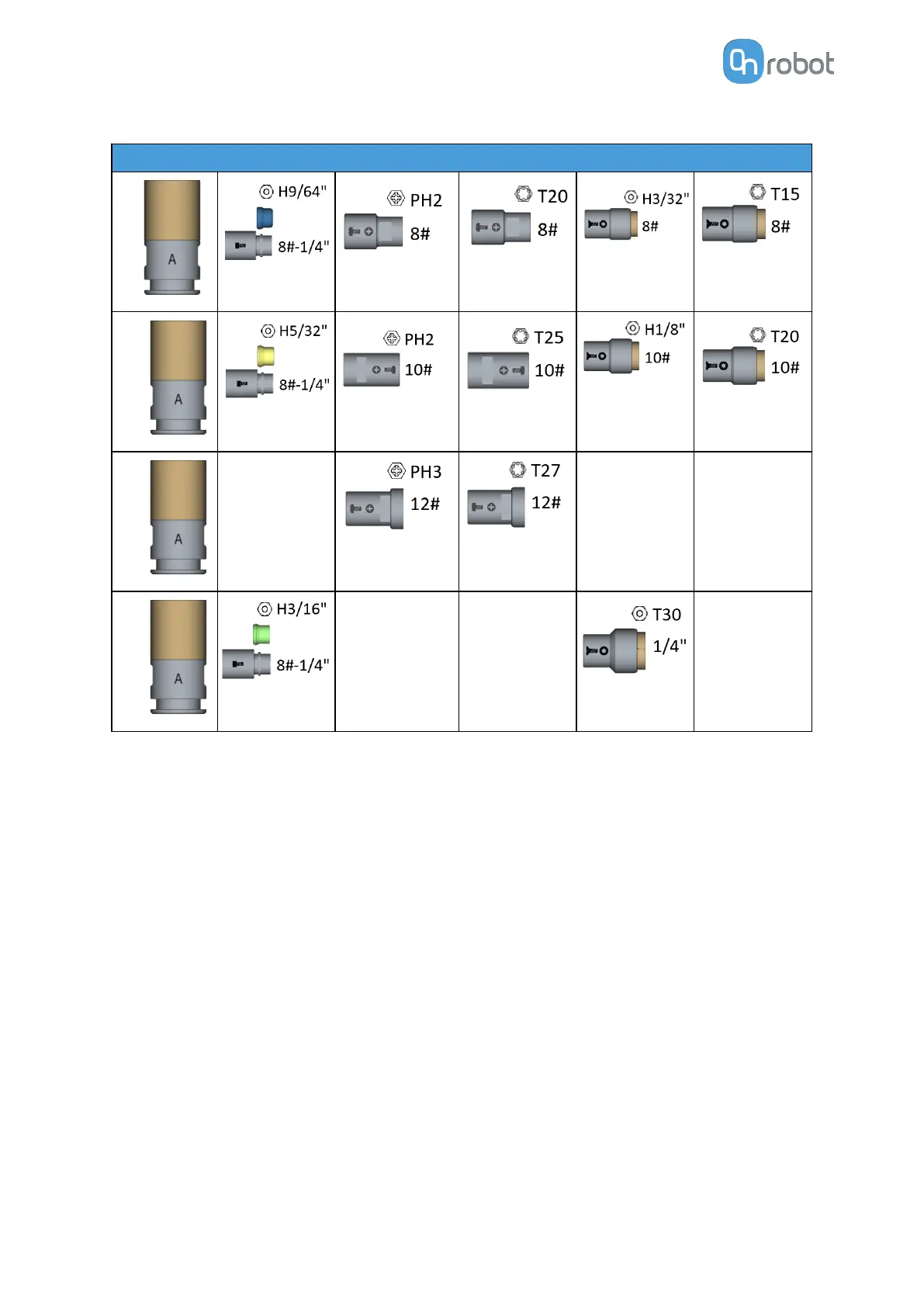

Items Needed Depending on Screw Type and Size for US Standard Screws
8#
10#
12#
N/A N/A N/A
1/4"
N/A N/A N/A
1. Screws
The
first step is to know what type of screw is going to be used. The screw type will define
what type of bit, screw carrier, screw fix (if any) and bit holder shall be used.
The recommended screw types for the Screwdriver are the ones that have the properties
mentioned previously on the Supported Screws table.
2. Bit Holder
Select the right bit holder depending on the screw type and size to maximize the
ecacy of
the Screw-bit System based on the table in section Items Needed Depending on Screw Type
and Size for Metric or Items Needed Depending on Screw Type and Size for US Standard
Screws.
The Bit holder generates a magnetic force that will keep the screw attached and aligned to
the bit. The Bit holder A generates a higher magnetic force than B. Therefore, the bit holder B
is commonly used for the smaller and lighter screws.
3. Bits
Select the right bit depending on the screw type and size to maximize the
ecacy of the
Screw-bit System based on the table in section Items Needed Depending on Screw Type
