4.2.5.7. VG10

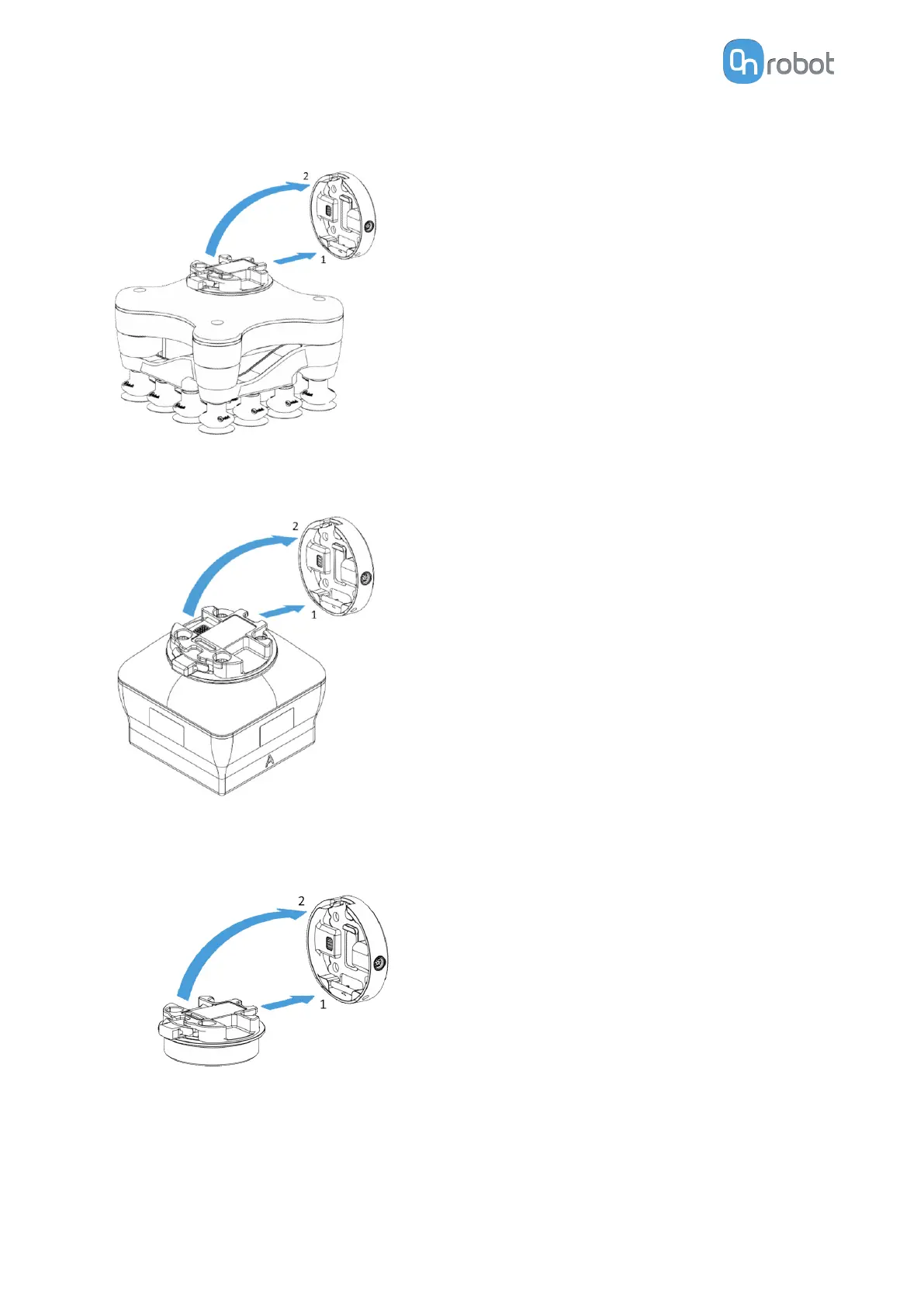

Step 1:
Move the tool close to the Quick Changer as
illustrated.
The hook mechanism (rod and hook tongue)
will keep the lower part locked once mounted.
Step 2:
Flip the tool until it is fully mated, and you hear
a clicking sound.
To unmount the tool, press the aluminum
button on the Quick Changer and repeat the
steps in the reverse order.
4.2.5.8. VGC10
Step 1:
Move the tool close to the Quick Changer as
illustrated.
The hook mechanism (rod and hook tongue)
will keep the lower part locked once mounted.
Step 2:
Flip the tool until it is fully mated, and you hear
a clicking sound.
To unmount the tool, press the aluminum
button on the Quick Changer and repeat the
steps in the reverse order.
4.2.5.9. Quick Changer - Tool Side
Step 1:
Move the tool close to the Quick Changer as
illustrated.
The hook mechanism (rod and hook tongue)
will keep the lower part locked once mounted.
Step 2:
Flip the tool until it is fully mated, and you hear
a clicking sound.
To unmount the tool, press the aluminum
button on the Quick Changer and repeat the
steps in the reverse order.
