Install a PCIe Card or Filler
7.

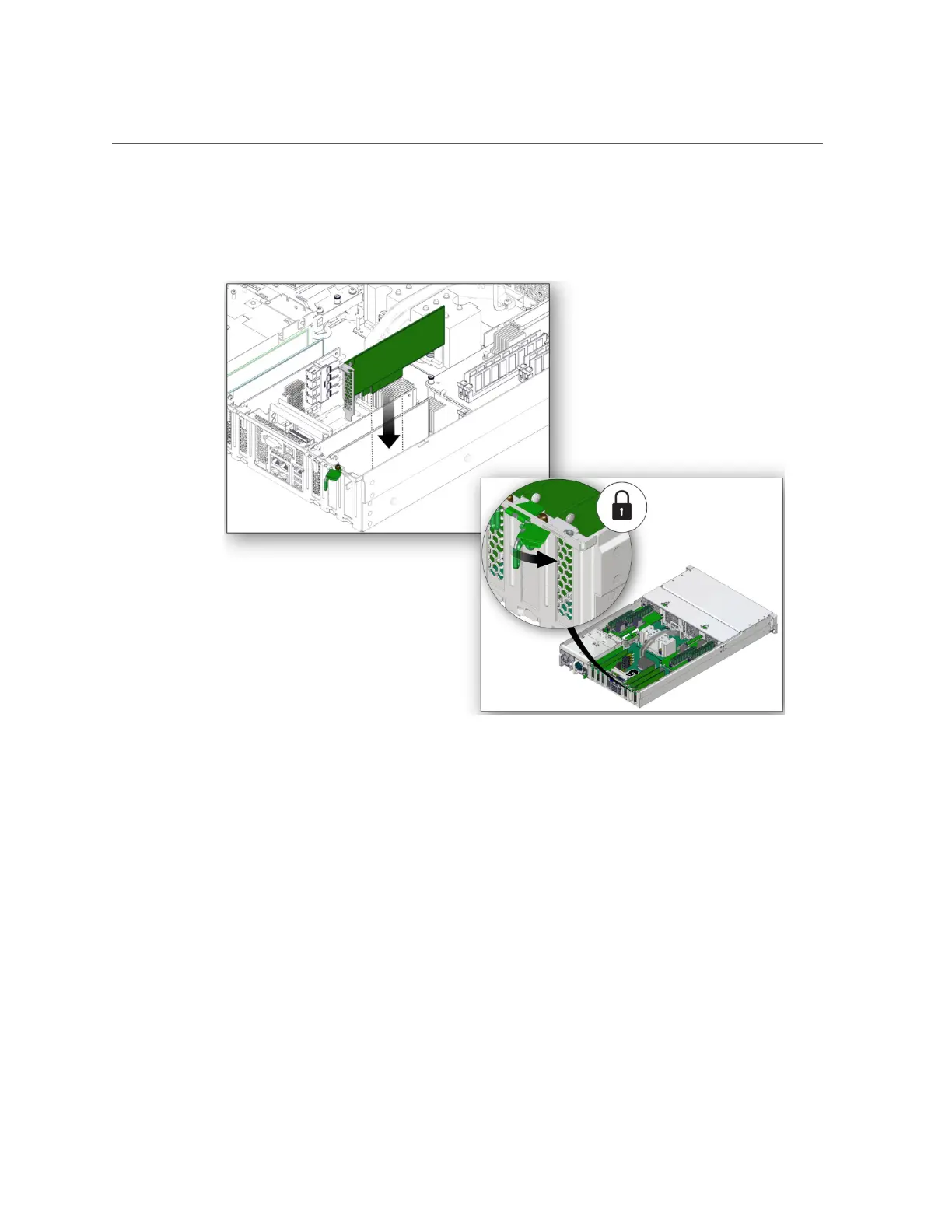

Install the PCIe card or filler into the slot (panel 1) and rotate the PCIe locking
mechanism to secure the PCIe card or filler in place (panel 2).
8.
Return the server to operation.
See “Returning the Server to Operation” on page 153.
9.
Refer to the documentation shipped with the PCIe card for information about
configuring the PCIe card, including installing required operating systems.
To create or recover RAID configurations, refer to the LSI MegaRAID SAS Software User's
Guide, which is available at:
https://www.broadcom.com/support/oem/oracle/
Related Information
■
“PCIe Card Configuration” on page 107
■
“Remove a PCIe Card or Filler” on page 108
Servicing PCIe Cards 111
