Memory Riser and DIMM FRU Names
As of System Firmware version 9.10.3, the following DIMM configurations are supported.

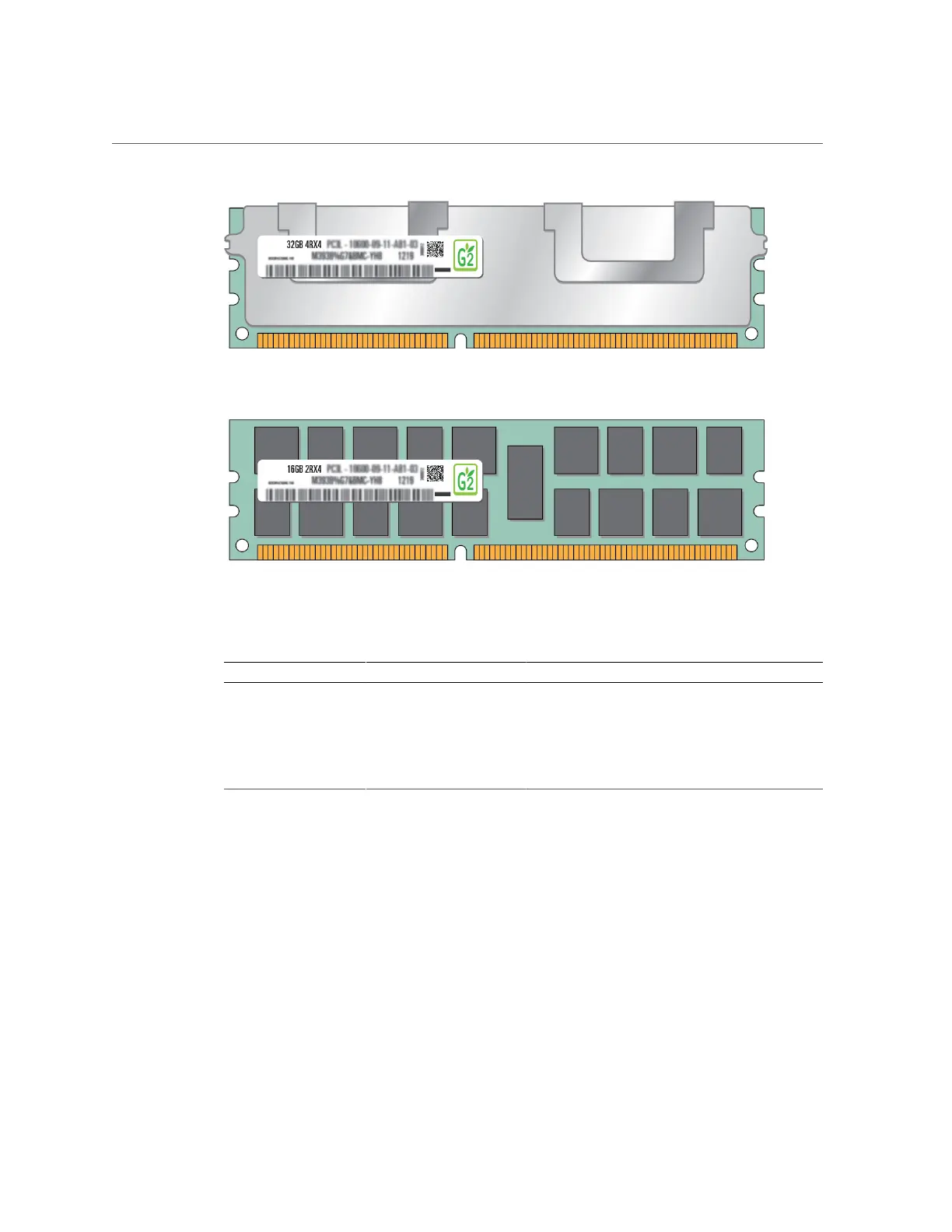

DIMM Capacity DRAM Density Rank Classification Label
16 Gbyte 4 Gbit Dual-rank x4 2Rx4
32 Gbyte 4 Gbit Quad-rank x4 4Rx4
32 Gbyte 8 Gbit Dual-rank x4 2Rx4
64 Gbyte 8 Gbit Quad-rank x4 4Rx4
128 Gbyte 16 Gbit Quad-rank x4 2S2Rx4
Memory Riser and DIMM FRU Names
The server can contain 16 DIMMs. Eight DIMMs are installed on the motherboard. An optional
eight DIMMs can be installed on two memory risers, mounted on the motherboard above the
initial DIMMs. Four DIMMs are installed on each memory riser.
Labels on the transparent airflow cover identify the naming of memory risers and DIMMs.
Servicing Memory Risers and DIMMs 85
