Oracle SPARC T8-1 - Rear Panel Components

Rear Panel Components
Related Information
■
“Rear Panel Components” on page 13
■
“Internal Component Locations” on page 14
■
“Server Block Diagram” on page 17

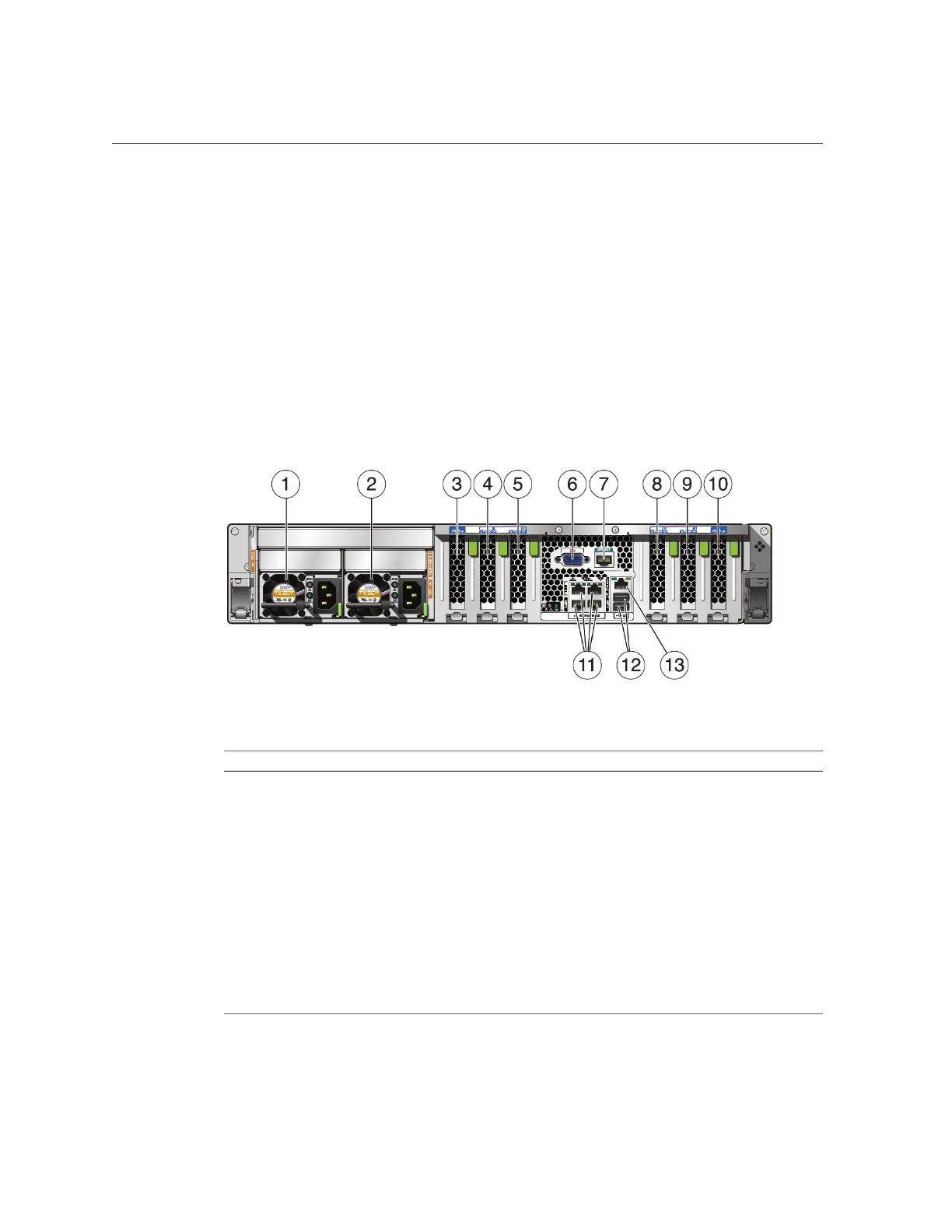

Rear Panel Components
No. Description Links
1 Power supply 0 “Servicing Power
Supplies” on page 77
2 Power supply 1 “Servicing Power
Supplies” on page 77
3 PCIe card slot 1 “Servicing PCIe Cards” on page 107
4 PCIe card slot 2 “Servicing PCIe Cards” on page 107
5 PCIe card slot 3 “Servicing PCIe Cards” on page 107
6 DB-15 video connector
7 Serial management (SER MGT) RJ-45 serial port
8 PCIe card slot 4 “Servicing PCIe Cards” on page 107
9 PCIe card slot 5 “Servicing PCIe Cards” on page 107
10 PCIe card slot 6 “Servicing PCIe Cards” on page 107
Identifying Components 13
