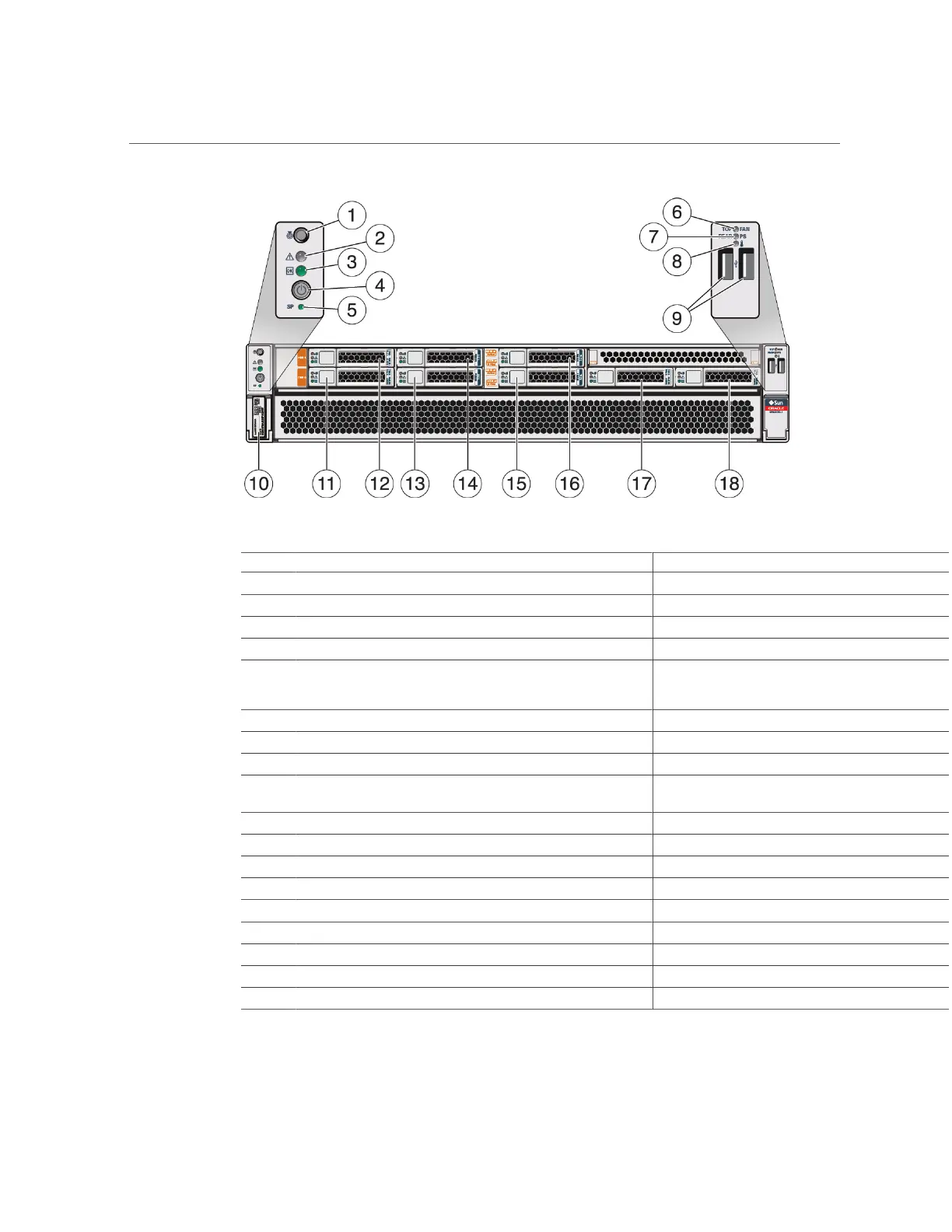

Front Panel Components
No. Description Links
1 Server Locate indicator and button (white) “Front Panel Controls and LEDs” on page 28
2 Service Required LED (amber) “Front Panel Controls and LEDs” on page 28
3 Power LED (green) “Front Panel Controls and LEDs” on page 28
4 Server Power button “Front Panel Controls and LEDs” on page 28
5 SP Fault LED (green) “Front Panel Controls and LEDs” on page 28
“Servicing the SPM” on page 121
6 Fan Service LEDs (amber) “Servicing Fan Modules” on page 69
7 Power Supply (PS) Service LED (amber) “Servicing Power Supplies” on page 77
8 Server Overtemp LED (amber) “Front Panel Controls and LEDs” on page 28
9 USB 2.0 connectors (2) “Identifying Ports” in SPARC T8-1 Server Installation
Guide
10 Serial number “Find the Server Serial Number” on page 42
11 HDD 0 “Servicing Drives” on page 59
12 HDD 1 “Servicing Drives” on page 59
13 HDD 2 or NVMe 0 “Servicing Drives” on page 59
14 HDD 3 or NVMe 1 “Servicing Drives” on page 59
15 HDD 4 or NVMe 2 “Servicing Drives” on page 59
16 HDD 5 or NVMe 3 “Servicing Drives” on page 59
17 HDD 6 or NVMe 4 “Servicing Drives” on page 59
18 HDD 7 “Servicing Drives” on page 59
12 SPARC T8-1 Server Service Manual • January 2022
