Oracle X6 series User Manual

Modify iSCSI Virtual Drive Properties in UEFI Boot Mode (BIOS)
60 Oracle X6 Series Servers Administration Guide • April 2016

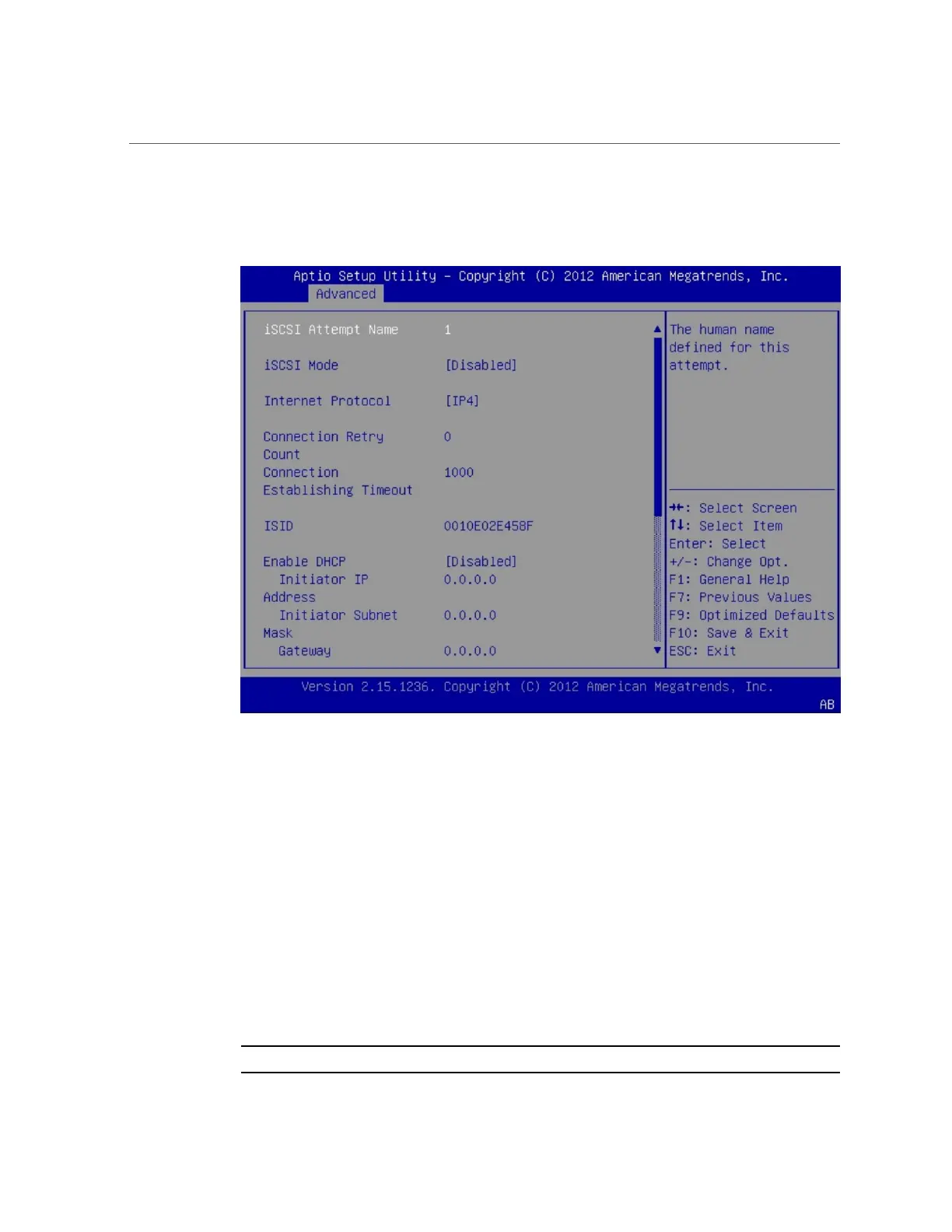

The Port Configuration screen appears.
7.
In the Port Configuration screen, perform the following steps:
a.
Set the iSCSI Mode property to Enabled.
b.
Set the Internet Protocol property to IPv4.
c.
Set the Connection Retry Count property to 1.
d.
Set the Enable DHCP property to Enabled or Disabled to specify an
addressing method for the iSCSI initiator.
e.
If you set the Enable DHCP property to Disabled, specify the Initiator IP
Address, Initiator Subnet Mask, and Gateway.
Note - Use the same subnet.

Oracle X6 series Specifications

General

Cores per Processor	Up to 22 cores
Processor	Intel Xeon E5-2600 v4 series
Networking	10GbE
Form Factor	Rackmount
Expansion Slots	PCIe slots available
Power Supply	Redundant power supplies
Storage	supports SAS, SATA, and NVMe drives
