Oracle X7-2 Installation Guide

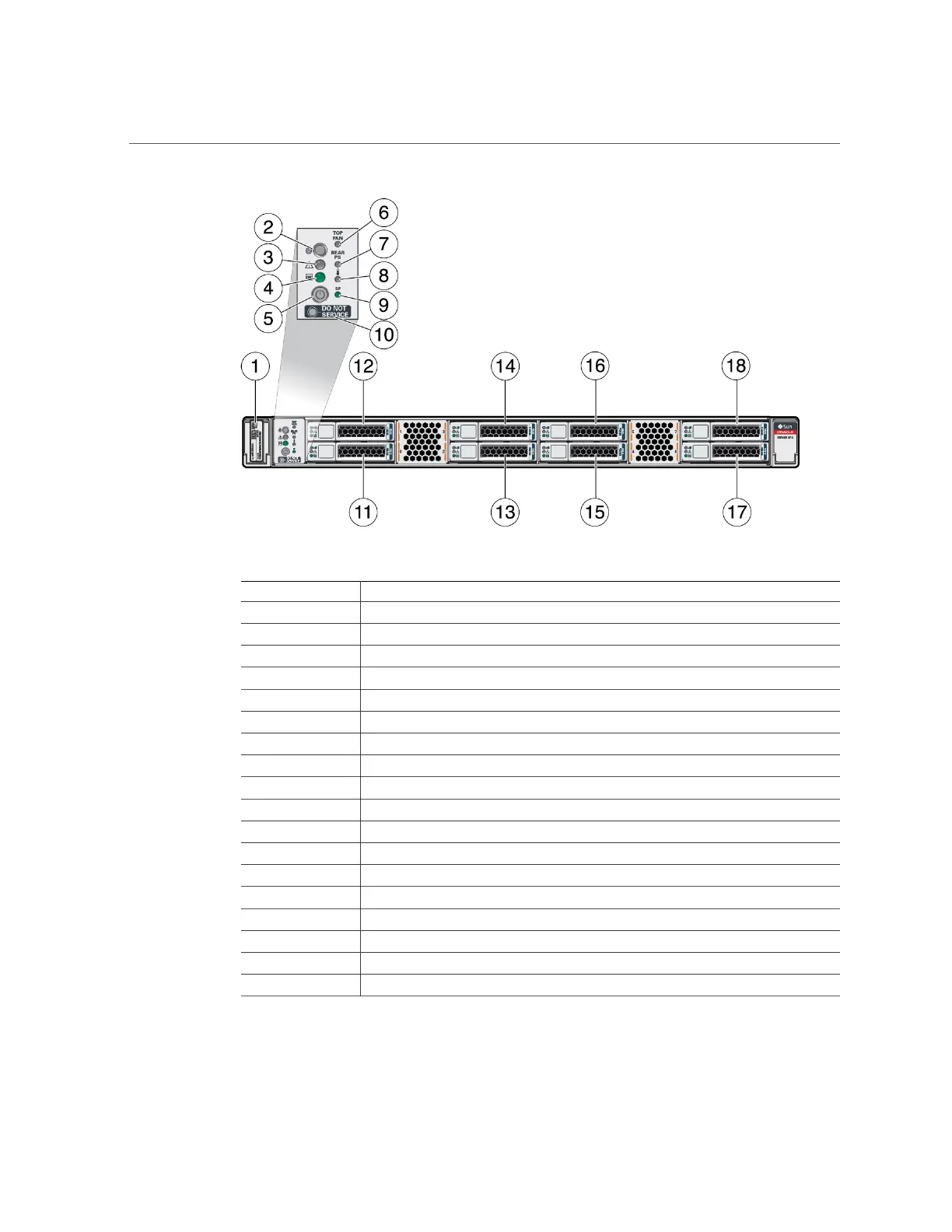

X7-2 Front Panel Features
Call Out Description
1 Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag
2 Locate LED/button: white
3 Fault - Service Required LED: amber
4 System OK LED: green
5 Power button
6 Service Required LED: Top: Fan Module (amber)
7 Service Required LED: Rear: Power Supply (amber)
8 Service Required LED: Overtemp Icon: System Over Temperature Warning (amber)
9 SP OK LED: green
10 Do Not Service Indicator
11 Storage drive 0 HDD/SSD/NVM-Express
12 Storage drive 1 HDD/SSD/NVM-Express
13 Storage drive 2 HDD/SSD/NVM-Express
14 Storage drive 3 HDD/SSD/NVM-Express
15 Storage drive 4 HDD/SSD/NVM-Express
16 Storage drive 5 HDD/SSD/NVM-Express
17 Storage drive 6 HDD/SSD/NVM-Express
18 Storage drive 7 HDD/SSD/NVM-Express
28 Oracle Servers X7-2 and X7-2L Installation Guide • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
