Oracle X7-2 Installation Guide

X7-2L Back Panel Features
Call Out Description
17 Storage drive 6 HDD/SSD/NVM-Express
18 Storage drive 7 HDD/SSD/NVM-Express
19 Storage drive 8 HDD/SSD/NVM-Express
20 Storage drive 9 HDD/SSD/NVM-Express
21 Storage drive 10 HDD/SSD/NVM-Express
22 Storage drive 11 HDD/SSD/NVM-Express
Related Information
■
“X7-2L Back Panel Features” on page 32
X7-2L Back Panel Features

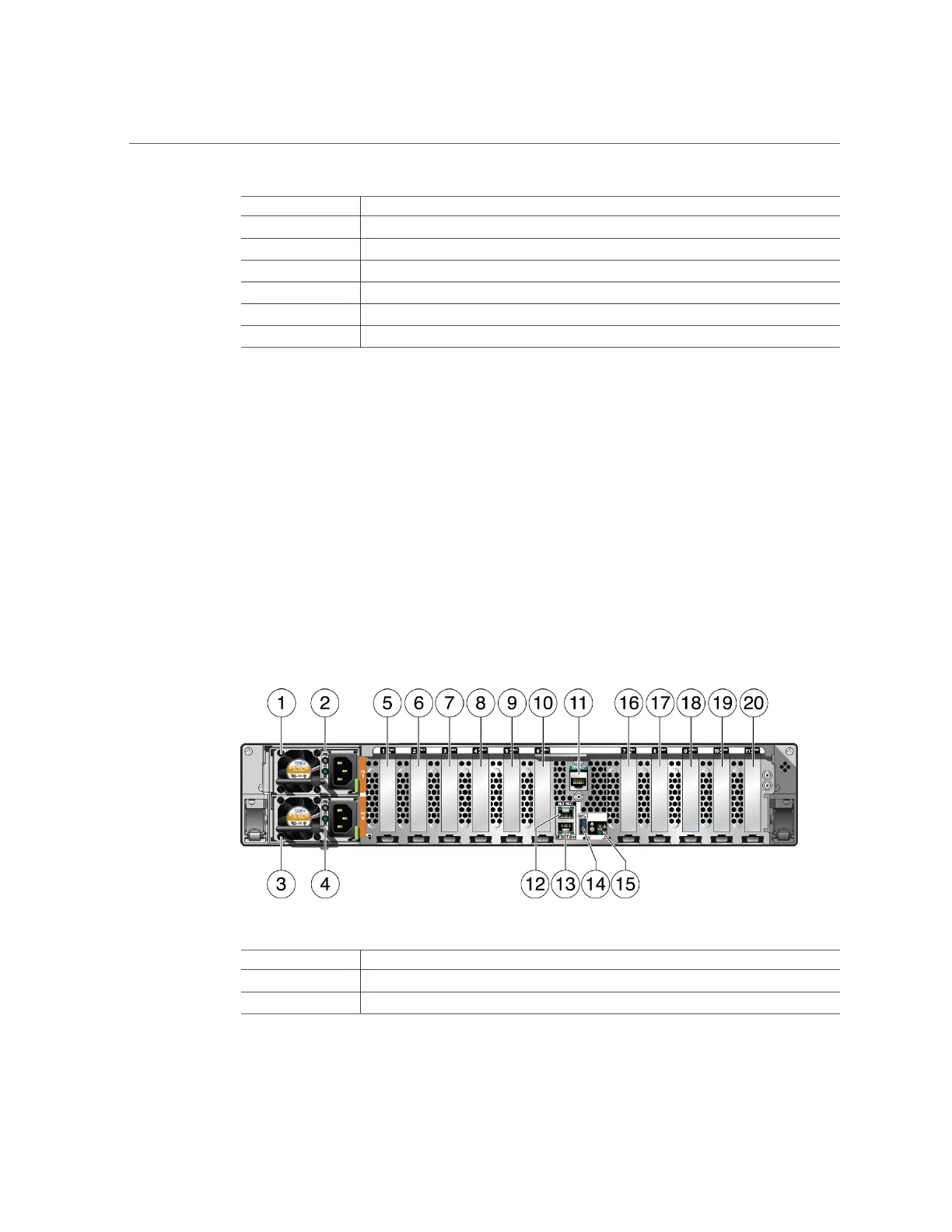

This section shows the Oracle Server X7-2L back panel and the location of status indicators
(LEDs), connectors, and PCIe slots.
For information about how to interpret the status indicators (LEDs), refer to the Oracle Server
X7-2L Service Manual.
Call Out Description
1 Power supply unit 0 (PSU0)
2 Power Supply (PS) 0 status indicators: Service Required LED: amber AC OK LED: green
32 Oracle Servers X7-2 and X7-2L Installation Guide • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
