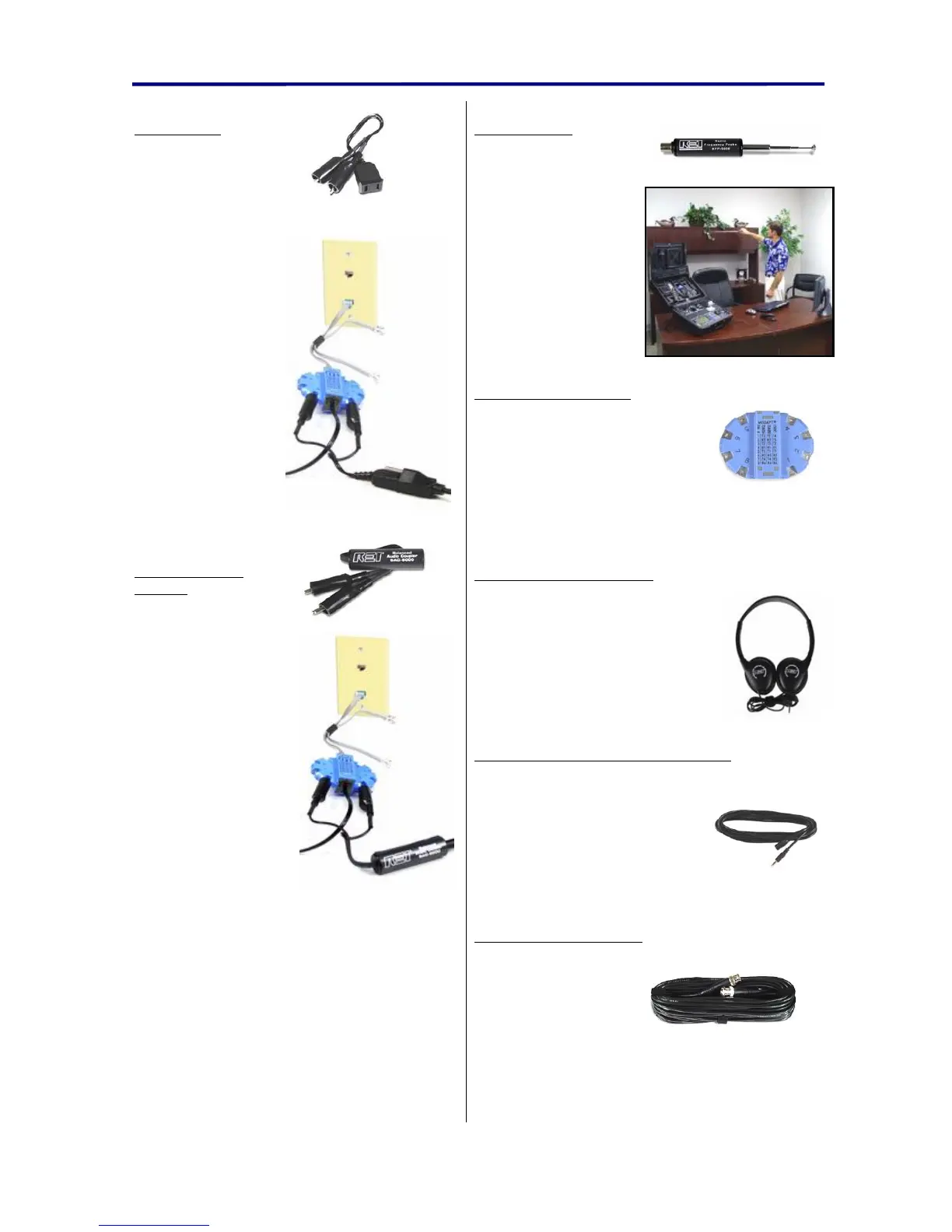

SECTION 1: INTRODUCTION AND EQUIPMENT DESCRIPTION
9 REI OSC-5000E
6. VLF Adapter
The VLF adapter
provides the ability to
detect carrier current
devices on
miscellaneous low
voltage wiring. The VLF
adapter is connected to
the OSCOR AC power
cord (while OSCOR is
running on battery) and
connected to any wire
or cable that is
suspected of containing
carrier current
transmissions.
7. Balanced Audio
Coupler*
The Balanced Audio
Coupler provides a
balanced and isolated
connection for testing
miscellaneous wiring for
audio. Examples include
testing telephone, fax,
data lines, or unknown
wiring or cables. The
BAC is connected to the
provided audio patch
cord and plugged into
the EXT. REF. Port.
(See page 104 Testing
Telephones with
OSCOR.)
*WARNING: Before attempting to connect the
Balanced Audio Coupler to an unknown wire or cable,
you must first determine if it carries a Hazardous
voltage. The coupler should not be connected to
voltages greater than 250 volts. Unit damage or
personal injury may result.
8. Locator Probe
The Locator Probe is an RF
antenna used to locate RF
Digital and Analog
transmitters. The probe
provides a localized signal
strength input that the
OSCOR converts to a
variable frequency tone (a
higher tone implies closer
proximity). (See page 58
Locating the Threat.)
9. Modular Phone Adapter
The MPA provides easy access to
telephone conductors for testing. The
universal connector works for 2,4,6,
& 8 conductor telephone systems.
(See page 104 Testing Telephones
with OSCOR).
10. Low Leakage Headphones
When using the headphones, make
sure both earpieces are close against
your ears, since it is possible for a
highly sensitive audio surveillance
device to “hear” the headphones
(feedback is possible).
11. Miniplug Extension Cable 12 ft (3.66M)
The Miniplug Extension with 3.5 mm male to female
connectors is used as a headphone extension when
monitoring a detected device’s audio.
It also allows the Loop Antenna to be
used apart from the Antenna Array
panel.
12. RF Extension Cable 12 ft
12 ft (3.66 M) The RF
extension with male-to-
male BNC connectors,
allows connection of the
Locator Probe for
pinpointing the location
of a detected surveillance device.
