OSCOR OSC 5000 - Figure 51 Auto Mode Setup Options; Figure 52 Auto Mode Correlate Options

SECTION 4: OSCOR AUTOMATIC OPERATION
73 REI OSC-5000E
OUTPUT OPTIONS – Sets up the outputs for automatic operation. These
outputs include threat Alert tone, threat signal plotting, automat
F3 –
ic audio
recording of threat signals, and status of the OSCOR display.

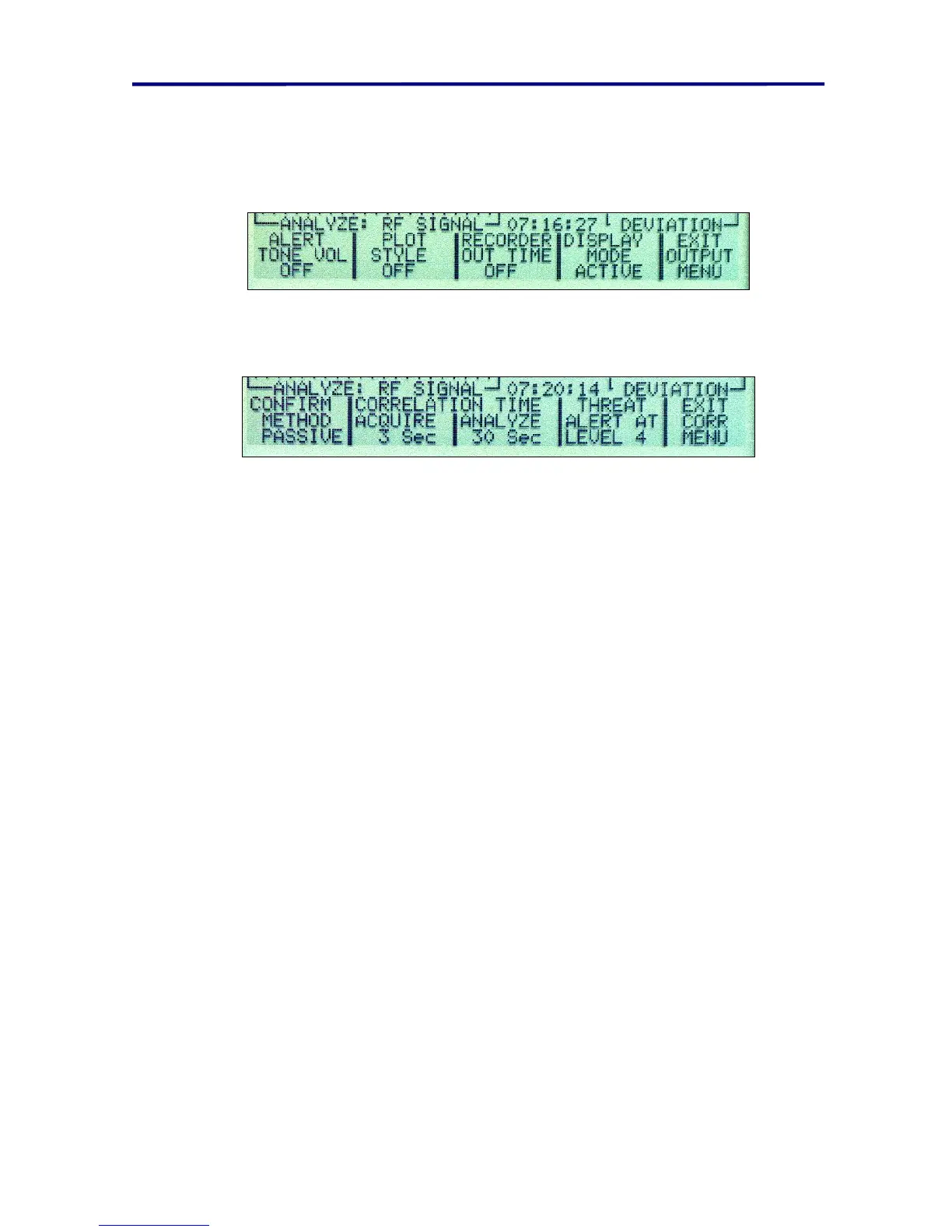

FIGURE 51 AUTO MODE SETUP OPTIONS
F4 – CORRELAT OPTIONS – Sets up the Correlator operation in the automatic
mode.
FIGURE 52 AUTO MODE CORRELATE OPTIONS
The above menus are described in further detail in the following subsections.
