SECTION 4: OSCOR AUTOMATIC OPERATION
REI OSC-5000E 80
STEP 3 LOAD FRIENDLY DATABASE
Pressing the F3 button in the Automatic mode main menu starts the load friendly process.
In this mode, the OSCOR first updates the Friendly Trace Spectrum and then begins
search through the frequency range to store continuous wave signals. This mode is to be
used away from the target sweep environment so that the OSCOR can be pre-loaded
with the majority of the ambient environment signals.
NOTE: When the automatic mode is run in the normal mode (searching for bugs) signals
labeled as friendly are ignored unless the signal strength level has deviated by more than
5%.

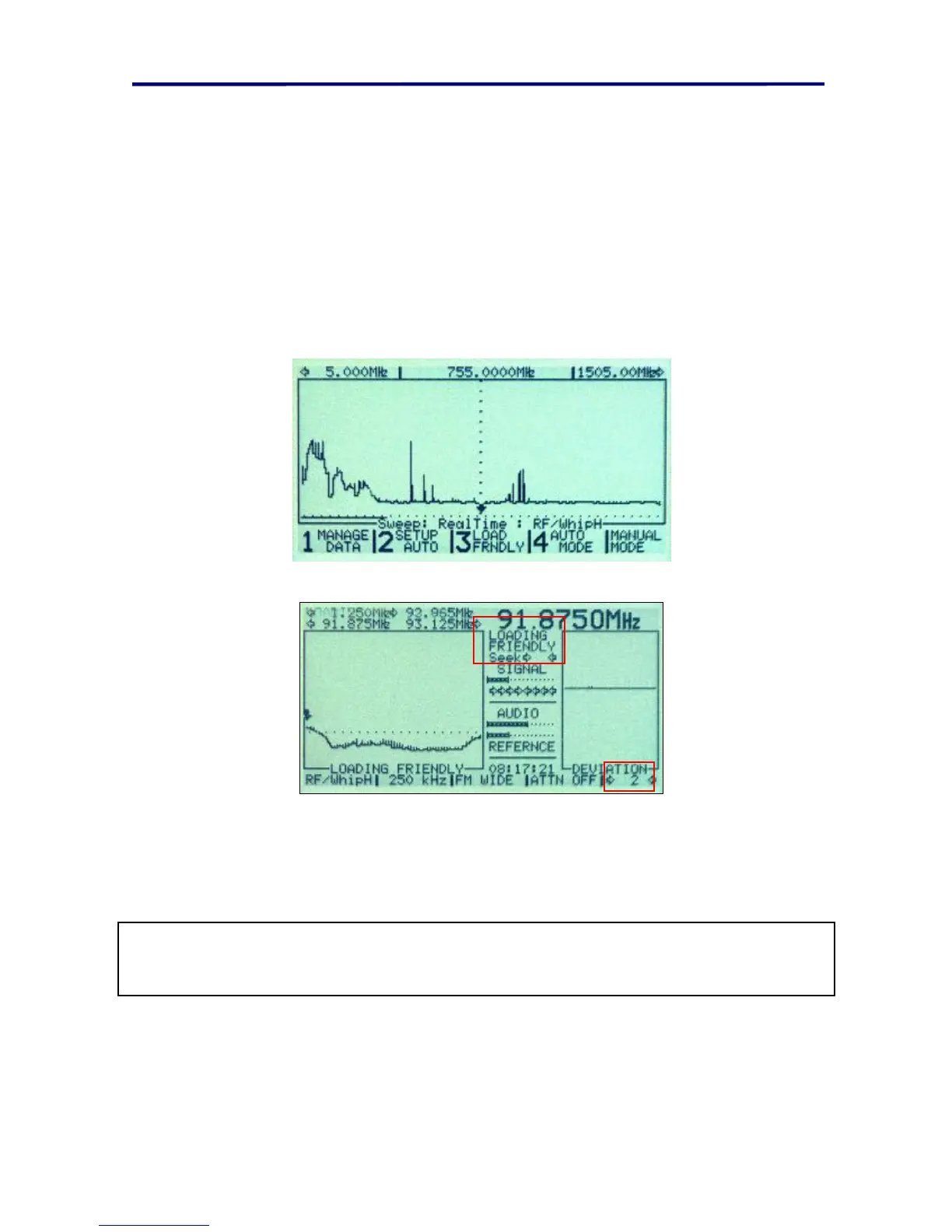

FIGURE 56 AUTO MODE START MENU
FIGURE 57 AUTO MODE RUNNING LOAD FRIENDLY (2 CYCLES COMPLETED)
When running in the Load Friendly Mode, the display indicates “LOADING FRIENDLY”
near the center of the display between the graphs.
WARNING: The load friendly process should never be executed in the target sweep
environment to prevent accidentally loading a bugging signal as a friendly signal.
